313T/MD MEDICAL TABLET

Slim, Antimicrobial, ANSI/AAMI ES60601-1 Certified Tablet for Efficient Operations

The 313T/MD Medical Tablet features the integration of a brilliant 13.3" capacitive touch screen and a Intel® Core™ i series processor within a slim, durable package. With built-in front/back cameras and Wi-Fi as well as optional barcode scanner, this robust tablet offers health professionals an effective tool to monitor, record and retrieve patient information. With its large, vivid display, the 313T/MD Medical Tablet shows a wide work area and detailed application interface to enhance user experience and workflow.

Product Configurator

Features

  • 13.3” full-HD LCD display with capacitive touch, digital pen support
  • Intel® Core™ i series processor
  • Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu operating system
  • NIST compliant BIOS available
  • Built-in front and back cameras
  • ANSI/AAMI ES60601-1 certified with antimicrobial enclosure
  • High capacity, hot-swappable battery pack

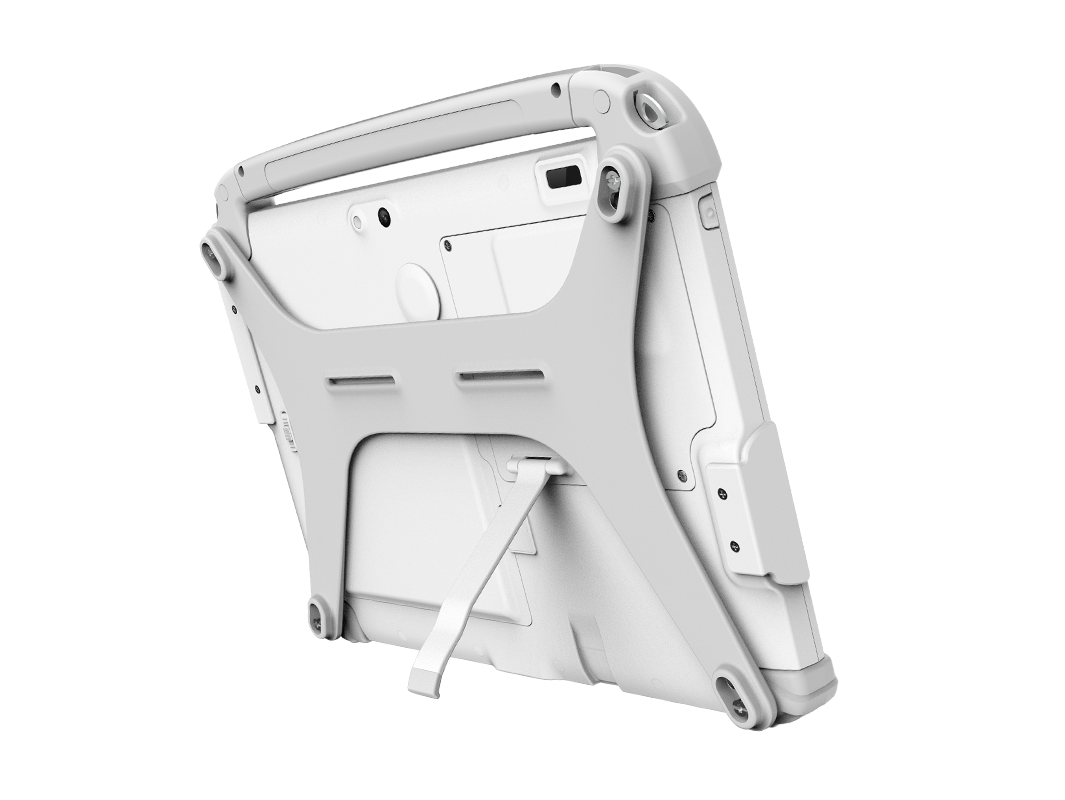

  • Built-in foldable tabletop stand and optional handle

Major Options

  • 2D barcode scanner; reads 1D also
  • NFC/RFID Reader

Specifications

SYSTEM
  • CPU

    Intel® Core™ i5-1135G7, 4-Core, up to 4.2 GHz
    Intel® Core™ i7-1165G7, , 4-Core, up to 4.7 GHz

  • RAM

    8GB to 32GB

  • Storage

    256GB to 2TB Flash

  • Operating System

    Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu

  • NIST Compliance

    NIST Compliant BIOS Available

  • Display

    13.3” LED-backlit Touchscreen

  • Display Resolution

    1920 x 1080

  • WLAN

    Wi-Fi 802.11ax, 2.4/5 GHz Dual Band

  • Control Switch and Buttons

    1 Power Button, 1 Trigger Button, 3 Programmable Buttons

  • Microphone

    Built-In Microphone

  • Speaker

    Built-In Speaker

  • Cameras

    5 MP Front Camera & 8 MP Back Camera

I/O INTERFACES
  • USB Port

    1 x USB 3.0, 2 x USB 2.0

  • Headset Jack

    1 (3.5 mm)

  • Ethernet Port

    1 (RJ45)

  • HDMI-out

    1

  • DC-In

    1

MECHANICAL AND ENVIRONMENTAL
  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 19V DC, 3.42A

  • Battery Pack

    Hot-Swappable Battery (5400mAh)

  • Enclosure

    ABS + PC Plastic and Magnesium-Aluminum Alloy; Antimicrobial Enclosure

  • Dimensions (H x W x D)

    10.1 x 13.2 x 0.8 in/256 x 335 x 21 mm

  • Weight

    3.97 lbs/1.8 kg

  • Regulatory

    FCC/IC, CE/CB, RCM, ANSI/AAMI ES60601-1

  • Temperature

    Operation: 0°C ~ 40°C (32°F ~ 104°F); Storage: -55°C ~ 70°C (-67°F ~ 158°F)

  • Humidity

    0% ~ 90% Non-Condensing

MAJOR OPTIONS SPECS
  • BARCODE SCANNER
  • 2D Barcode Scanner (Reads 1D & 2D)

Accessories

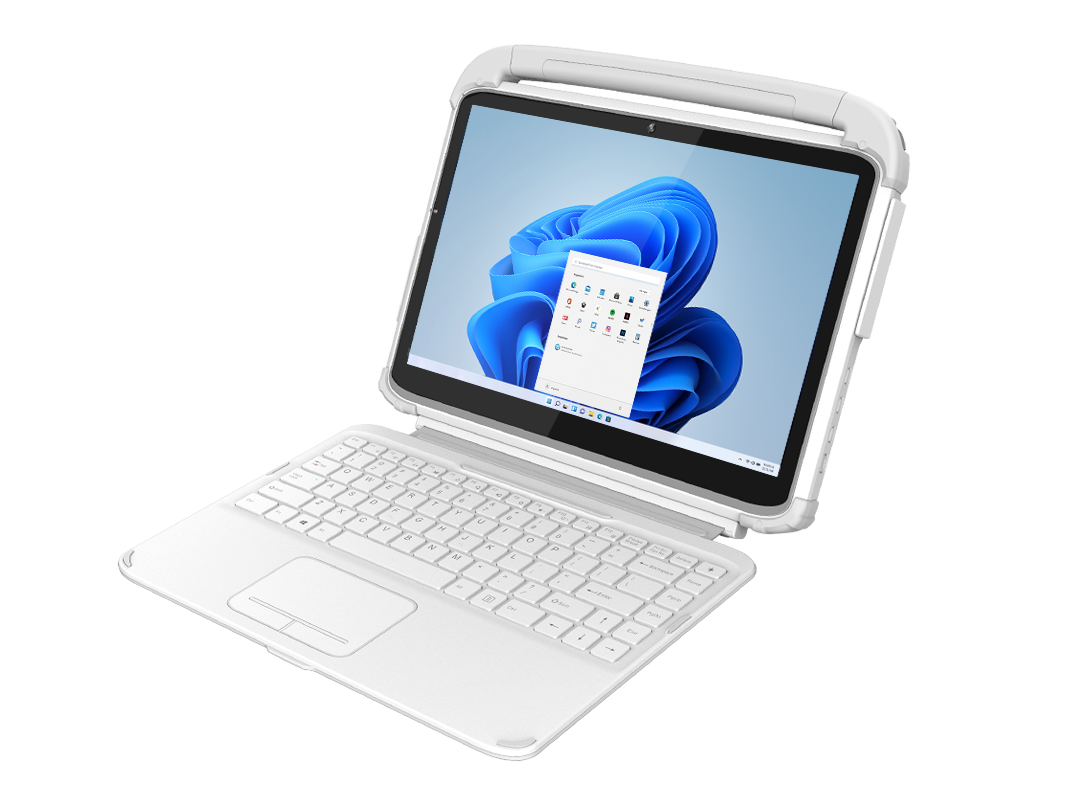

    Slim Detachable Keyboard
    Slim Detachable Keyboard

    Designed to connect to 300/MD tablet without switching and pairing.

    6-Bay External Battery Charger
    Battery Gang Charger

    Simultaneously charge 6 external batteries.

    AC/DC Power Adapter with Power Cord
    AC/DC Power Adapter with Power Cord

    Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the device Cradle. (Choice of North America, UK or EU power cord).

    External Battery Pack
    Battery Pack

    Hot swappable, 60W or 90W.

    Digital Pen
    Digital Pen

    Dimension: 9.7mm x 140.7mm; Weight: <25g. Battery: 1 AAAA.

    Tablet Mount Cradle
    Tablet Mount Cradle

    Offers Tablet storage and security with power supply and I/O ports.

    Keyboard Mounting Kit for Vehicle/Wall Mount Cradle
    Keyboard Mounting Kit for Vehicle/Wall Mount Cradle

    Designed to be attached with the Wall/Vehicle Mount Cradle. The Keyboard Mounting Kit can be folded up when not in use.

    Automobile Power Adapter by LIND
    Automobile Power Adapter by LIND

    Output voltage 65W/ 19V. Input: 11-16V DC.

    Digital Pen
    10.1”/11.6”/13.3” Screen Protector

    User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.

    Shoulder Strap for Tablets
    Shoulder Strap for Tablets

    Padded for comfort, provides convenient mobile operation, strap is adjustable and can be attached to the Rubber Grips.

    X-Handstrap
    X-Handstrap

    Designed to securely hold the Tablet. Made of soft plastic, easy to clean. For left- or right-handed users.
