DT362GL Handheld Rugged Tablet

Slim, Rugged, Multi-functional Wireless Computing

The DT Research DT362GL Handheld Rugged Tablet features the integration of a brilliant 6" capacitive touchscreen and a high performance yet energy efficient processor within a slim, lightweight, durable package. With built-in Wi-Fi and a smart card reader, as well as optional back camera barcode scanner, GNSS, NFC, and UHF RFID reader, this robust tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810H, MIL-STD 461G and optional C1D2 certification, the DT362GL Handheld Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Product Configurator

Features

  • 6” LED-backlit touchscreen, digital pen support
  • Intel® Pentium® Silver 4-core processor
  • Microsoft® Windows® 10/11 IoT Enterprise operating system
  • NIST compliant BIOS available
  • IP65-rated for water and dust resistance
  • MIL-STD-810H for shock and vibration protection
  • MIL-STD-461G for EMI and EMC tolerance
  • Hot-swappable battery pack
  • Built-in smart card/CAC reader

Major Options

  • NFC or UHF RFID Reader
  • Back Camera
  • Barcode Scanner or Long Range Baracode Scanner
  • GPS Module
  • C1D2 Groups A, B, C and D

Specifications

System
  • CPU

    Intel® Pentium® Silver 4-Core, 1.10GHz (up to 2.70GHz)

  • RAM

    8GB

  • Storage

    256GB flash

  • Operating System

    Microsoft® Windows® 10/11 IoT Enterprise

  • NIST Compliance

    NIST Compliant BIOS Available

  • Display

    6” LED-backlit (350 nits) touchscreen

  • Display Resolution

    720 x 1440

  • WLAN

    Wi-Fi 802.11ac, 2.4/5 GHz Dual Band

I/O INTERFACES
  • USB Port

    1 x USB Type-C (data transmitting and charging; data transmitting only available in one insertion direction)

  • Smart Card/CAC Reader

    Full Slot (Reads ISO 7816 T=0, T=1); 1.8/3/5V Smart Card

  • Control Switch and Buttons

    1 x Power Button, 2 x Trigger Buttons

MECHANICAL AND ENVIRONMENTAL
  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 20V DC, 3.25A

  • Battery Pack

    Hot-Swappable Battery (3100mAh)

  • Enclosure

    ABS + PC Plastic

  • Dimensions (H x W x D)

    7.6 x 3.7 x 1.2 in/192 x 95 x 31 mm

  • Weight

    1.1 lbs/485 g

  • Durability

    IP65, MIL-STD-810H and MIL-STD-461G
    Class 1, Division 2, Groups A, B, C and D (Optional)

  • Regulatory

    FCC Class B, RoHS Compliant

  • Temperature

    Operation: -10°C ~ 50°C (14°F ~ 122°F );
    Storage: -50°C ~ 70°C (-58°F ~ 158°F)

  • Humidity

    0% ~ 90% Non-Condensing

MAJOR OPTIONS SPECS
  • CAMERA

    8 MP Back Camera

  • Long Range Barcode Scanner

    Read range of 4 in (10cm) to 66 ft. (20.11m)

  • BARCODE SCANNER

    2D Barcode Scanner (Reads 1D & 2D)

  • NFC/RFID READER

    HF 13.56 MHz, ISO 15693, 14443A(B) & 18000-3 Mode 1

  • UHF RFID READER

    865 – 928MHz, EPCglobal Class 1 Gen 2/ ISO 18000-6C; Reading Distance of 16 ft (4.87m) with the Built-In ThingMagic micro Module & Embedded Antenna; Reading Distance of 30 ft (9.1m) with Trigger Grip

  • GNSS MODULE

    GPS Module with Concurrent Reception of GPS & GLONASS; Industry-Leading - 167 dBm Navigation Sensitivity

Accessories

    Digital Pen
    Digital Pen

    Dimensions: 9.7 mm x 140.7 mm; Weight: <25g; Battery: 1 AAAA.

    Desktop Charging Cradle
    Desktop Charging Cradle

    Charge one handheld tablet and one battery pack; ports for Power, USB, video-out, and Ethernet.

    4-Bay System Gang Charger
    4-Bay System Gang Charger

    Multi-bay charger, capable of charging up to 4 tablets simultaneously.

    6-Bay Battery Gang Charger
    6-Bay Battery Gang Charger

    Multi-bay charger, capable of charging up to 6 battery packs simultaneously.

    Trigger Grip for Barcode Scanner.png
    Trigger Grip for Barcode Scanner

    Supports to trigger the barcode scanner module.
    (Not compatible with long range 2D scanner SKU.)

    Trigger Grip for UHF RFID Reader and Barcode Scanner
    Trigger Grip for UHF RFID Reader

    Supports 30 feet UHF RFID Reader read distance.

    Charging Cradle for UHF RFID Reader Trigger Grip
    Charging Cradle for UHF RFID Reader Trigger Grip

    Supports to charge the trigger grip with DT362 tablet.

    Charging Cradle for UHF RFID Reader Trigger Grip
    Charging Cradle for Trigger Grip

    Supports to charge the trigger grip (without the antenna) with DT362 tablet.

    Trigger Grip for Barcode Scanner.png
    Trigger Grip for Long Range Barcode Scanner (Without 6dB antenna)

    Supports to trigger the 2D barcode scanner module.

    Trigger Grip for UHF RFID Reader and Barcode Scanner
    Trigger Grip for Long Range Barcode Scanner (With 6dB antenna)

    Supports to trigger the 2D barcode scanner module.

    Battery Packs
    Battery Packs

    3100mAh battery packs.

    AC/DC Power Adapter with Power Cord
    AC/DC Power Adapter with Power Cord

    Facilitates Tablet operation or battery recharge. USB Type-C connector.

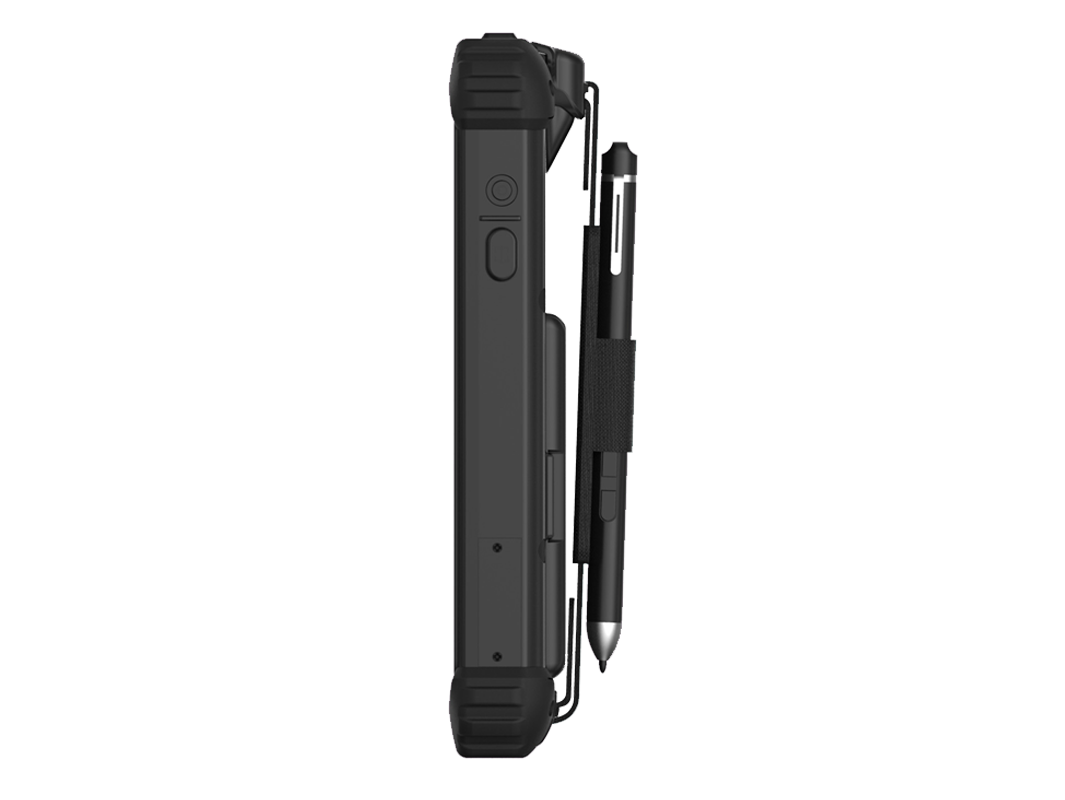

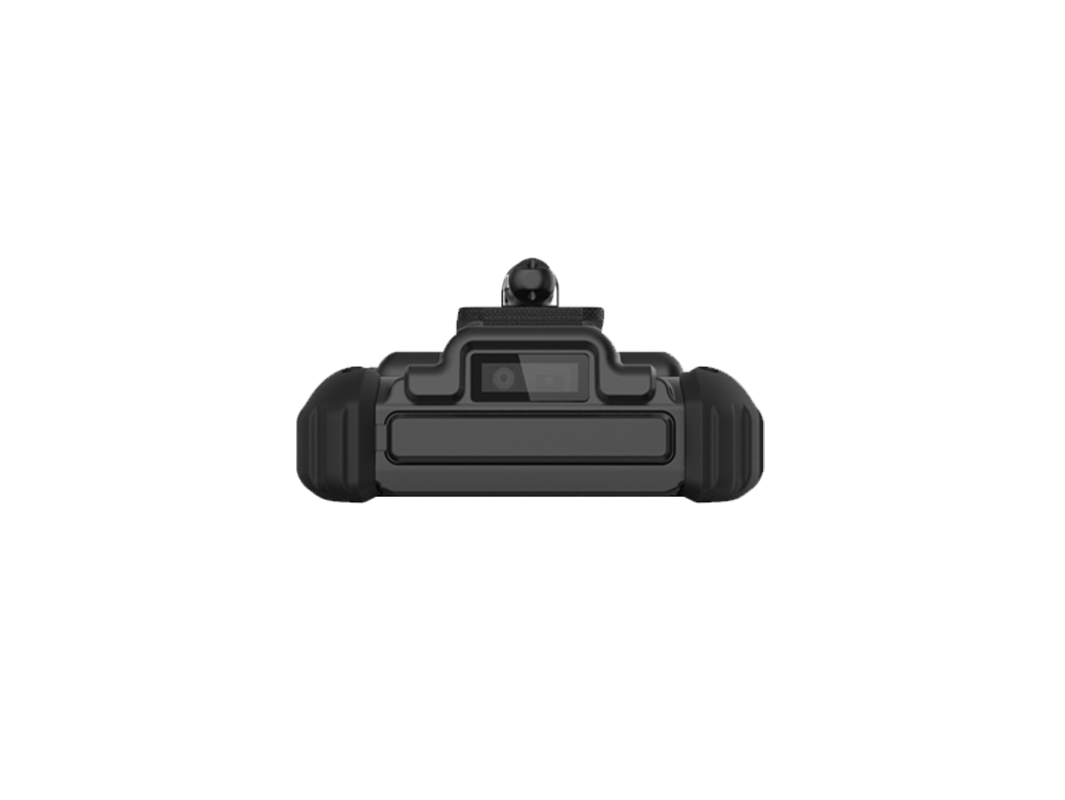

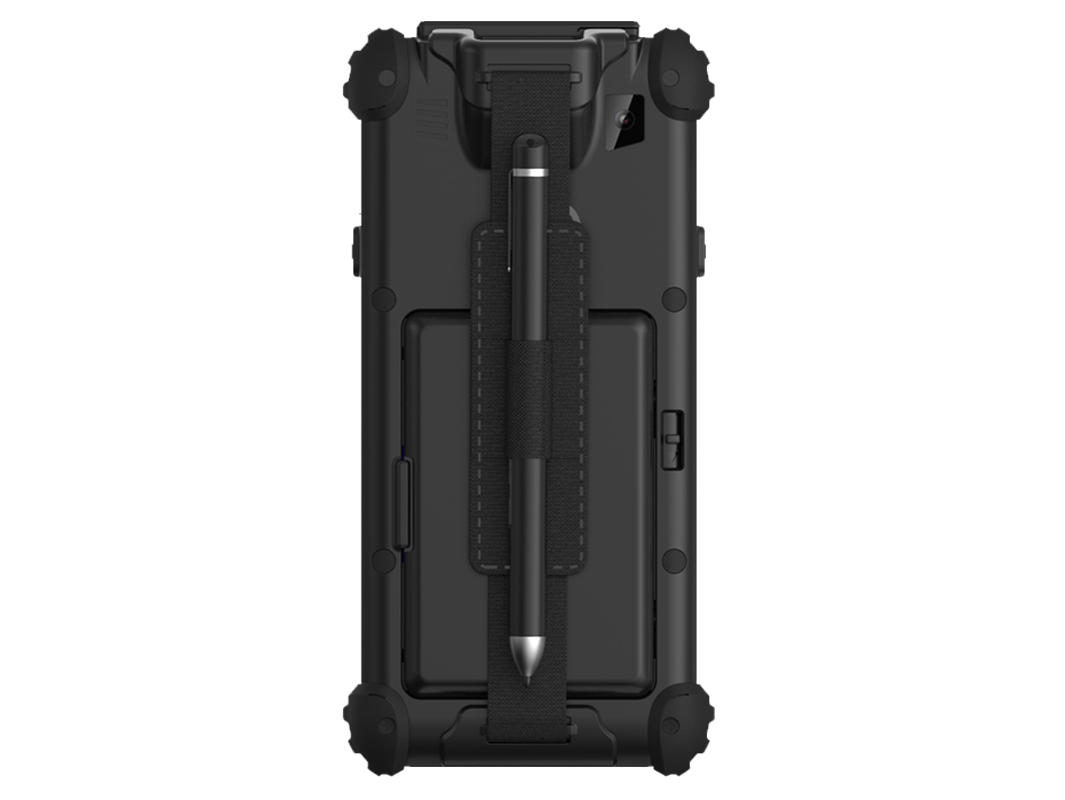

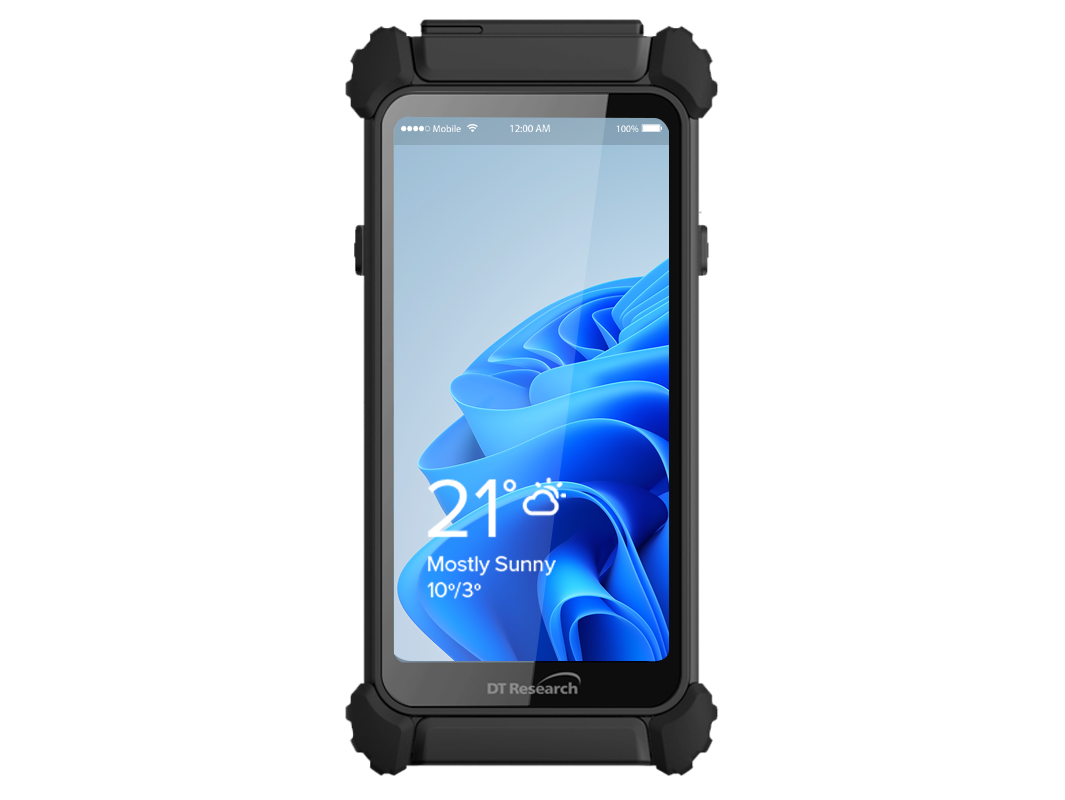

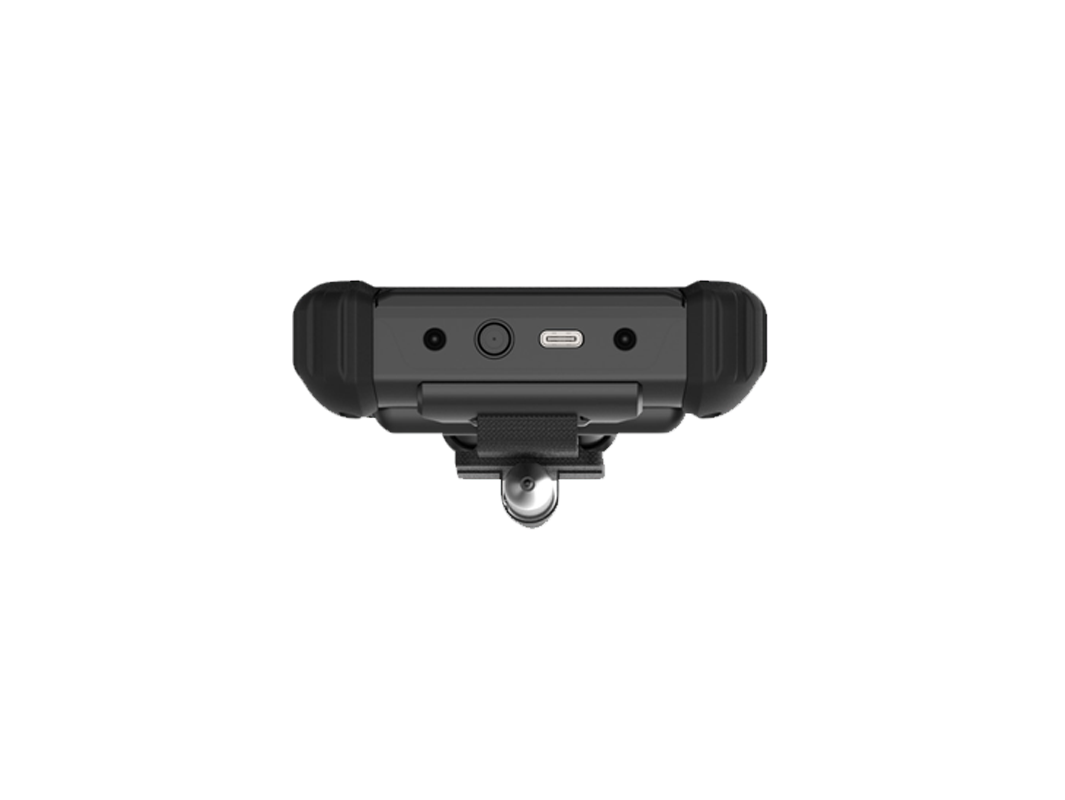

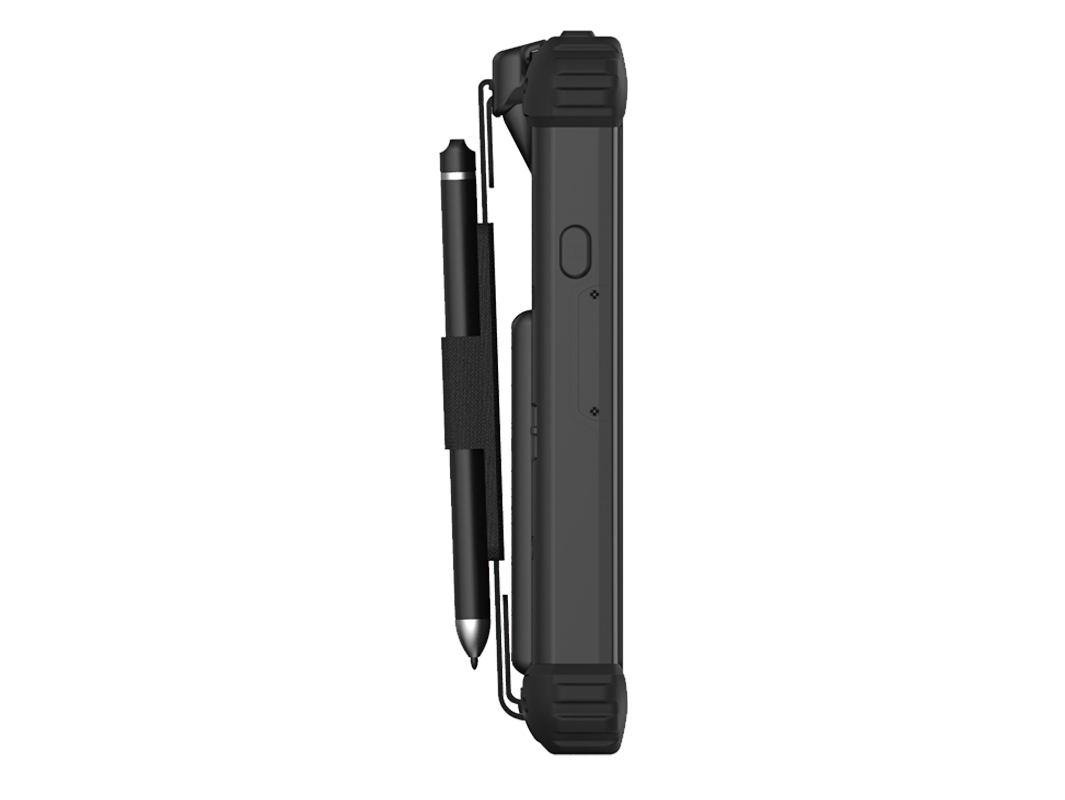

Gallery
