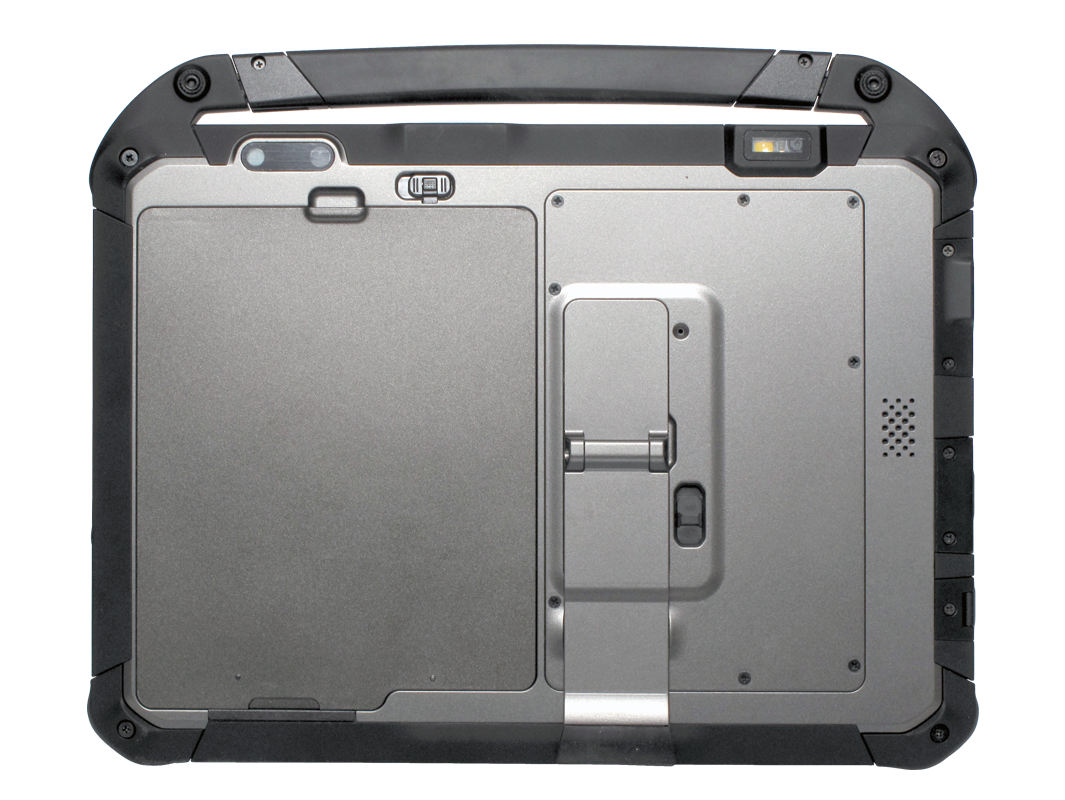

DT302RP Rugged Tablet

Slim, Rugged, Multi-functional Wireless Computing

The DT302RP Rugged Tablet features the integration of a sunlight readable 10.1” capacitive touchscreen and a high performance, energy-efficient Intel_® Core™ i processor within a slim, lightweight, durable casing. With built-in Wi-Fi and optional data capture modules, smart card/CAC reader, this robust tablet offers seamless information capture and transmission for optimal workflow. IP65 rated, MIL-STD-810H and MIL-STD-461G certified with a wide temperature range, the DT302RP Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Product Configurator

Features

10.1" LED-backlit, sunlight-readable (800 nits) touchscreen LCD , digital pen support
Intel_® Core™ processor
Microsoft_® Windows_® 10/11 IoT Enterprise operating system
NIST compliant BIOS available
Hot-swappable battery for 24/7 operation
Built-in microphone and speaker
Antimicrobial coating
Detachable keyboard option for 2-in-1 applications
IP65 Rated, MIL-STD-810H/461G certified
Quick access SSD
Energy Star 8.0 certified

Major Options

5 MP front camera and 8 MP back camera
2D barcode scanner (reads 1D and 2D)
GPS module
4G LTE/5G
Smart card/CAC reader

*4G LTE/5G module, 2D scanner and GPS cannot be built onto same device.

Specifications

System

CPU

Intel_® Core™ i7-1355U, 10-core, up to 5.0 GHz
Intel_® Core™ i5-1335U, 10-core, up to 4.6 GHz
RAM

8GB to 32GB
Storage

512GB to 2TB flash
*Support quick access SSD function to easily replace the SSD without opening the back cover
Operating System

Microsoft_® Windows_® 10/11 IoT Enterprise
NIST Compliance

NIST compliant BIOS available
Display

10.1" LED-backlit, sunlight-readable (800 nits) touchscreen
Display Resolution

1920 x 1200
Microphone

Built-in microphone
Speaker

Built-in 2W speaker

Network Interface

WLAN

Wi-Fi 802.11ax, 2.4/5/6 GHz dual band
BT

5.2

I/O Ports

USB Port

1 x USB 3.0, 1 x latest USB/charging
Headset Jack

1 (3.5 mm)
Ethernet Port

1 x Ethernet 10/100/1000MB Base-T LAN
DC-In

1
Switches and Buttons

1 x power button, 2 x brightness buttons, 5 x programmable buttons

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 to 240V AC; Output: 19V DC, 3.42A
Battery Pack

43W Hot-swappable battery (11.4V, 3800mAh)
(Optional) 60W Hot-swappable battery (11.4V, 5400mAh)
(Optional) 90W Hot-swappable battery, (11.4V, 8000mAh)
Enclosure

ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating
Dimensions (H x W x D)

7.7 x 10.71 x 0.79 in/195.6 x 272 x 20 mm
Weight

3 lbs/1.32 kg
Durability

IP65, MIL-STD-810H and MIL-STD-461G certified
Regulatory

CE, FCC Class B, RoHS, Energy Star 8.0
Temperature

Operation: -10°C to 60°C (14°F to 140°F);
Storage: -50°C to 70°C (-58°F to 158°F)
*For battery optimal functionality and performance, the recommended usage temperature range is from 0°C to 50°C (32°F to 122°F)
*When use DT302 with AC power adapter, to comply with safety regulation, the recommended usage temperature is from 0°C to 40°C
Humidity

0% to 90% Non-condensing

MAJOR OPTIONS SPECS

Barcode Scanner

2D barcode scanner (reads 1D and 2D)
Camera

5 MP front camera and 8 MP back camera
GNSS

GPS
Mobile Broadband

4G LTE/5G
Smart Card/CAC Reader

Half slot (supports ISO 7816 T=0, T=1); 1.8V/3V/5V smart card

Accessories

Slim Detachable Keyboard

Slim and lightweight with magnetic hinge to effortlessly attach/detach to the DT302RP rugged tablet.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Digital Pen

Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

Desktop Charging Cradle

With I/O ports supporting power, USB, COM, and Ethernet.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

VESA Mounting Bracket

Offers Tablet storage and security.

Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack "offline" without affecting tablet use.

Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
