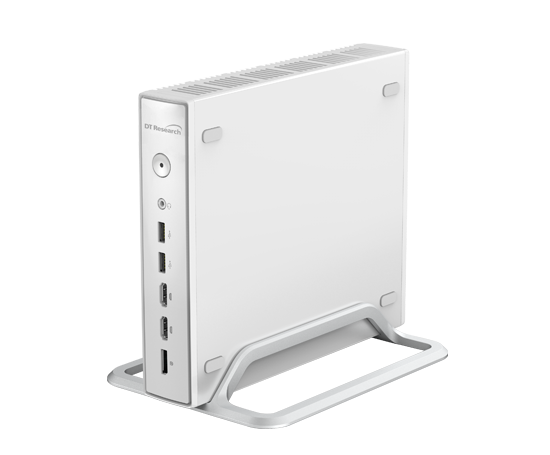

139M Medical Micro PC

Compact, durable, fanless for healthcare applications

M139CS

The DT Research 139M Medical Micro PC offers the integration of a high performance yet energy-efficient Intel® Pentium® Gold or Core™ i computing platform in a fanless, robust and compact design. The anti-microbial enclosure is complemented by display outputs, USB, RS232, networking and audio ports, making this Medical Micro PC ideal for space-saving and clean-sensitive healthcare applications.

Product Configurator

Features

  • Intel® Pentium® Gold or Core™ i processor
  • Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu operating system
  • Fanless, compact and robust design
  • Dual SSD slots, supports RAID 0/RAID 1
  • Dual RAM slots, up to 64GB
  • ANSI/AAMI ES60601-1 certified with antimicrobial enclosure
  • NIST compliant BIOS available
  • Multiple video outputs – HDMI x 2 and Display Port x 1
  • VESA compatibility for easy installation and deployment

Major Option

  • Internal 802.11 wireless adapter with dual antennas

Specifications

System
  • CPU

    Intel® Pentium® Gold-G6400T, 2-core, 3.4 GHz
    Intel® Core™ i5-10500T, 6-core, 2.3 GHz (up to 3.8 GHz)
    Intel® Core™ i5-10600T, 6-core, 2.4 GHz (up to 4.0 GHz)
    Intel® Core™ i7-10700T, 8-core, 2.0 GHz (up to 4.5 GHz)
    Intel® Core™ i9-10900T, 10-core, 1.9 GHz (up to 4.6 GHz)

  • RAM

    8GB to 64GB (Dual-Slot)

  • Storage

    256GB or 4TB Flash (Dual-Slot, Supports RAID 0/RAID 1)

  • Operating System

    Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu

  • Network Interface

    10/100/1000 MB BaseT LAN; Optional Wi-Fi 802.11ax, 2.4/5 GHz Dual Band

I/O PORTS
  • HDMI

    2

  • DisplayPort

    1

  • Audio Jack

    1

  • USB 3.0 Port

    4

  • COM Port

    4

  • Ethernet

    2 (RJ45)

  • DC-In

    1

  • WLAN

    2 x Optional Wi-Fi Dipole Antenna

  • Kensington Lock

    1

MECHANICAL AND ENVIRONMENTAL
  • Fan/ Fanless

    Fanless

  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 15V to 20V DC

  • Enclosure

    Aluminum Alloy with Antimicrobial Enclosure

  • Dimensions (H x W x D)

    8 x 1.7 x 9.1 in/202 x 43.5 x 232 mm (Without the Tabletop Stand)

  • Weight

    4.6 lb/2.1 kg (Without the Tabletop Stand)

  • VESA-compliant Mounting

    75 x 75 mm/100 × 100mm

  • Regulatory

    ANSI/AAMI ES60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, CE-EMC, CE-RED, IEC 62368-1, RCM, CCC

  • Temperature

    Operation: -10°C to 50°C (14°F to 122°F); Storage: -20°C to 60°C (-4°F to 140°F)

  • Humidity

    0% – 90% Non-Condensing

Accessories

    Hot-swappable Battery
    Hot-swappable Battery

    DR202; 90W, 8250mAh battery.

    4-Bay Gang Charger
    6-Bay Gang Charger

    Available for charging up to six DR202 batteries.

    Battery Holster
    3-Slot Battery Holster

    Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).

    Battery Holster
    Medical Grade Monitor

    Integrates a 22” or 24” screen and hot-swappable batteries in a slim, mountable and antimicrobial package to facilitate the system integration for healthcare applications.

    VESA Mounting Bracket

    Supports VESA standard mounting options (75 mm x 75 mm or 100 mm x 100 mm)
