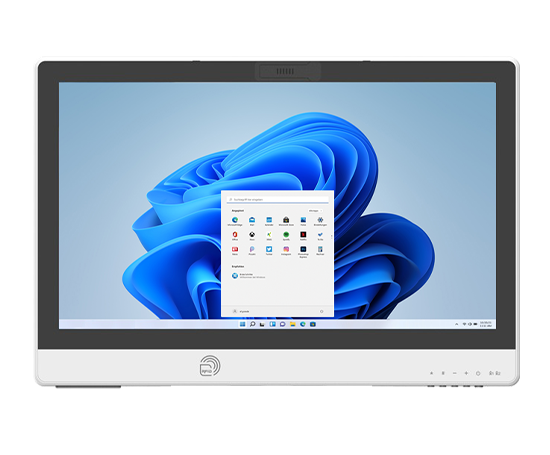

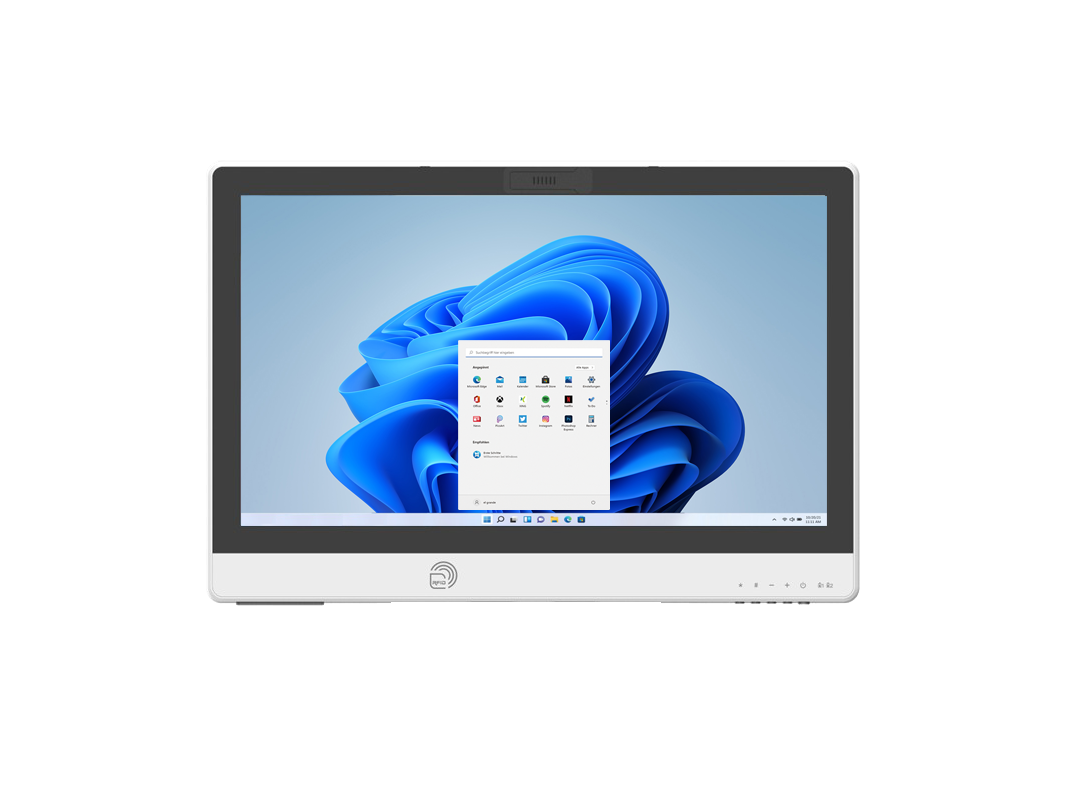

DT573LA
All-in-One Computer with Integrated Swappable Batteries for Point-of-Care Applications
Powered by high-performance Intel® Arrow Lake-U processors, the DT573LA medical grade All-in-One computers feature 17.3” high-resolution capacitive multi-touch displays, providing a vivid viewing area for enhanced readability and efficient operation. Optional dual hot-swappable batteries ensure uninterrupted workflow, while the VESA-standard mounting design allows for easy installation and flexible placement. Smart card reader, front camera, and NFC/RFID data capture options further streamline point-of-care processes. Designed for use in hospitals, clinics, and clean-sensitive labs, the DT573LA medical grade All-in-One computers support a variety of pointof- care applications. A range of accessories—including batteries, multi-battery chargers, desktop stands, and cart battery holsters—enhance usability and improve productivity.
Product ConfiguratorFeatures
- 17.3” high-resolution multi-touch
- Intel® Core™ Ultra processor
- Microsoft® Windows® 11 IoT Enterprise or Ubuntu OS
- Fanless, space-saving all-in-one design with antimicrobial enclosure
- VESA compatibility to maximize installation flexibility
- Integrated dual hot swappable batteries
- IP65 sealed front bezel and IP54 back cover enclosure
Major Options
- IR camera
- NFC/RFID reader
- Smart card/CAC reader
- Wi-Fi
- Battery
- 5G
Specifications
System
-
CPU
Intel® Core™ Ultra 5 225U, 12-core, up to 4.8 GHz
Intel® Core™ Ultra 7 255U, 12-core, up to 5.2 GHz -
RAM
8GB/16GB M.2 PCIe
-
Storage
SO-DIMM DDR5 256GB/512GB/1TB
-
Operating System
Microsoft® Windows® 11 IoT Enterprise or Ubuntu
-
Display
17.3" multi-touch
-
Display Resolution
1920 x 1080
-
Trusted Platform Module
TPM 2.0
-
Microphone
Microphone array
-
Speaker
Build-in speaker
-
Buttons
1 x power button, 4 x functional buttons
Network Interface
-
WLAN
IEEE 802.11be (Wi-Fi 7), 2.4/5/6 GHz three band (optional)
-
BT
5.4

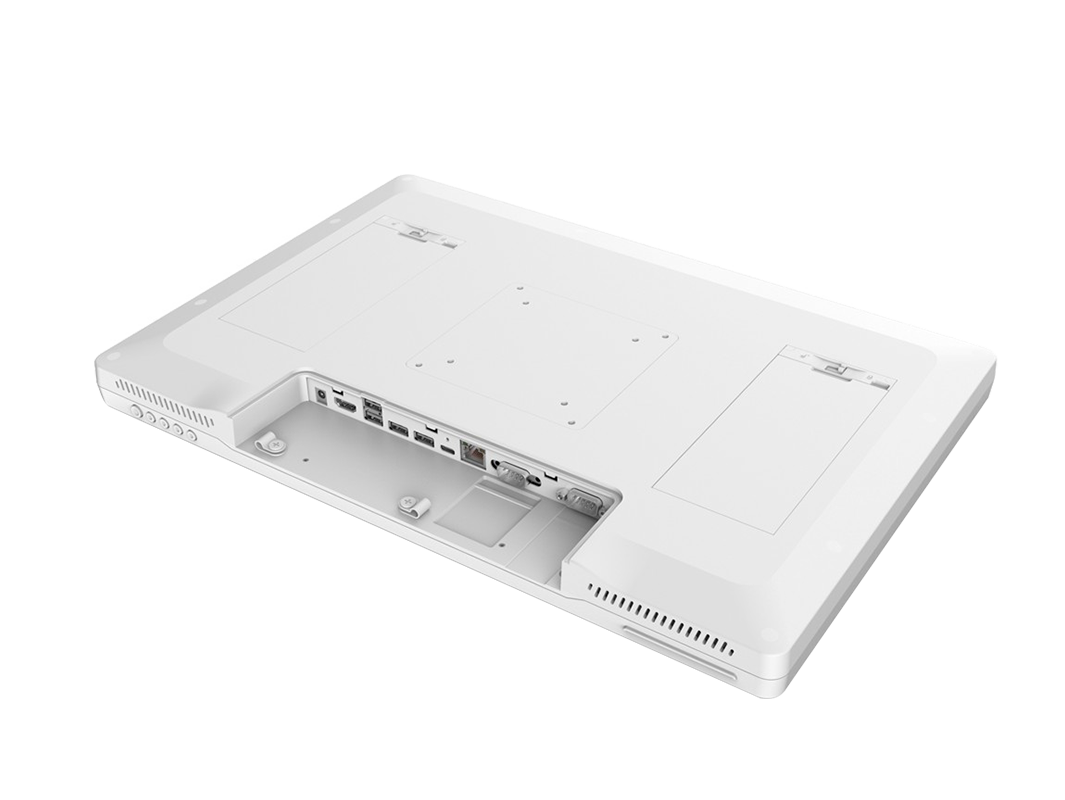

I/O Ports
-
USB Port
4 x USB (Type-A), 1 x latest USB/charging (only 5V/2.9A charging support)
-
COM Port
2
-
HDMI Port
1
-
Ethernet Port
1 x Ethernet 2.5 Gigabit base-T LAN
-
DC-in Jack
1
-
POAG
1 (optional)
MECHANICAL AND ENVIRONMENTAL
-
Fan/Fanless
Fanless
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 19V DC, 3.78A
-
Battery Pack
2 x Li-Ion batteries (7.6V, 23.56W)
2 x Li-Ion batteries (10.9V, 70.88W) (optional) -
Enclosure
ABS + PC plastic with antimicrobial coating
-
Dimensions (H x W x D)
11.47 x 16.94 x 1.34 in/291.35 x 430.15 x 34 mm
-
Weight
7.275 lbs/3.3 kg
-

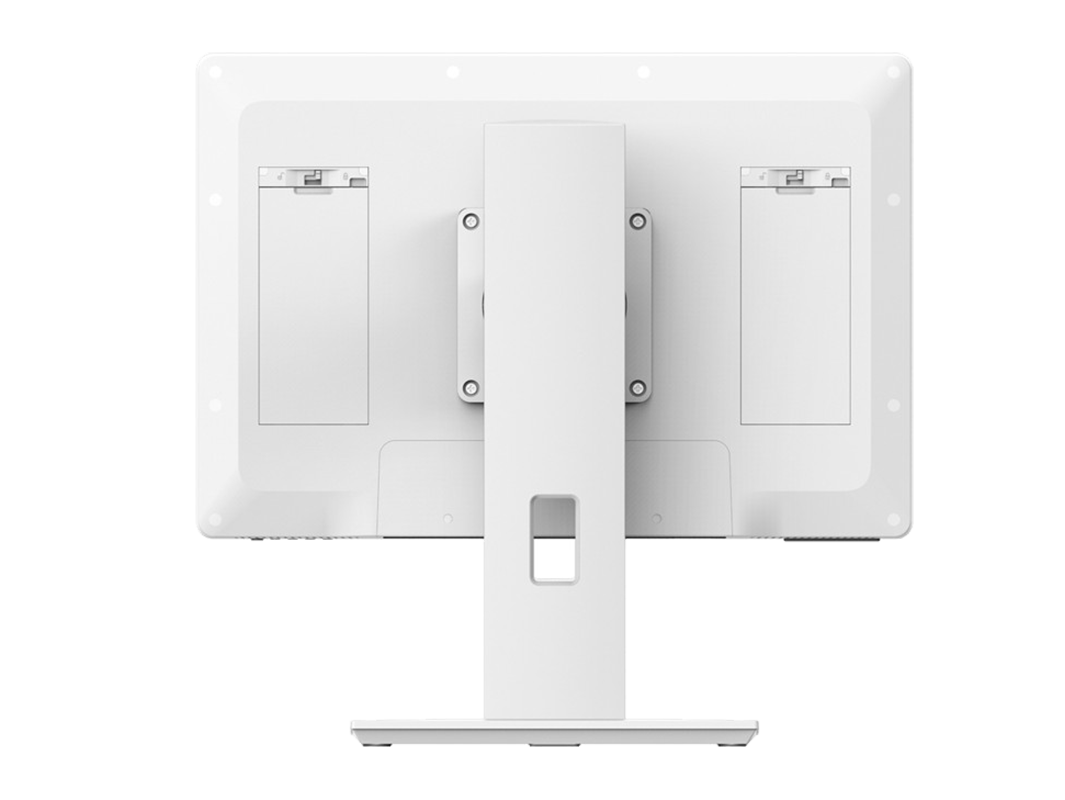

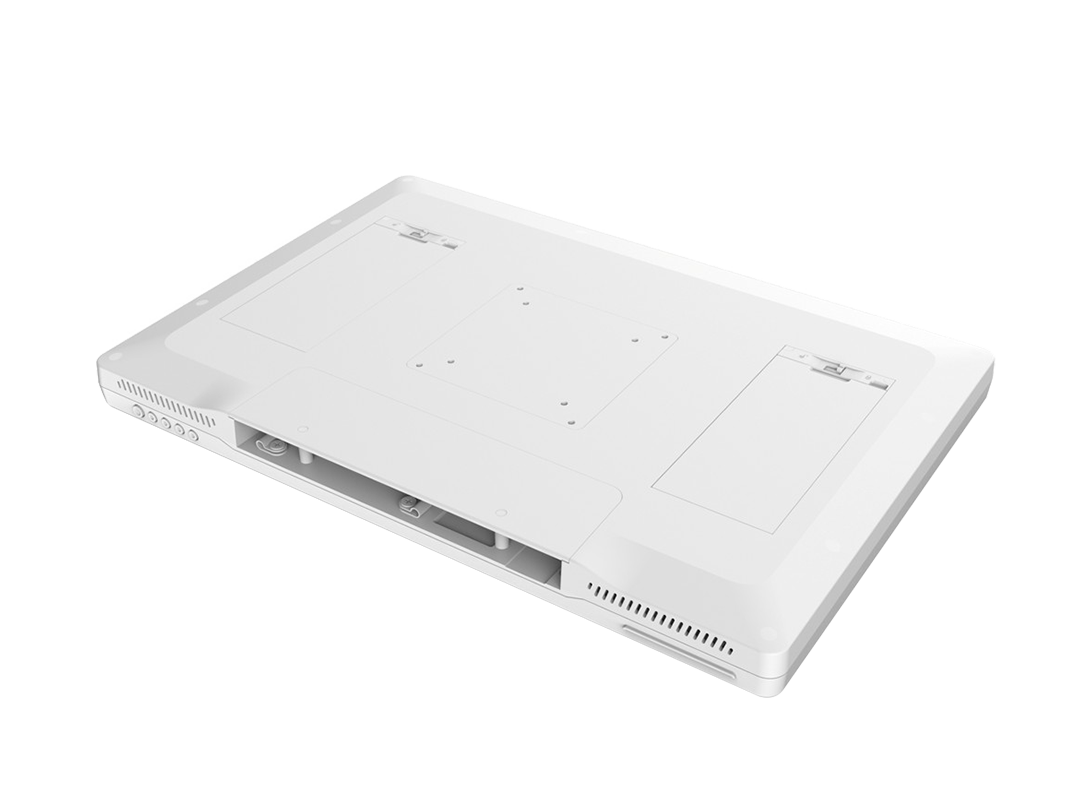

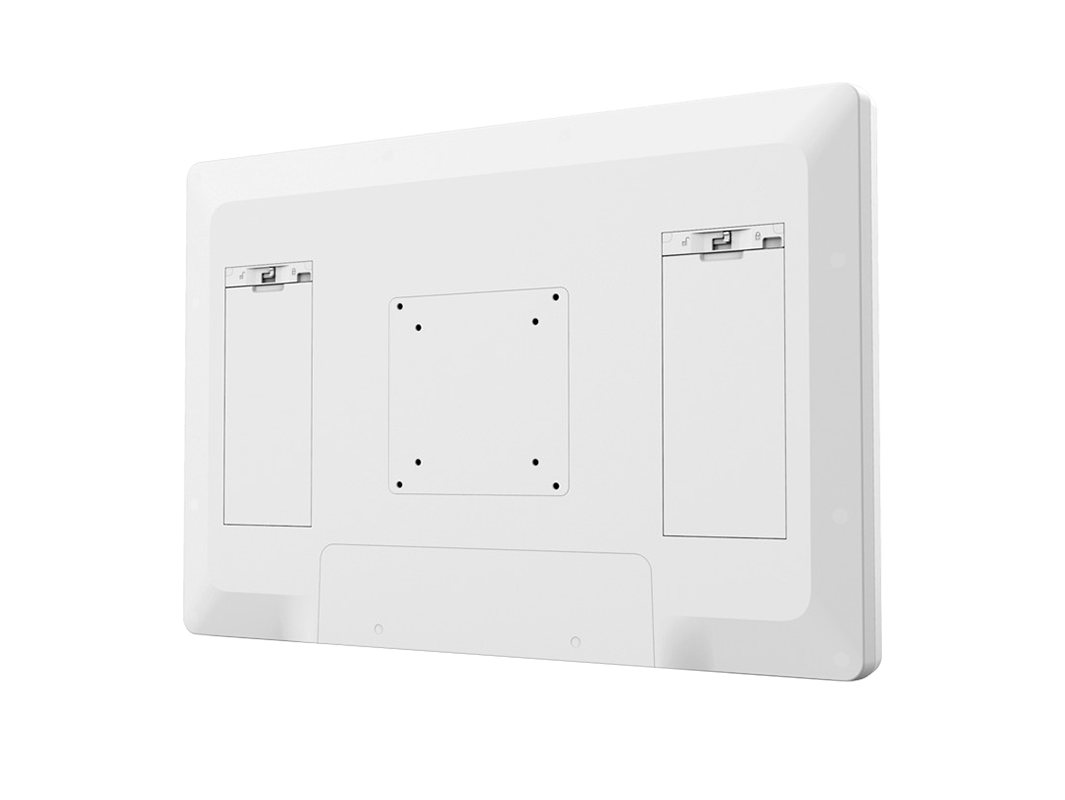

VESA Mount
100 x 100/75 x 75 mm
-
Water Resistance
IP65 sealed front bezel and IP54 back cover
-
Regulatory and Safety Certifications
Medical CE, FCC Part 15B & Part 18B, RCM, IC, RoHS
-
Temperature
Operation: 0°C to 40°C (32°F to 104°F); Storage: -20°C to 60°C (-4°F to 140°F)
-
Humidity
0% to 90% non-condensing
MAJOR OPTIONS SPECS
-
Camera
IR camera
-
NFC/RFID Reader
Dual frequency (reads 125 KHz and 13.56 MHz credentials)
-
Smart Card/CAC Reader
Half-slot (reads ISO 7816 T=0, T=1 and 1.8/3/5V smart card)
-
Wi-Fi
IEEE 802.11be (Wi-Fi 7), 2.4/5/6 GHz three band
-
Mobile Broadband
5G
-
Battery
2 x Li-Ion batteries (10.9V, 70.88W)
Accessories
Medical Grade AC Adapter with Power Cord
Facilitates system operation and/or battery recharge.
Battery Gang Charger
Simultaneously charge 4 external batteries..
Battery 23.56W Packs
Battery 70.88W Packs

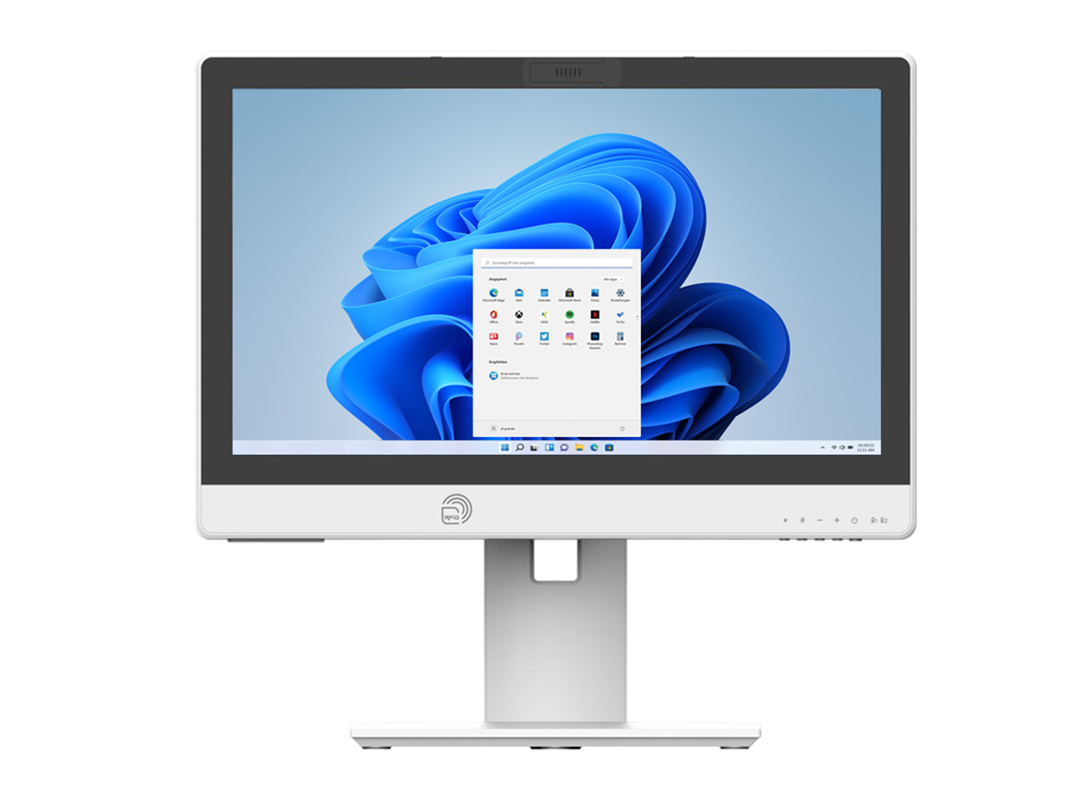

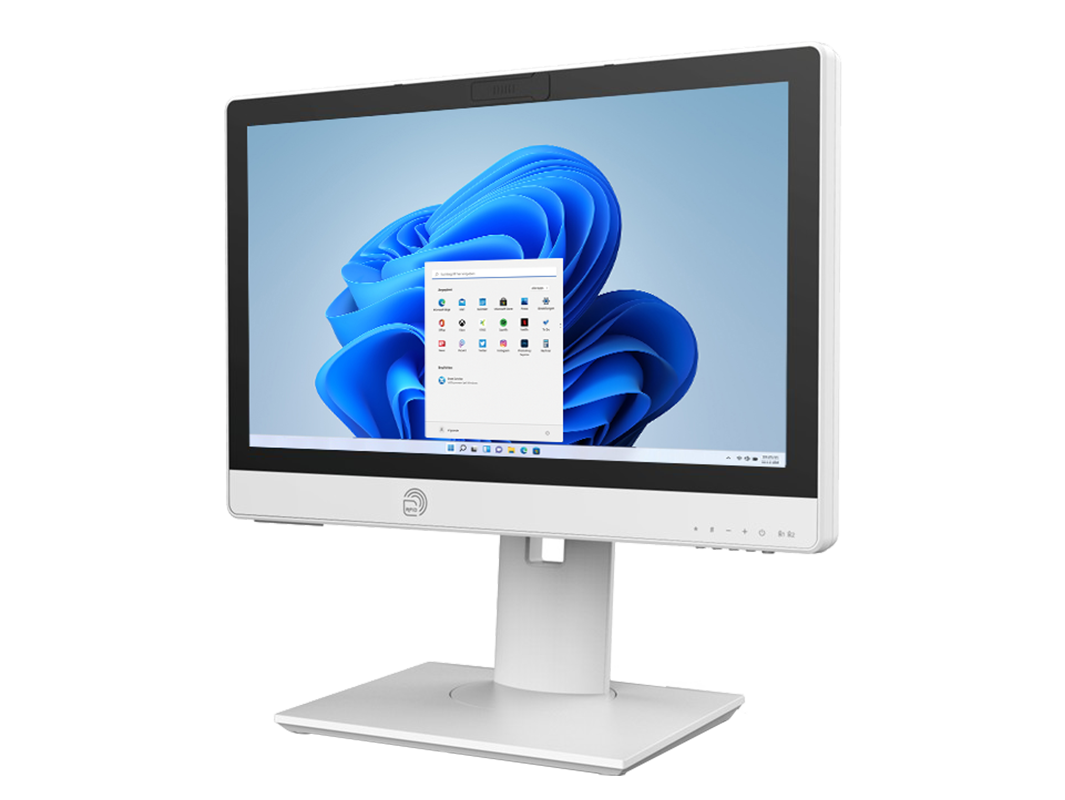

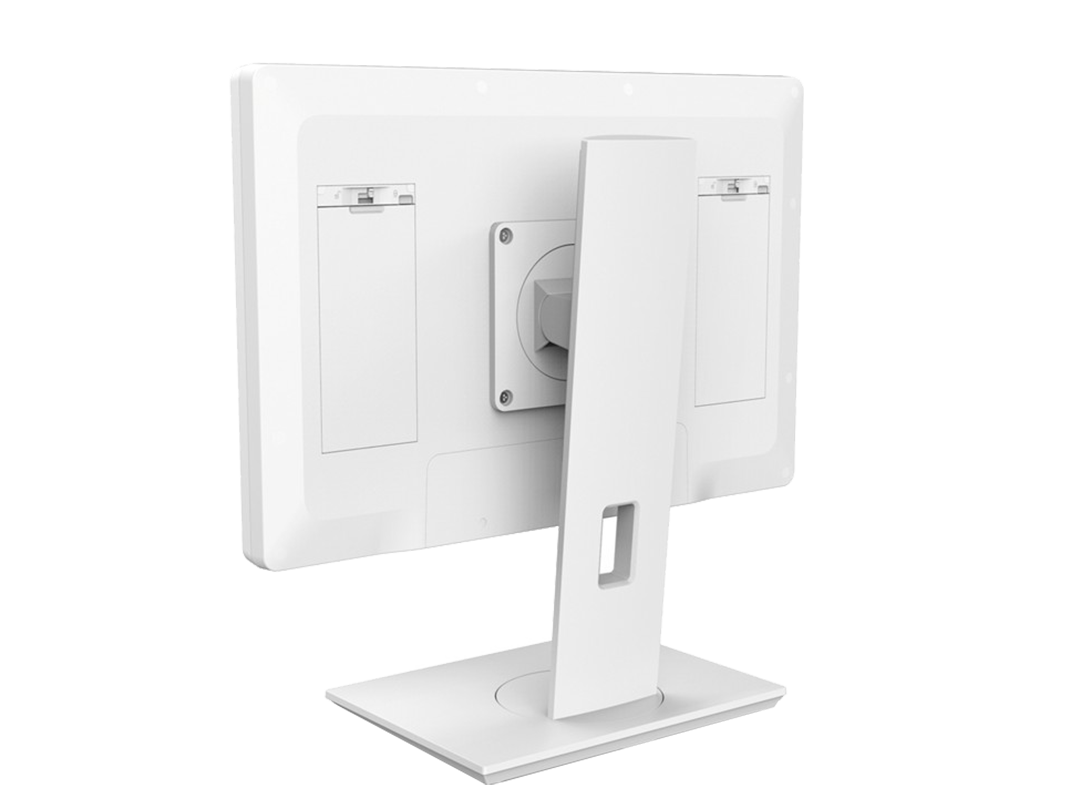

Desktop Stand
Detachable, metal construction. MD-white color.
