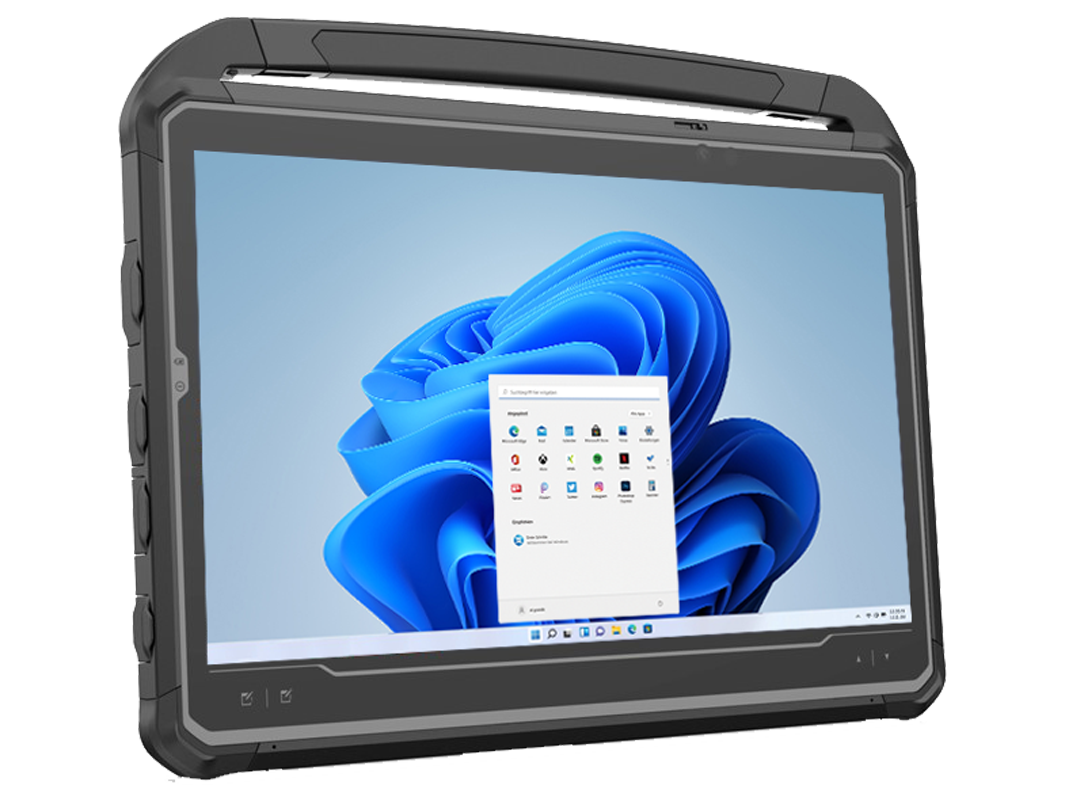

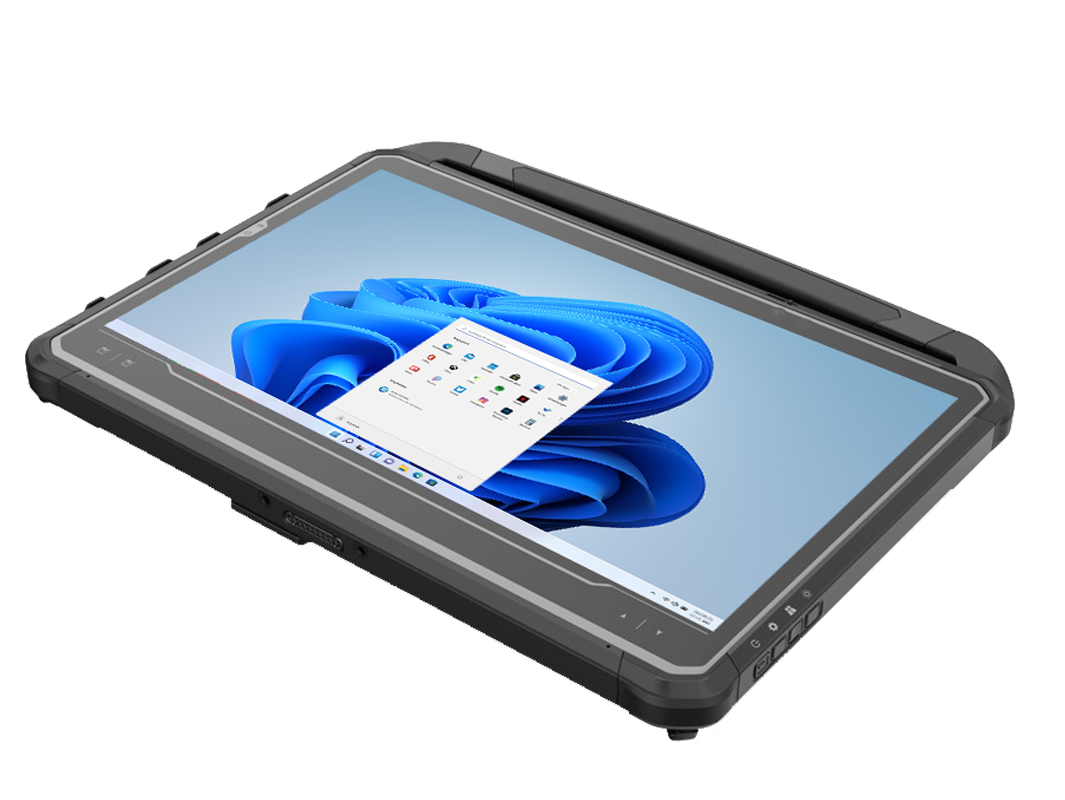

DT323RP Rugged Tablet

Slim, Rugged, Multi-functional Wireless Computing

The DT323RP Rugged Tablets feature the integration of high-brightness 13.3” touchscreens and high-performance, energy-efficient Intel_® Core™ processor within slim, lightweight, durable packages. With a built-in Wi-Fi module as well as options for front/ back cameras, smart card/CAC reader, barcode scanner and GNSS data capture modules, these robust tablets offer seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD- 810H certified with a wide temperature range, the DT323RP Rugged Tablets provide reliable operation in harsh, missioncritical environments.

Product Configurator

Features

13.3” sunlight-readable touchscreen, digital pen support
Intel_® Core™ i5/i7 processor
Microsoft_® Windows_® 11 IoT Enterprise operating system
NIST compliant BIOS available
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection
Quick access SSD

Major Options

5 MP front camera and 8 MP back camera
2D barcode scanner (reads 1D and 2D)
GPS mdule
4G LTE/5G
Smart card/CAC reader

*4G LTE/5G module, 2D scanner and GPS cannot be built onto same device.

Specifications

System

CPU

Intel_® Core™ i5-1335U, 10-core, up to 4.6 GHz
Intel_® Core™ i7-1355U, 10-core, up to 5.0 GHz
RAM

8GB
Storage

512GB to 2TB flash
*Support quick access SSD function to easily replace the SSD without opening the back cover
Operating System

Microsoft_® Windows_® 11 IoT Enterprise
NIST Compliance

NIST compliant BIOS available
Display

13.3” LED-backlit, sunlight-readable (1000 nits) touchscreen
Display Resolution

1920 x 1200
Microphone

Built-in microphone
Speaker

Built-in speaker
Buttons

1 x power button; 2 x brightness buttons; 5 x programmable buttons

Network Interface

WLAN

Wi-Fi 802.11ax, 2.4/5/6 GHz three band
BT

5.3

I/O Ports

USB Port

1 x USB 3.0, 1 x latest USB/charging
Headset Jack

1 (3.5 mm)
Ethernet Port

1 x Ethernet 10/100/1000MB Base-T LAN
DC IN Jack

1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 to 240V AC; Output: 19V DC, 3.42A
Battery Pack

43W Hot-swappable battery (11.4V, 3800mAh)
(Optional) 60W Hot-swappable battery (11.4V, 5400mAh)
(Optional) 90W Hot-swappable battery, (11.4V, 8000mAh)
Enclosure

ABS + PC plastic and magnesium-aluminum alloy
Dimensions (H x W x D)

12.8 x 10.7 x 0.8 in/325 x 273.5 x 20 mm
Weight

3.81 lbs/1.72 kg
Durability

IP65, MIL-STD-810H certified
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing

Yes
Regulatory

FCC Class B, CE, RoHS compliant
Temperature

Operation*: -10°C to 60°C (14°F to 140°F)
Optional -30°C to 60°C (-22°F to 140°F) with a built-in heating element.
*For battery optimal functionality and performance, the recommended usage temperature range is from 0°C to 50°C (32°F to 122°F)
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity

0% to 90% non-condensing

MAJOR OPTIONS SPECS

Barcode Scanner

2D barcode scanner (reads 1D and 2D)
Camera

5 MP front camera and 8 MP back camera
GNSS

GPS
Mobile Broadband

4G LTE/5G
Smart Card/CAC Reader

Half slot (supports ISO 7816 T=0, T=1); 1.8V/3V/5V smart card

Accessories

Sealed IP68 USB Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Sealed IP68 BT Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Slim Detachable Keyboard

Slim and lightweight with magnetic hinge to effortlessly attach/detach to the DT323RP rugged tablet.

Mini Keyboard

This compact, rugged keyboard with a built-in stand delivers stability and efficiency in demanding environments.

AC/DC Power Adapter with Power Cord

Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).

Battery Gang Charger

Simultaneously charge 6 external batteries.

Digital Pen

Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

Desktop Charging Cradle

With I/O ports supporting power, USB, COM, and Ethernet.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

VESA Mounting Bracket

Offers Tablet storage and security.

Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack "offline" without affecting tablet use.

Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
