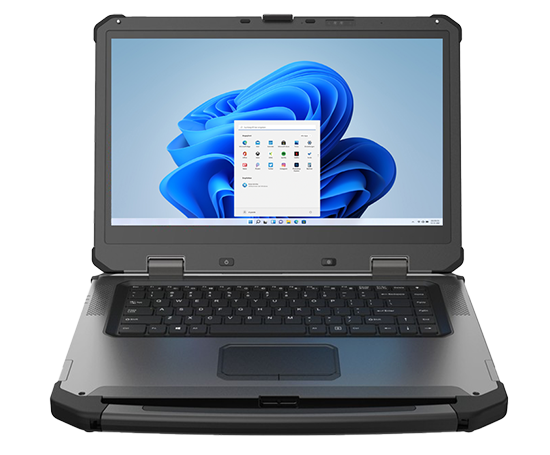

LT365PA Rugged Laptop

Compact, Purpose-Built for Mission-Critical Environments

The DT Research Rugged Laptop integrates a 15.6-inch touchscreen, an Intel_® Core™ Ultra 5 or 7 processor, and a full-size keyboard. With built-in Wi-Fi, an IR camera, and optional features such as a smart card/CAC reader, night vision display, RFID reader, NFC reader, and other data-capture options, the laptop provides advanced identity verification for secure data access. The optional night vision display supports MIL-STD-3009 Class B NVIS mode, making it suitable for light-sensitive operating environments. The optional embedded NVIDIA RTX™ graphics card delivers enhanced performance and efficiency, enabling the LT365PA to handle demanding tasks such as rendering, image analysis, and artificial intelligence (AI). With an IP65 rating and compliance with MIL-STD-810H, this powerful rugged laptop supports a wide operating temperature range, ensuring reliable performance in harsh, mission-critical environments.

Product Configurator

Features

15.6" high-brightness touchscreen; digital pen support
Intel_® Core™ Ultra 5/7 processor
Microsoft_® Windows_® 11 IoT Enterprise operating system
Dual color backlit keyboard with multi-touch pad
Hot-swappable batteries for 24/7 operation
Modular design to easily replace the batteries
IP65-rated for water and dust resistance
MIL-STD-810H for shock and vibration protection
5 MP IR camera with privacy cover; supports Windows Hello

Major Options

4K (3840 x 2160) resolution screen
MIL-STD-3009 class B night vision screen
4G LTE or 5G
NVIDIA RTX A2000, RTX 5000A graphics card
CAC card reader
GPS module
NFC reader
RFID reader
Optional 1 × 24-pin Fischer connector, 1 × USB-A connector, and 1 × RJ45 or SFP connector

Specifications

System

CPU

Intel_® Core™ Ultra 5 processor 225H, 14-core (up to 4.9 GHz)
Intel_® Core™ Ultra 7 processor 255H, 16-core (up to 5.1 GHz)
RAM

Ultra 5: 16GB LPDDR5
Ultra 7: 16GB to 32GB LPDDR5
Storage

512GB to 2TB SSD
Operating System

Microsoft_® Windows_® 11 IoT Enterprise
NIST Compliance

NIST compliant BIOS available
Microphone

Built-in microphone array
Speaker

Built-in speaker
Camera

5 MP IR camera with privacy cover; supports Windows Hello
Buttons

1 x power button, 1 x 2D scanner or NVIS mode trigger button, 2 x brightness touch buttons, 2 x programmable touch buttons

Display

Screen Size

15.6” high-brightness 1200 nits touchscreen
Resolution

1920 x 1080, or 3840 x 2160 (optional)
Luminance

Standard high-brightness (1200 nits)
Optional night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 20 nits
Optional night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits

Keyboard

Keys

QWERTY, full row of F1 to F12 function keys; Keys for Copilot / Windows shortcuts, media controls, screen brightness
Backlight

Yes
Touch Pad

Multi-touch

Wireless Network Interface

WLAN

Wi-Fi 802.11ax 2.4/5/6 Ghz three band
BT

5.4

I/O Ports

USB Port

1 x USB-A (optional: additional 1 x USB-A), 2 x latest USB/charging
Ethernet

1 x 10/100/1000 MB Base-T RJ45 LAN (optional: additional 1 x RJ45)
Audio Jack

1 (3.5 mm)
HDMI-out

1
24-pin Fischer Connector (Optional)

1
SFP Connector (Optional)

1
DC-in Jack

1
SD Card Reader

1
SIM Card Slot

1
Headset Jack

1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 to 240V AC; Output: 19V DC, 120W
Input: 100 to 240V AC; Output: 19V DC, 230W (for GPU SKU)
Battery Pack

2 x Hot-swappable batteries (11.4V, 5400mAh)
2 x Hot-swappable batteries (11.4V, 8000mAh) (optional)
Enclosure

ABS + PC plastic and magnesium-aluminum alloy
Dimensions (H x W x D)

1.52 x 14.76 x 10.63 in/38.5 x 375 x 270 mm
Weight

8.6lbs/3.9 kg (with battery)
Kensington Lock

1
Durability

IP65, MIL-STD-810H certified
Regulatory

FCC Class B, CE, CB, RoHS, EPEAT, Cyber compliant
Temperature

Operation: -10°C to 60°C (14°F to 140°F), optional -30°C to 60°C (-22°F to 140°F);
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity

0% to 90% non-condensing

MAJOR OPTION SPECS

Night Vision Screen

Luminance

Option 1: Daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 class B compliant, providing clear readability of display with the naked eye in dark environments, does not interfere with NVGs
Option 2: Daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 class B compliant, providing clear readability of display with NVGs in dark environments
Mobile Broadband

4G LTE
GNSS

GPS
Graphics Card

NVIDIA RTX A2000, RTX 5000A graphics card
Smart Card/CAC Reader

Full-slot (reads ISO 7816 T=0, T=1); 1.8/3/5V smart card
RFID Reader

Dual frequency (reads 125 KHz and 13.56 MHz credentials)
NFC Reader

ISO/IEC 14443 Type A and B up to 848 kbit/s; FeliCa at 212 and 424 kbit/s;
MIFARE Classic 1K and 4K; NFC Forum Type 1, 2, 3, 4, and 5 tags; ISO/IEC 15693

Accessories

Sealed IP68 USB Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

Sealed IP68 BT Keyboard

Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.

6-bay Battery Pack Charger

Simultaneously charges up to 6 external battery packs, providing an efficient power solution for high-demand environments.

Battery Charger Kit with AC Adapter and Power cord

Single-bay Battery Charger Kit

Allows for "offline" battery charging without interrupting tablet operation, ensuring continuous productivity.

Battery Pack

Hot-swappable, 60W or 90W.

MIL-STD-461G AC/DC Power Adapter

◆ Input Voltage: 100 to 240Vac; Output Voltage: 19V, 4.74A

◆ MIL STD 461G certified (Choice of North America, UK or EU power cord).

AC/DC Power Adapter with Power Cord

Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).
