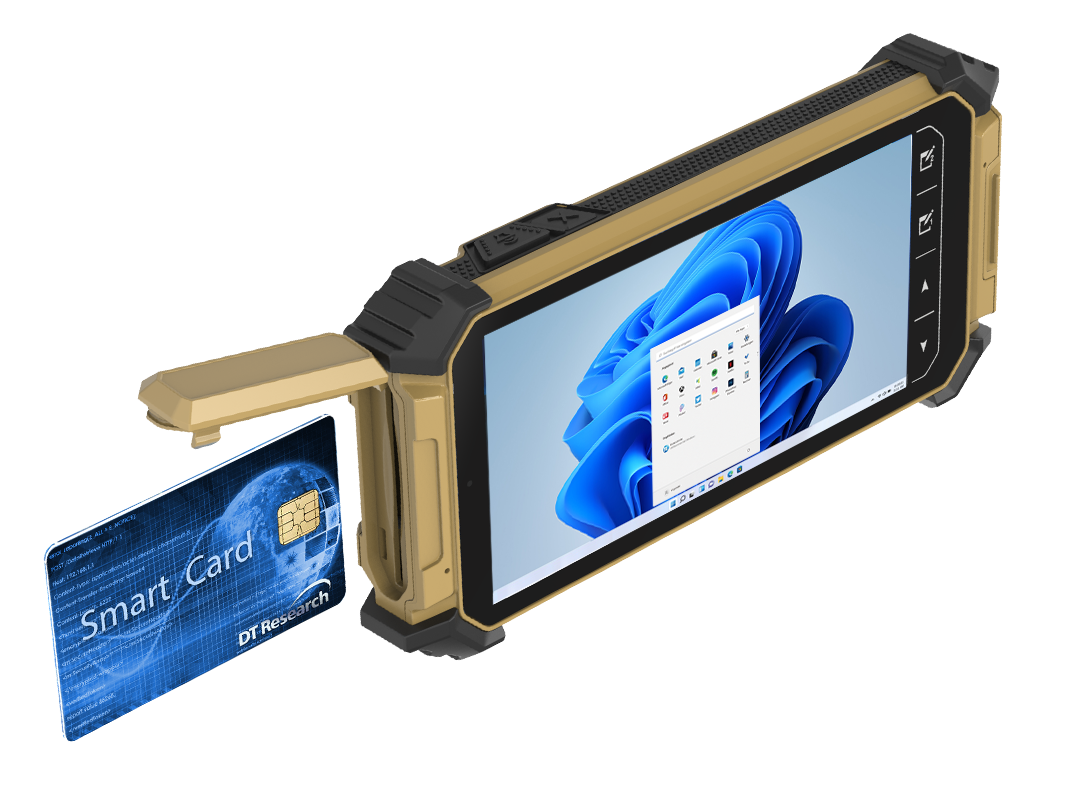

DT361AM Rugged Tablet
Slim, Rugged, Multi-functional Wireless Computing
The DT361AM Rugged Tablet features the integration of a 6" capacitive touch screen and a high performance, energy-efficient Intel® processor within a slim, lightweight, durable package. With built-in smart card reader, walkie-talkie communication capability as well as Wi-Fi, this robust tablet offers seamless information capture and transmission for improved workflow. Rated IP65 and MIL-STD-810G, the DT361AM Rugged Tablet provides reliable operation in harsh, mission-critical environments.
Product ConfiguratorFeatures
- 6” capacitive touch screen, digital pen support
- Intel® Core™ i7 processor
- Microsoft® Windows® 10/11 IoT Enterprise operating system
- Walkie-talkie communication capability
- Built-in smart card reader (full slot)
- IP65-rated for water and dust resistance
- MIL-STD-810G for shock and vibration protection
Major Option
- Night vision screen
Specifications
System
-
CPU
Intel® Core™ i7-10510Y, Quad-Core, 1.2GHz (up to 4.5GHz)
-
Storage and RAM
256GB flash with 8GB RAM
512GB flash with 16GB RAM -
Operating System
Microsoft® Windows® 10/11 IoT Enterprise
-
NIST Compliance
NIST compliant BIOS available
-
Display
6” LED-backlight capacitive touch screen
-
Display Resolution
1440 x 720
-
WLAN
Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band
-
Control Switch and Buttons
1 power button, 1 push-to-talk button, 2 brightness control buttons, 4 programmable buttons
-
Microphone
2
-
Speaker
Built-in speaker
I/O PORTS
-
USB Port
USB 3.0 x 1, USB Type C x 1 (for data transmitting and charging)
-
Ethernet
Ethernet 10/ 100/ 1000MB Base-T LAN
-
Smart Card/CAC Reader
Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100 – 240V AC; Output: 15V DC, 3A
-
Battery Pack
Hot swappable battery, 7.6V, 3100mAh
-
Enclosure
ABS + PC plastics and magnesium-aluminum alloy
-
Dimensions (H x W x D)
3.7 x 7.6 x 1.3 in/ 95 x 193 x 32 mm
-
Weight
1 lb/ 454 g
-
Durability
IP65 and MIL-STD-810G
-
Regulatory
FCC Class B, CE, RoHS compliant
-
Temperature
Operation: -10°C ~ 50°C (14°F ~ 122°F );
Storage: -50°C ~ 70°C (-58°F ~ 158°F) -
Humidity
0% ~ 90% non-condensing
MAJOR OPTION SPECS
- NIGHT VISION SCREEN
-
Luminance
Option 1: Daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 Class B compliant, providing clear readability of display with the naked eye in dark environments, does not interfere with NVGs.
Option 2: Daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 Class B compliant, providing clear readability of display with NVGs in dark environments.
Accessories
Digital Pen
Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.
4-Bay System Gang Charger
Multi-bay charger, capable of charging up to 4 battery packs simultaneously.
6-Bay Battery Gang Charger
Multi-bay charger, capable of charging up to 6 battery packs simultaneously.
Battery Packs
3100mAh battery packs.
AC/DC Power Adapter with Power Cord
Facilitates Tablet operation or battery recharge. USB Type-C connector.
Vest Tablet Mount
Attach to a tactical vest. Foldable, for hands-free and easy insert/remove tablet operation.
*The vest is not included in the standard package.
