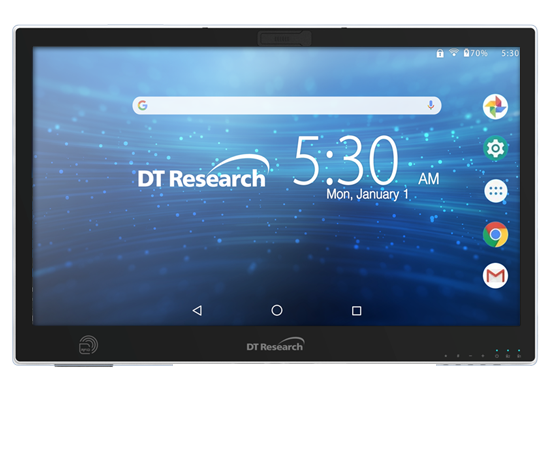

DT574LA
Medical-Grade All-in-One Computer
Designed for versatility in medical and healthcare applications, the DA574LF Medical All-in-One System offers optimal processing power and a range of options for diverse applications—from the high-performance Octa-core processor for demanding workloads to cost-efficient configurations ideal for nurse stations. Featuring a 23.8” full-HD touchscreen, a fanless design and antimicrobial enclosure, and VESA mounting compatibility, this slim and energy-efficient system seamlessly integrates into clean-sensitive environments. Optional features such as a smart card/CAC reader, RFID reader, and 5 MP front MIPI camera further enhance workflow efficiency, creating a robust solution for patient data management, telemedicine, and point-of-care applications.
Features
- 23.8" full-HD (1920 x 1080) display
- Qualcomm® Octa-core processor
- Android 14 operating system
- Space-saving all-in-one, slim, fanless design with antimicrobial enclosure
- VESA mounting compatibility for easy installation and optimized mobility
- IP65-rated front panel with IP54-rated enclosure
- Integrated hot-swappable batteries (optional, up to 2 batteries)
Major Options
- 5 MP front MIPI camera
- Smart card/CAC reader
- RFID reader
Specifications
System
-
CPU
Qualcomm® Octa-core (up to 2.7 GHz)
-
RAM
8GB LPDDR4X
-
Storage
128 GB UFS 2.2
-
Operating System
Android 14
-
Display
23.8"
-
Touchscreen
P-CAP touch
-
Brightness
250 cd/m2
-
Contrast Ratio
1000:1
-
Display Resolution
Full-HD (1920 x 1080)
-
Speaker
2 x 5W speakers
-
Microphone
Built-in microphone array
-
Buttons
1 x power button, 4 x programmable buttons
Network Interface
-
WLAN
Wi-Fi 802.11ax, 2.4GHz/5GHz dual band
-
BT
5.2

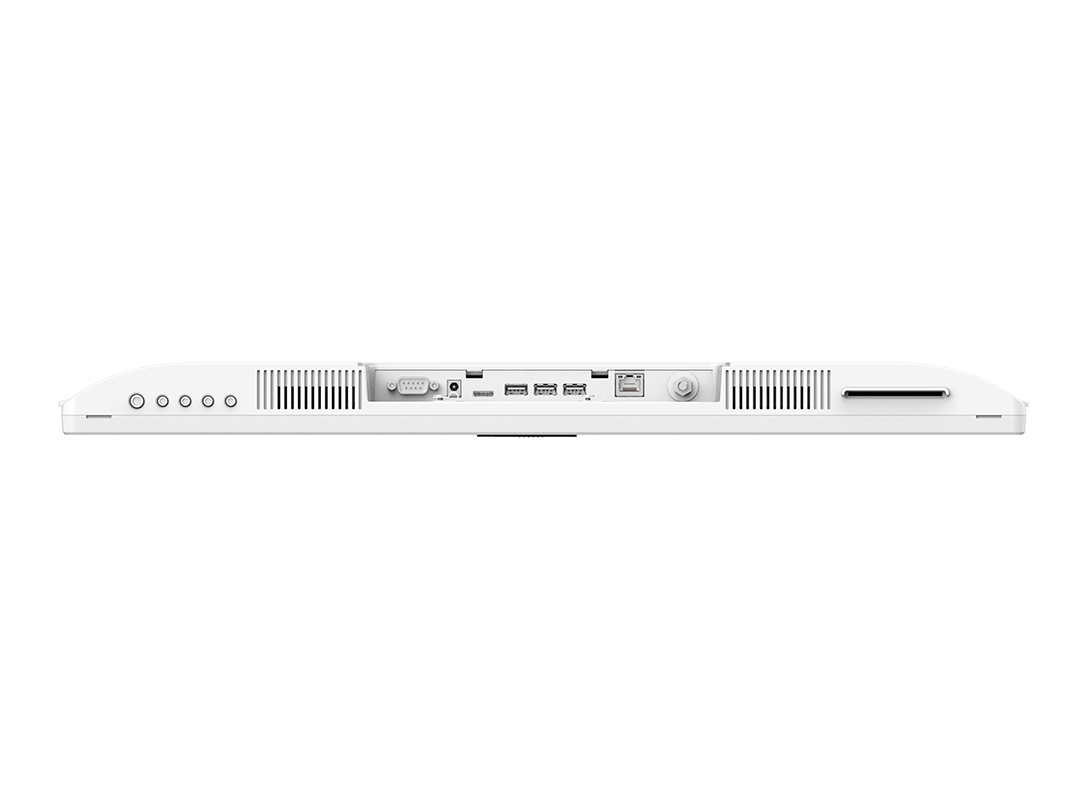

I/O Ports
-
USB Port
3 x USB 3.2 Gen 2 (Type-A) (for display output and charging)
-
Ethernet Port
1 x GbE LAN (10/100/1000 Base-T)
-
COM
1
-
DC-in Jack
1
-
SIM Card Slot
1 (support Duel SIM)
-
POAG (optional)
1
MECHANICAL AND ENVIRONMENTAL
-
Fan/Fanless
Fanless
-
Battery Pack
(Optional) 2 x Li-ion batteries (8250mAh, 90Wh)
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 19V DC, 6.31A
-
Enclosure
ABS plastic, antimicrobial enclosure
-
Dimensions (H x W x D)
14.49 x 22.4 x 1.67 in/368 x 569 x 42.5 mm
-
Weight
16.31 lbs/7.4 kg
-
VESA
100 × 100 mm
-
Water Resistance
IP65 sealed front bezel and IP54 back cover enclosure
-
Temperature
Operation: 0°C to 40°C (32°F to 104°F);
Storage: -20°C to 60°C (-4°F to 140°F) -
Humidity
0% to 90% non-condensing
MAJOR OPTIONS SPECS
-
Camera
5 MP front MIPI camera
-
Smart Card/CAC Reader
Half-slot (ISO 7816 T=0, T=1 and 1.8/3/5V smart card)
-
RFID Reader
HF 13.56 MHz, ISO 15693, 14443A(B) and 18000-3 mode 1, or dual frequency (125 kHz and 13.56 MHz)
Accessories
Sealed IP68 BT Keyboard
Built to meet strict military standards, this keyboard is designed to withstand extreme conditions that typical consumer-grade keyboards cannot endure.
Desktop Stand
Detachable, metal construction. MD-white color.
AC/DC Power Adapter with Power Cord
Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).
Hot-swappable Battery
90W, 8250mAh battery.
