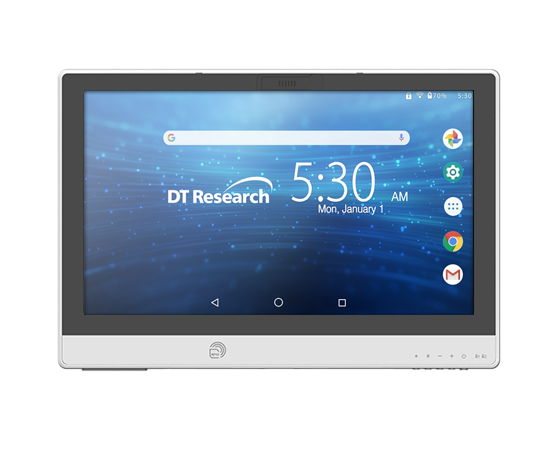

DA556LF
All-in-One Computer with Integrated Swappable Batteries for Point-of-Care Applications
Powered by high-performance Qualcomm® Octa-core processor and running on the Android 14 operating system, the DA556LF medical grade All-in-One computer feature 15.6” high-resolution capacitive multi-touch displays, providing a wide viewing area for enhanced readability and efficient operation. Optional dual hot-swappable batteries ensure uninterrupted workflow, while the VESA-standard mounting design allows for easy installation and flexible placement. Smart card reader, front camera, and NFC/RFID data capture options further streamline point-ofcare processes. Designed for use in hospitals and clean-sensitive labs, the DA556LF medical grade All-in-One computer support a variety of point-of-care applications. A range of accessories—including batteries, multi-battery chargers, desktop stands, and cart battery holsters—enhance usability and improve productivity.
Features
- 15.6” high-resolution multi-touch
- Qualcomm® Octa-core processor
- Android 14 operating system
- Fanless, space-saving all-in-one design with antimicrobial enclosure
- VESA compatibility to maximize installation flexibility
- Integrated dual hot swappable batteries
- IP65 sealed front bezel and IP54 back cover enclosure
Major Options
- 5 MP front camera
- NFC/RFID reader
- Smart card/CAC reader
- 5G Antenna
- Battery
Specifications
System
-
CPU
Qualcomm® Octa-core, up to 2.4 GHz
-
RAM
8GB LPDDR4X
-
Storage
256GB flash
-
Operating System
Android 14
-
Display
15.6" multi-touch
-
Display Resolution
1920 x 1080
-
Microphone
Microphone array
-
Speaker
Build-in speaker
-
Buttons
1 x power button, 4 x functional buttons
Network Interface
-
WLAN
Wi-Fi 6E 802.11ax,2.4 GHz, 5 GHz dual band
-
BT
5.2
-
5G
Yes (optional)

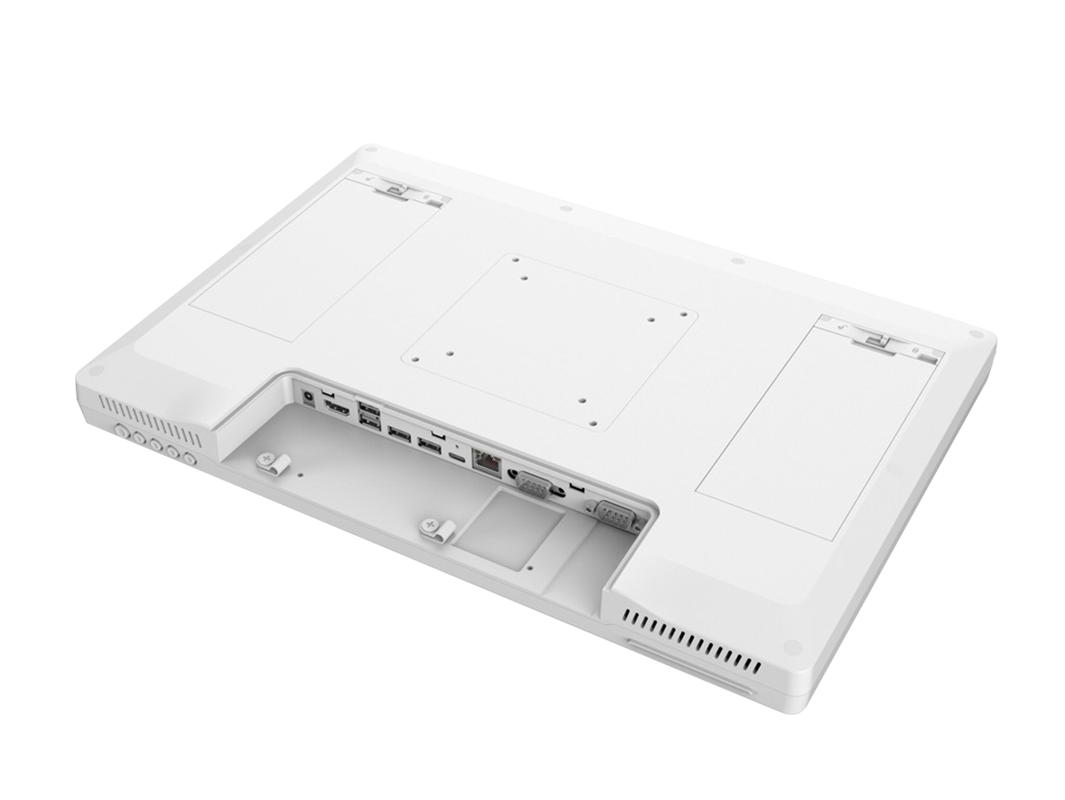

I/O Ports
-
USB Port
4 x USB (Type-A)
-
COM Port
2
-
Ethernet Port
1 x Ethernet 10/100/1000MB base-T LAN
-
DC-in Jack
1
-
POAG
1 (optional)
MECHANICAL AND ENVIRONMENTAL
-
Fan/Fanless
Fanless
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 19V DC, 3.78A
-
Battery Pack
2 x Li-Ion batteries (7.6V, 23.56W)
2 x Li-Ion batteries (10.9V, 70.88W) (optional) -
Enclosure
ABS + PC plastic with antimicrobial coating
-
Dimensions (H x W x D)
10.51 x 15.51 x 1.34 in/267 x 394 x 34 mm
-
Weight
6.61 lbs/3 kg
-

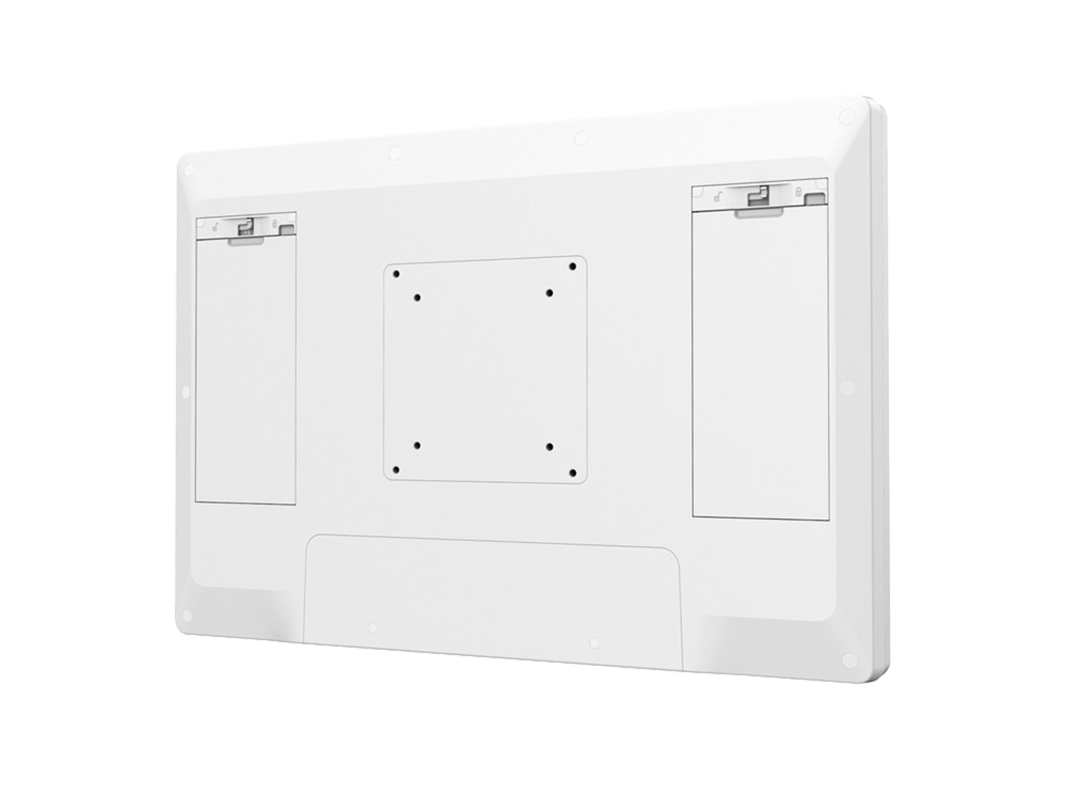

VESA Mount
100 x 100/75 x 75 mm
-
Water Resistance
IP65 sealed front bezel and IP54 back cover
-
Regulatory and Safety Certifications
Medical CE, FCC Part 15B & Part 18B, RCM, IC, RoHS
-
Temperature
Operation: 0°C to 40°C (32°F to 104°F); Storage: -20°C to 60°C (-4°F to 140°F)
-
Humidity
0% to 90% non-condensing
MAJOR OPTIONS SPECS
-
Camera
5 MP front camera
-
NFC/RFID Reader
Dual frequency (reads 125 KHz and 13.56 MHz credentials)
-
Smart Card/CAC Reader
Half-slot (reads ISO 7816 T=0, T=1 and 1.8/3/5V smart card)
-
Antenna
5G
-
Battery
2 x Li-Ion batteries (10.9V, 70.88W)
Accessories
Medical Grade AC Adapter with Power Cord
Facilitates system operation and/or battery recharge.
Battery Gang Charger
Simultaneously charge 4 external batteries..
Battery 23.56W Packs
Battery 70.88W Packs

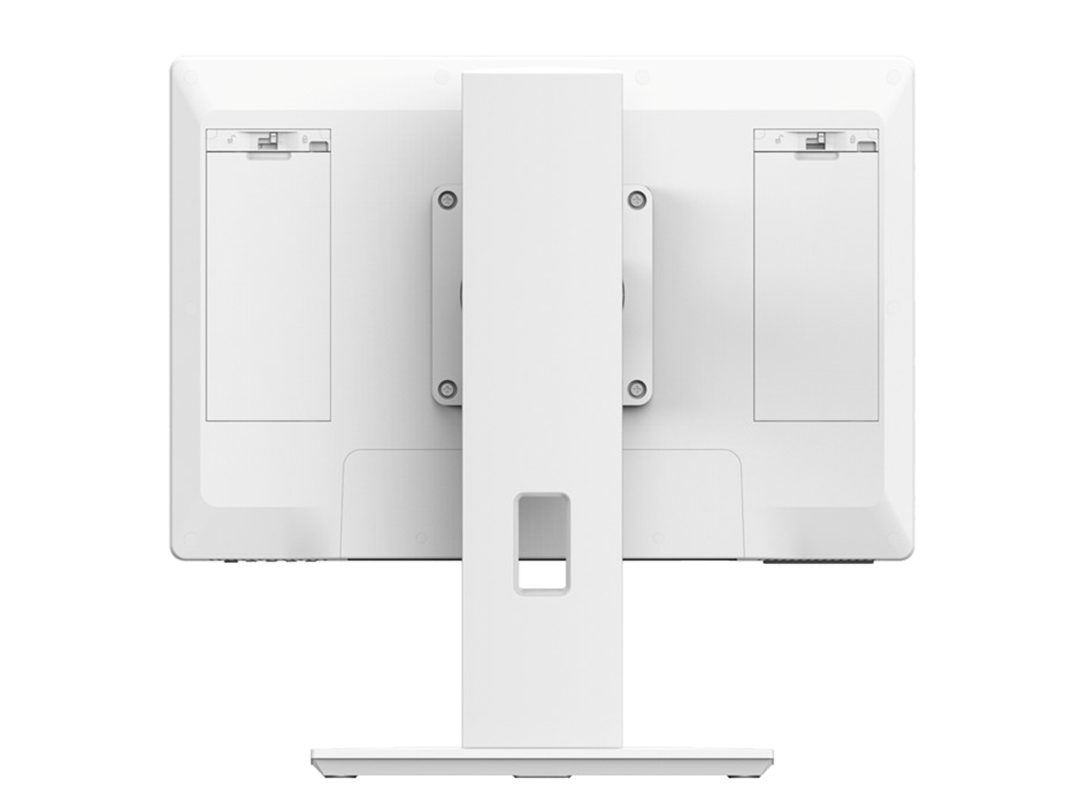

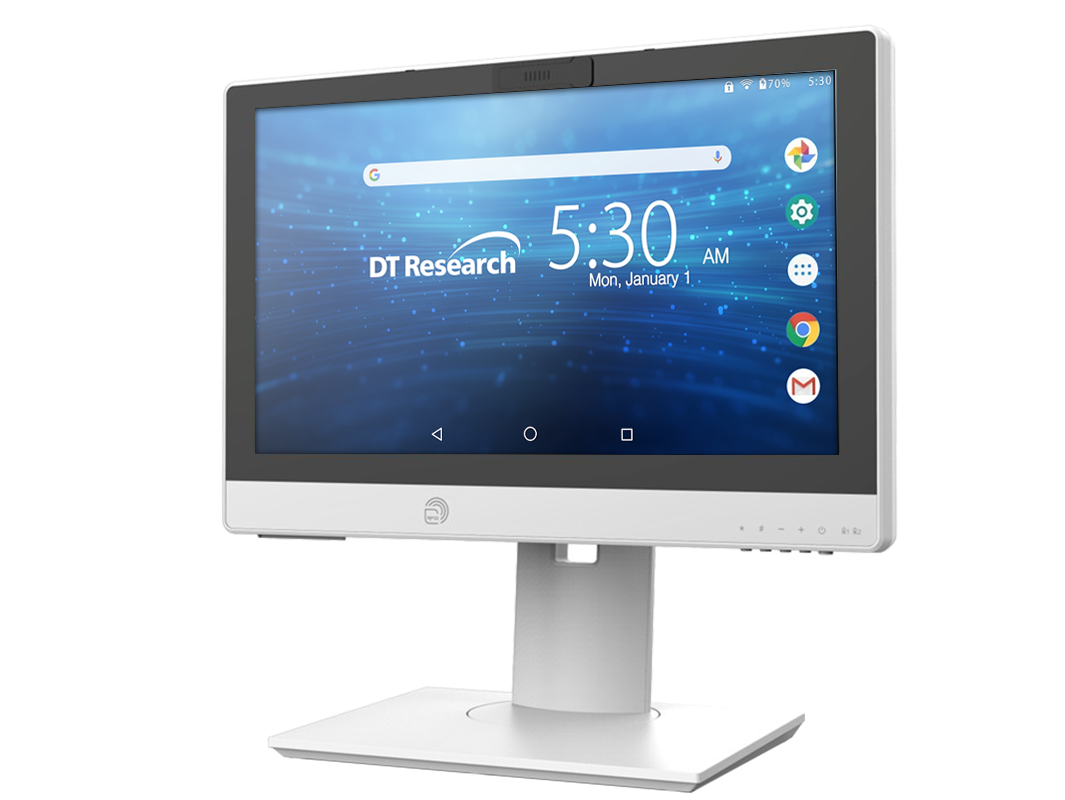

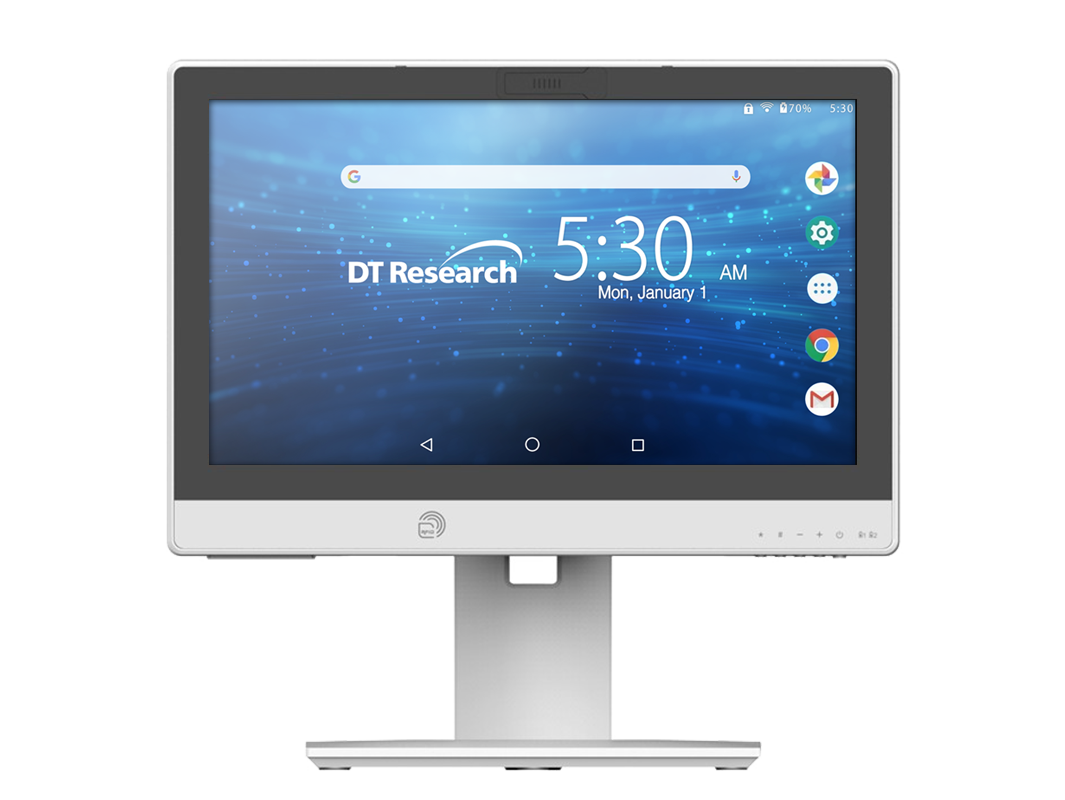

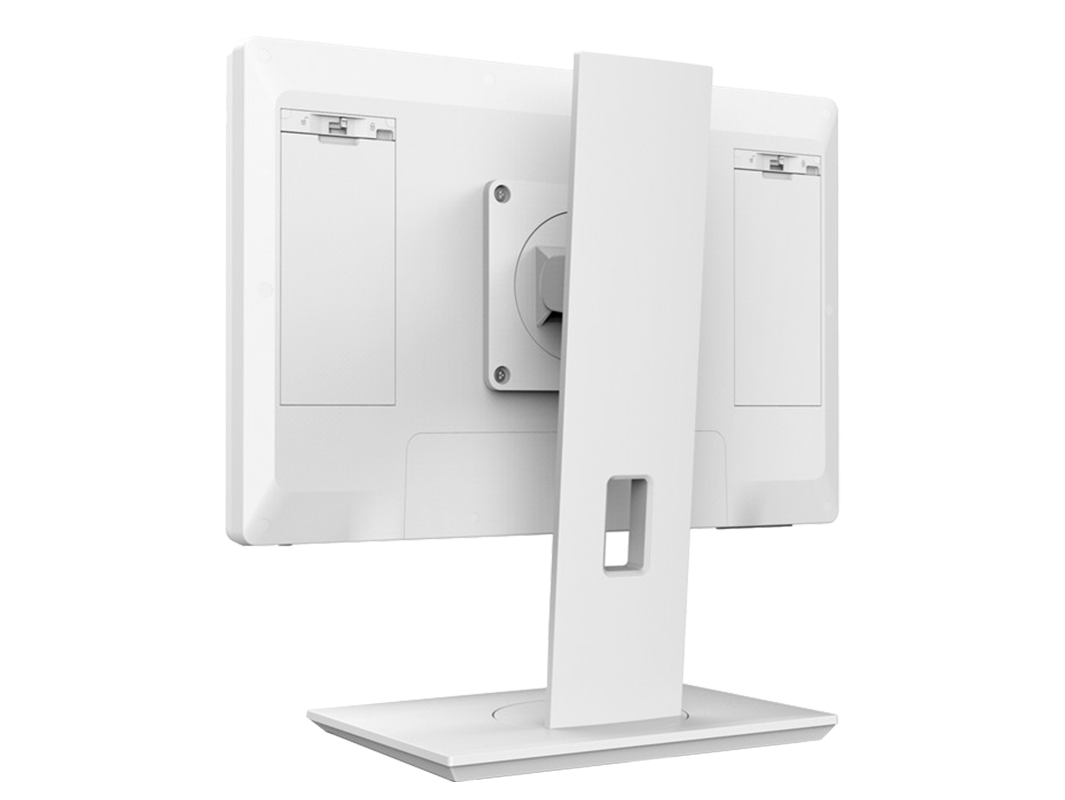

Desktop Stand
Detachable, metal construction. MD-white color.
