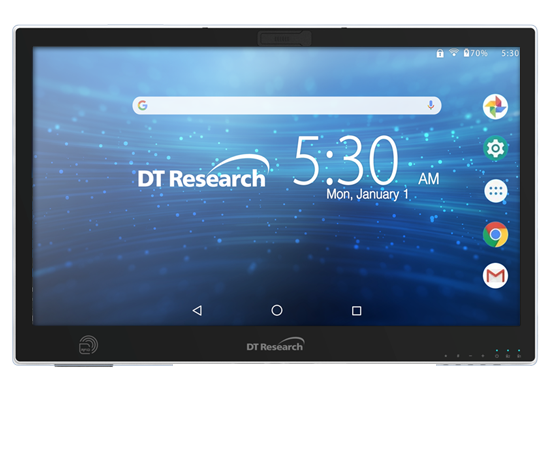

DA574LF
Medical-Grade All-in-One Computer
Designed for versatility in medical and healthcare applications, the DA574LF Medical All-in-One System offers optimal processing power and a range of options for diverse applications—from the high-performance Octa-core processor for demanding workloads to cost-efficient configurations ideal for nurse stations. Featuring a 23.8” full-HD touchscreen, a fanless design and antimicrobial enclosure, and VESA mounting compatibility, this slim and energy-efficient system seamlessly integrates into clean-sensitive environments. Optional features such as a smart card/CAC reader, RFID reader, and 5 MP front MIPI camera further enhance workflow efficiency, creating a robust solution for patient data management, telemedicine, and point-of-care applications.
Features

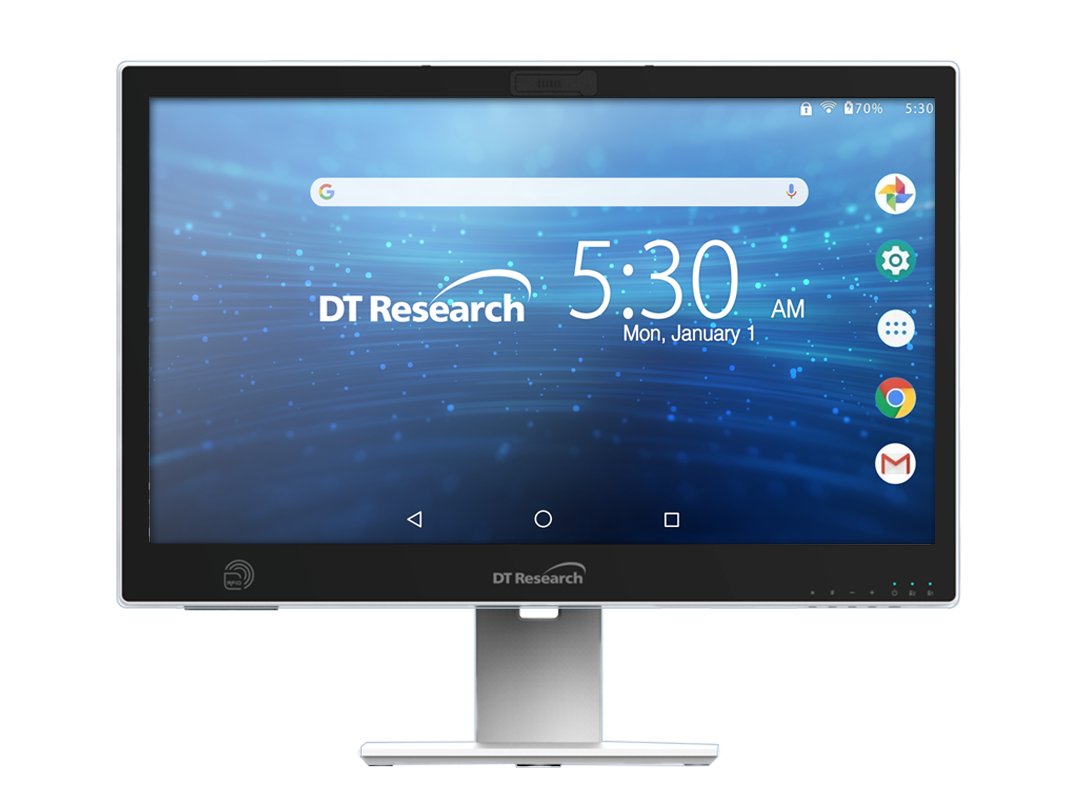

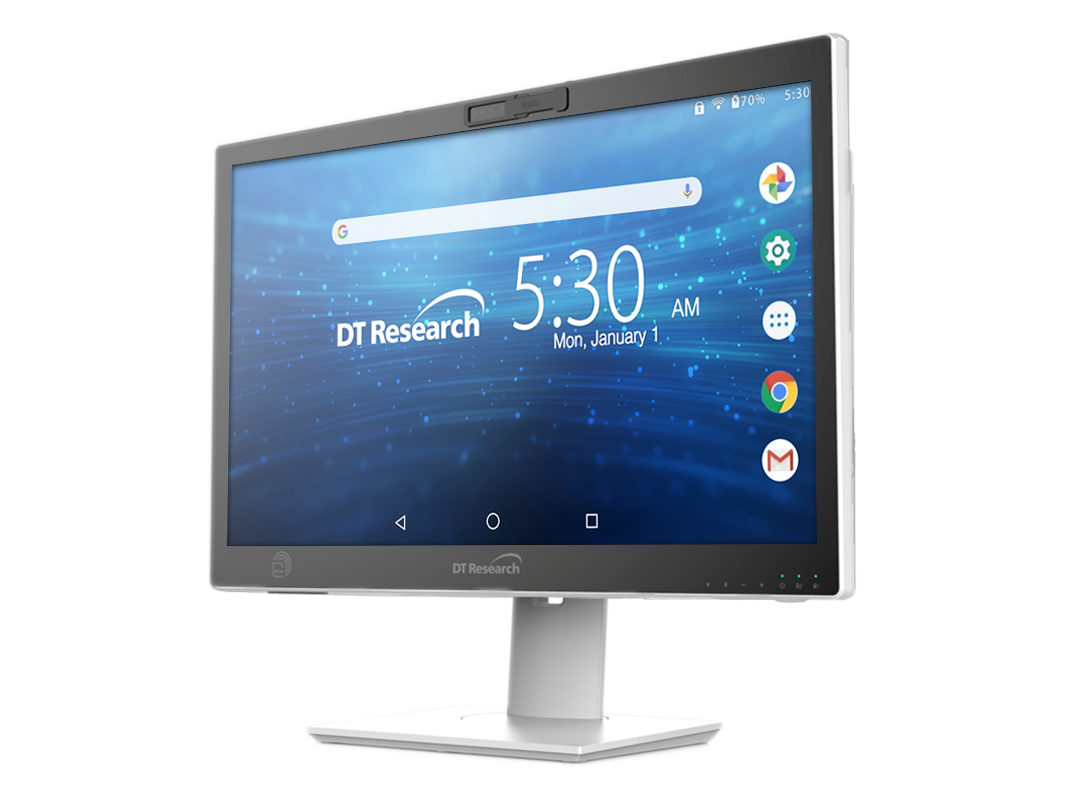

- 23.8" full-HD (1920 x 1080) touchscreen
- Qualcomm® Octa-core processor
- Android 14 operating system
- Space-saving all-in-one, slim, fanless design with antimicrobial enclosure

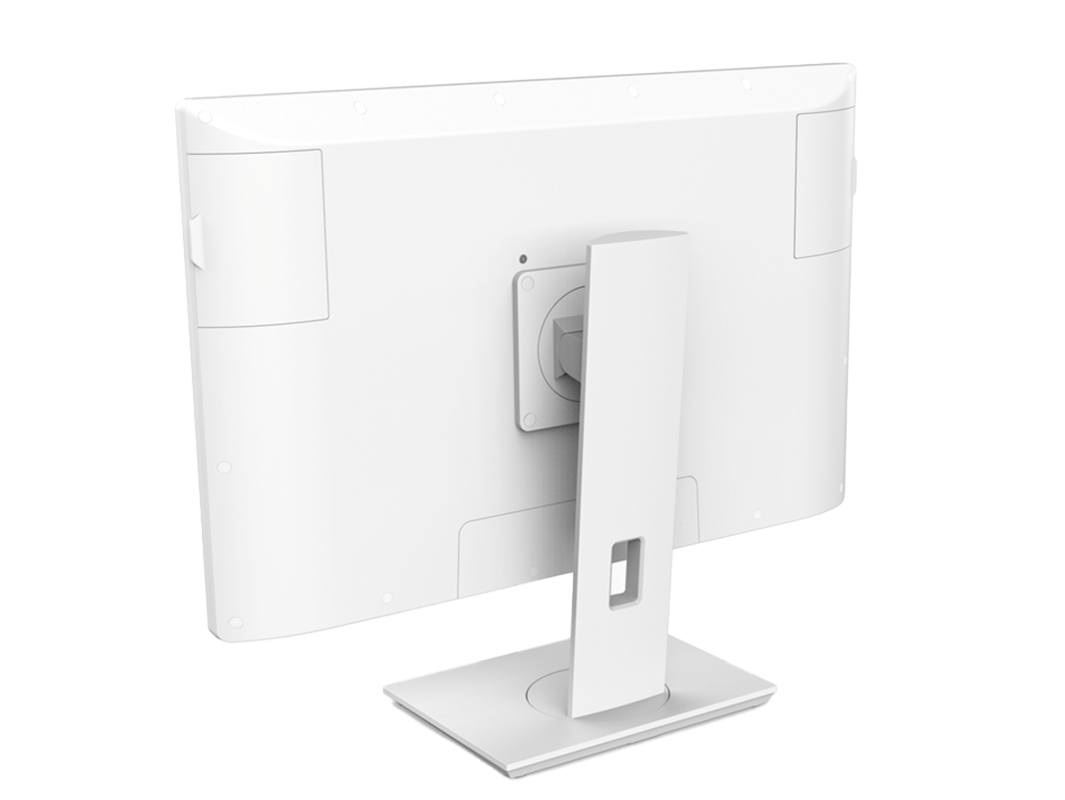

- VESA mounting compatibility for easy installation and optimized mobility
- IP65-rated front panel with IP54-rated enclosure
- Integrated hot-swappable batteries (optional, up to 2 batteries)
Major Options
- 5 MP front MIPI camera
- Smart card/CAC reader
- RFID reader
Specifications
System
-
CPU
Qualcomm® Octa-core (up to 2.7 GHz)
-
RAM
8GB LPDDR4X
-
Storage
128GB UFS 2.2
-
Operating System
Android 14
-
Display
23.8"
-
Touchscreen
P-CAP touch
-
Brightness
250 cd/m2
-
Contrast Ratio
1000:1
-
Display Resolution
Full-HD (1920 x 1080)
-
Speaker
2 x 5W speakers
-
Microphone
Built-in microphone array
-
Buttons
1 x power button, 4 x programmable buttons
Network Interface
-
WLAN
Wi-Fi 802.11ax, 2.4GHz/5GHz dual band
-
BT
5.2

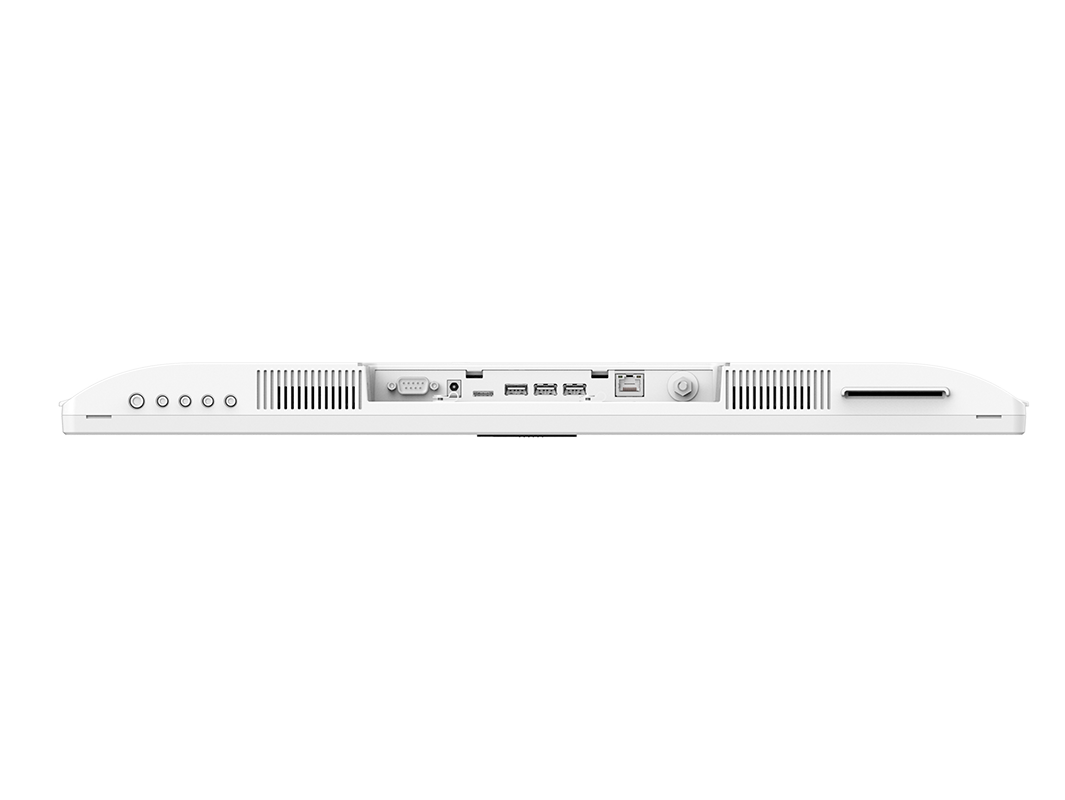

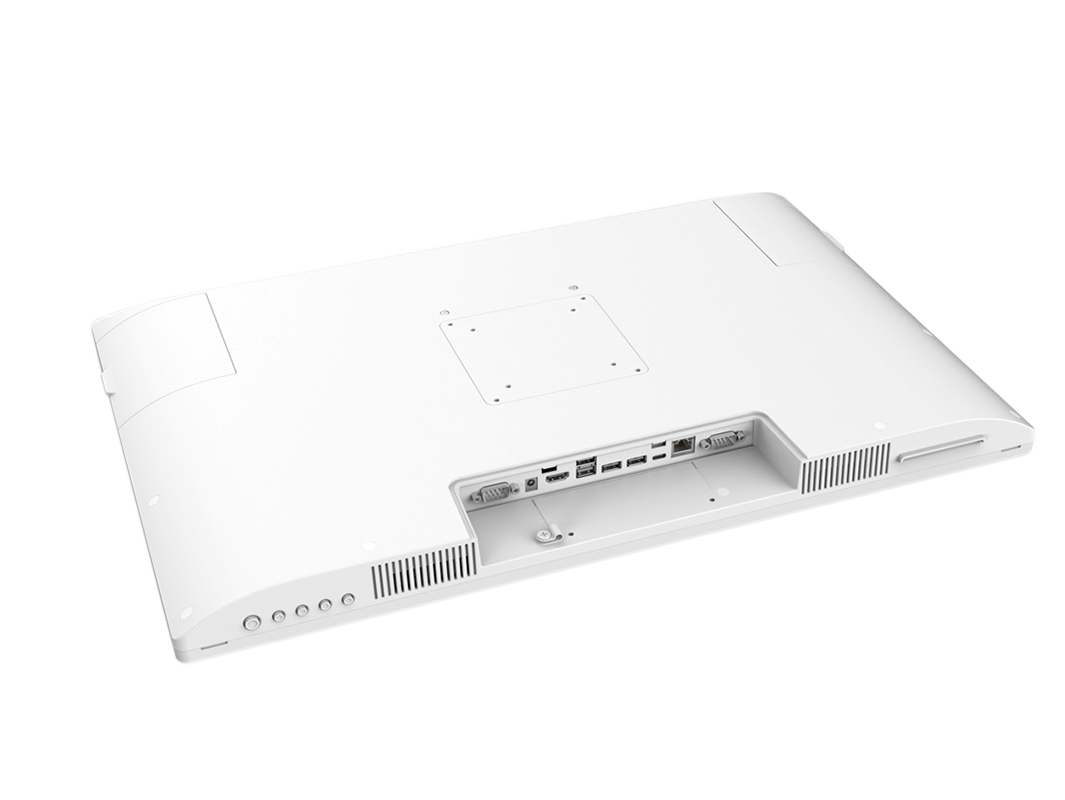

I/O Ports
-
USB Port
3 x USB 3.2 Gen 1 (Type-A) (for display output and charging)
-
Ethernet Port
1 x GbE LAN (10/100/1000 Base-T)
-
COM
1
-
DC-in Jack
1
-
SIM Card Slot
1 (support Duel SIM)
-
POAG (optional)
1
MECHANICAL AND ENVIRONMENTAL
-
Fan/Fanless
Fanless
-
Battery Pack
(Optional) 2 x Li-ion batteries (8250mAh, 90Wh)
-
AC/DC Adapter
Input: 100 to 240V AC; Output: 19V DC, 6.31A
-
Enclosure
ABS plastic, antimicrobial enclosure
-
Dimensions (H x W x D)
14.49 x 22.4 x 1.67 in/368 x 569 x 42.5 mm
-
Weight
16.31 lbs/7.4 kg
-
VESA
100 × 100 mm
-
Water Resistance
IP65 sealed front bezel and IP54 back cover enclosure
-
Temperature
Operation: 0°C to 40°C (32°F to 104°F);
Storage: -20°C to 60°C (-4°F to 140°F) -
Humidity
0% to 90% non-condensing
MAJOR OPTIONS SPECS
-
Camera
5 MP front MIPI camera
-
Smart Card/CAC Reader
Half-slot (ISO 7816 T=0, T=1 and 1.8/3/5V smart card)
-
RFID Reader
HF 13.56 MHz, ISO 15693, 14443A(B) and 18000-3 mode 1, or dual frequency (125 kHz and 13.56 MHz)
Accessories
Desktop Stand
Detachable, metal construction. MD-white color.
