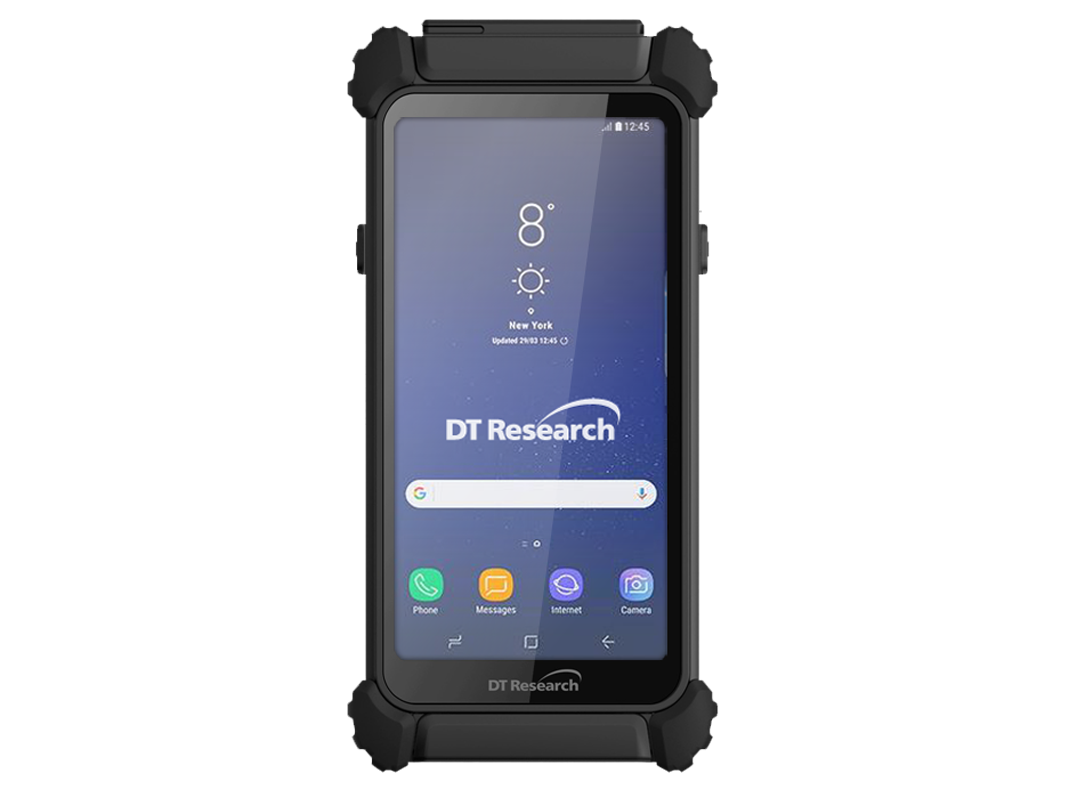

362Q Handheld Rugged Tablet

Slim, Rugged, Multi-functional Wireless Computing

The DT Research 362Q Handheld Rugged Tablet features the integration of a high brightness 6" capacitive touch screen, Android operating system, and a high performance yet energy efficient octa-core processor within a slim, lightweight, durable package. With built-in back camera, Wi-Fi and Bluetooth as well as options for barcode scanner, GPS, NFC, and UHF RFID reader, this robust tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810G and HERO certified, the 362Q Handheld Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Product Configurator

Features

  • 6” capacitive touch screen, digital pen support
  • Qualcomm octa-core processor
  • Android operating system
  • Hot swappable battery pack
  • IP65-rated for water and dust resistance
  • MIL-STD-810G for shock and vibration protection
  • HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
  • Built-in back camera

Major Options

  • NFC/RFID reader
  • Barcode scanner
  • GPS
  • 4G LTE/AWS

Specifications

System
  • CPU

    Qualcomm octa-core processor (2.0GHz)

  • RAM

    4GB

  • Storage

    64GB flash

  • Operating System

    Android 9.0 and 10

  • Display

    6” LED-backlight (400 nits) screen with capacitive touch

  • Display Resolution

    720 x 1440

  • Network Interface

    Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.1 LE

  • Control Switch and Buttons

    1 power button, 2 trigger buttons

  • Back Camera

    8 megapixel back camera

I/O PORTS
  • USB Port

    USB Type-C x 1 (data transmitting and charging; data transmitting only available in one insertion direction)

  • SD Slot

    1 micro SD card slot

MECHANICAL AND ENVIRONMENTAL
  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 20V DC, 3.25A

  • Battery Pack

    Hot swappable battery, 3100mAh

  • Enclosure

    ABS + PC plastics

  • Dimensions (H x W x D)

    7.34 x 3.39 x 0.96 in/ 186.4 x 86.2 x 24.5 mm

  • Weight

    1.1 lbs/ 480 g

  • Durability

    IP65 and MIL-STD-810G

  • Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing


    Yes

  • Regulatory

    FCC Class B, RoHS compliant

  • Temperature

    Operation: -10°C to 50°C (14°F to 122°F );
    Storage: -20°C to 60°C (-4°F to 140°F)

  • Humidity

    0% – 90% non-condensing

MAJOR OPTIONS SPECS
  • BARCODE SCANNER

    2D barcode scanner; reads 1D also

  • NFC/RFID READER

    HF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1

  • GPS

    Yes

  • MOBILE BROADBAND

    4G LTE/AWS

Accessories

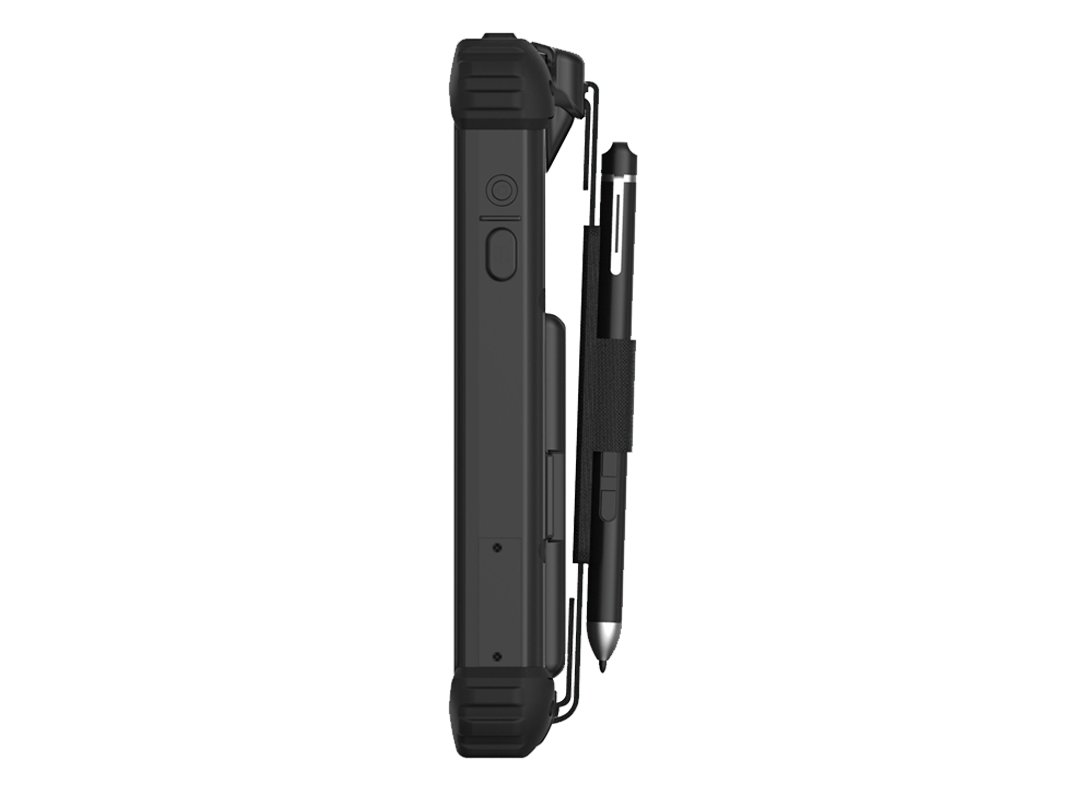

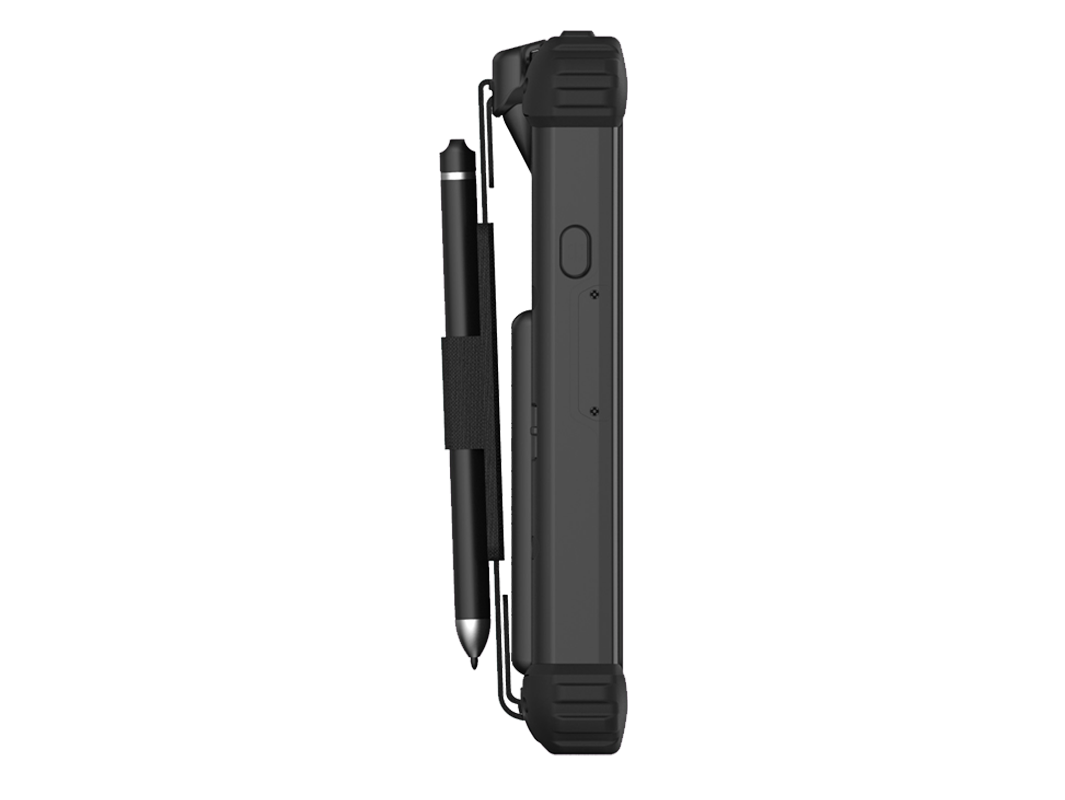

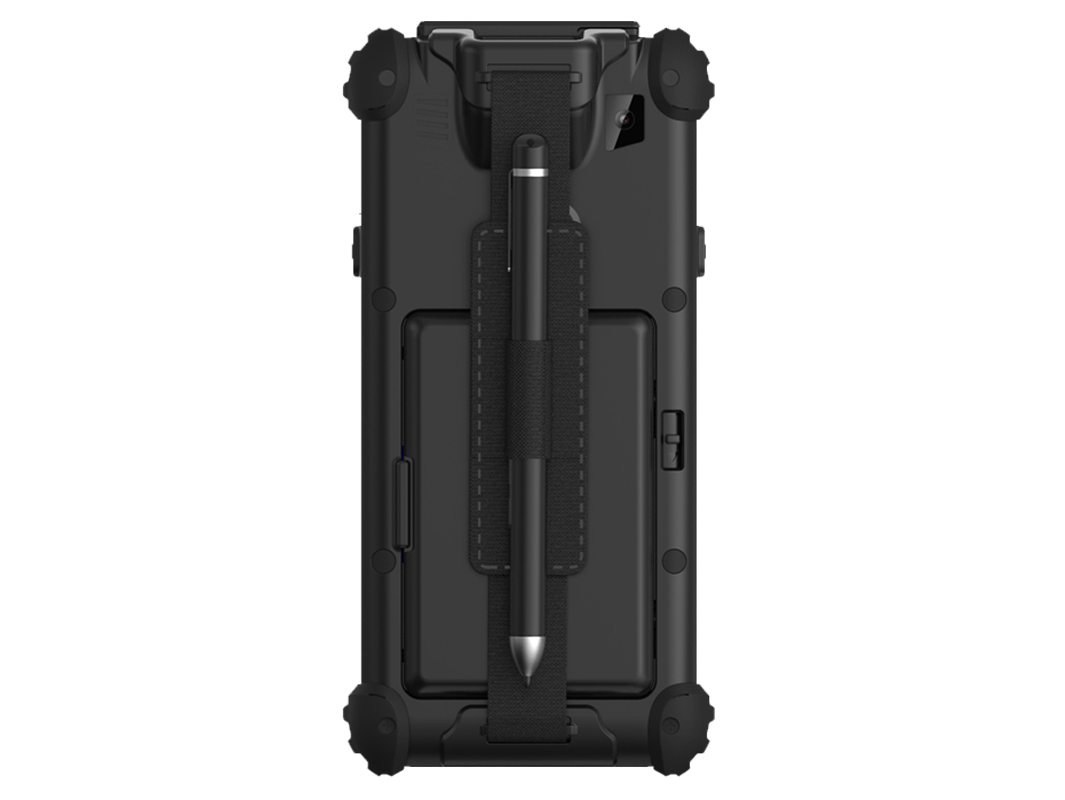

    Digital Pen
    Digital Pen

    Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

    Desktop Charging Cradle
    Desktop Charging Cradle

    Charge one DT362GL tablet and a battery pack; ports for Power, USB, and Ethernet.

    4-Bay System Gang Charger
    4-Bay System Gang Charger

    Multi-bay charger, capable of charging up to 4 tablets simultaneously.

    6-Bay Battery Gang Charger
    6-Bay Battery Gang Charger

    Multi-bay charger, capable of charging up to 6 battery packs simultaneously.

    Trigger Grip for Barcode Scanner.png
    Trigger Grip for Barcode Scanner

    Triggers the barcode scanner module.

    Trigger Grip for UHF RFID Reader and Barcode Scanner
    Trigger Grip for UHF RFID Reader

    Supports 30 feet UHF RFID Reader read distance.

    Charging Cradle for UHF RFID Reader Trigger Grip
    Charging Cradle for UHF RFID Reader Trigger Grip

    Charges the trigger grip with DT362 tablet.

    Charging Cradle for UHF RFID Reader Trigger Grip
    Charging Cradle for Trigger Grip

    Supports to charge the trigger grip (without the antenna) with DT362 tablet.

    Battery Packs
    Battery Packs

    3100mAh and 6200mAh battery packs.

    AC/DC Power Adapter with Power Cord
    AC/DC Power Adapter with Power Cord

    Facilitates Tablet operation or battery recharge. USB Type-C connector.

Gallery
