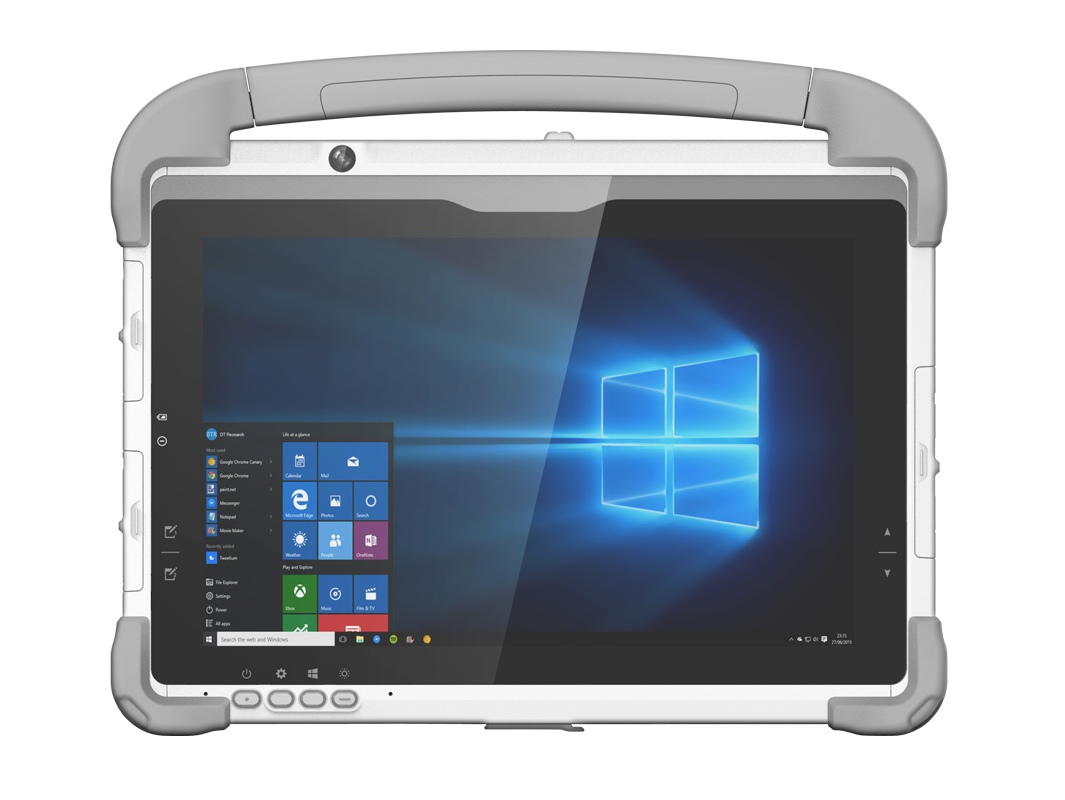

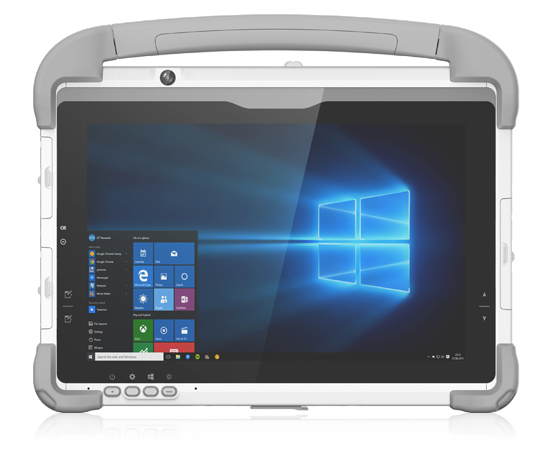

301Y/MD RUGGED 2-IN-1 MEDICAL TABLET
Slim, Antimicrobial, ANSI/AAMI ES60601-1 Certified Tablet for Efficient Operations
The 301Y/MD Rugged 2-in-1 Medical Tablet features the integration of a brilliant 10.1" capacitive touch screen and a high performance, energy-efficient Intel® Core™ i series processor within a slim, lightweight, durable package. With built-in front and back cameras, Wi-Fi as well as optional data capture modules, this medical tablet offers health professionals an effective tool to monitor, record and retrieve patient information.
Product ConfiguratorFeatures
- 10.1" Full-HD capacitive touch screen, 800 nits, digital pen support
- Intel® Core™ i5/i7 processor
- Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu operating system
- NIST compliant BIOS available
- Energy Star 8.0 certified
- ANSI/AAMI ES60601-1 certified with antimicrobial enclosure
- Docking keyboard option for 2-in-1 (tablet/ laptop) applications
- Hot swappable battery pack
- IP65-rated for water and dust resistance
- MIL-STD-810G for shock and vibration protection
- Built-in front and back cameras
- Built-in smart card/CAC reader
Major Options
- Barcode scanner
- NFC/RFID reader
- 4G LTE/AWS
Specifications
System
-
CPU
Intel® Core™ i5-1135G7, 4-Core, up to 4.2 GHz
Intel® Core™ i7-1165G7, 4-Core, up to 4.7 GHz -
RAM
8GB to 16GB
-
Storage
256GB to 512GB Flash
-
Operating System
Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu
-
NIST Compliance
NIST Compliant BIOS Available
-
Display
10.1” LED-backlit, High-Brightness (800 nits) Touchscreen
-
Display Resolution
1920 x 1200
-
WLAN
Wi-Fi 802.11ax, Wi-Fi 802.11ax, 2.4/5 GHz Dual Band
-
Control Switch and Buttons
1 Power Button, 2 Brightness Control Buttons, 5 Programmable Buttons
-
Microphone
Built-In Microphone
-
Speaker
Built-In Speaker
-
Camera
5 MP Front Camera & 8 MP Back Camera

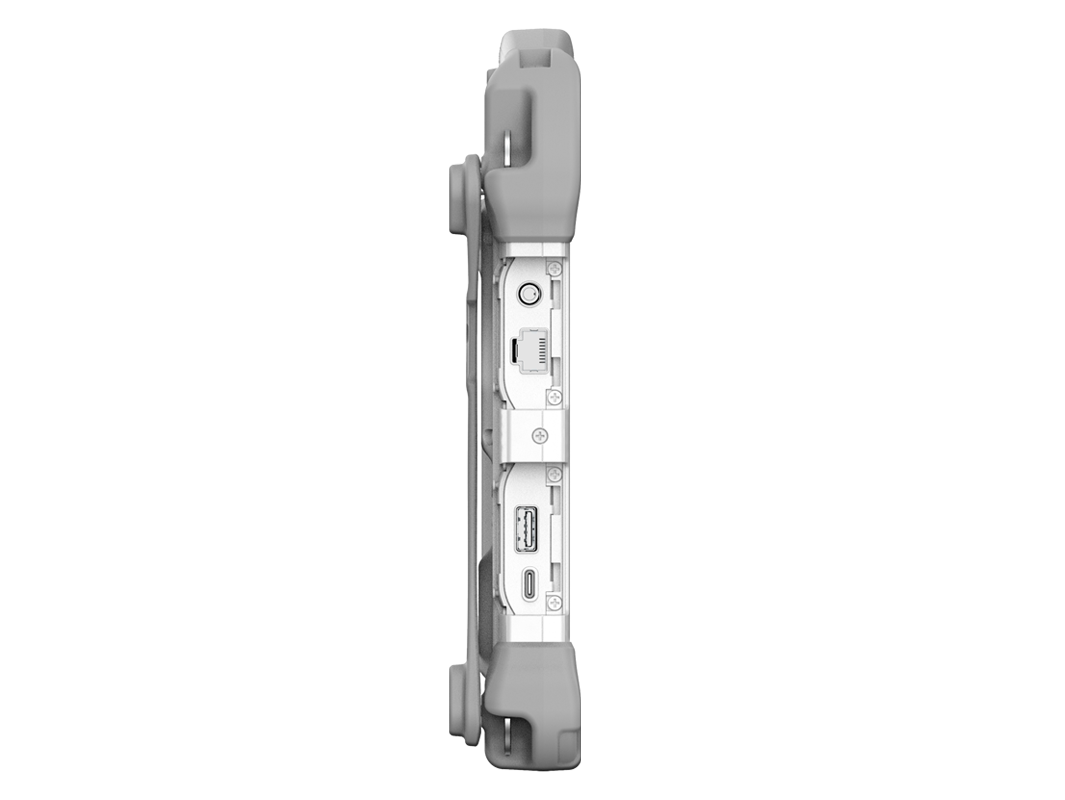

I/O INTERFACES
-
USB Port
1 x USB 3.0, 1 x USB Type-C
-
Headset Jack
1 (3.5 mm)
-
Ethernet
1 (RJ45)
-
DC-In
1
-

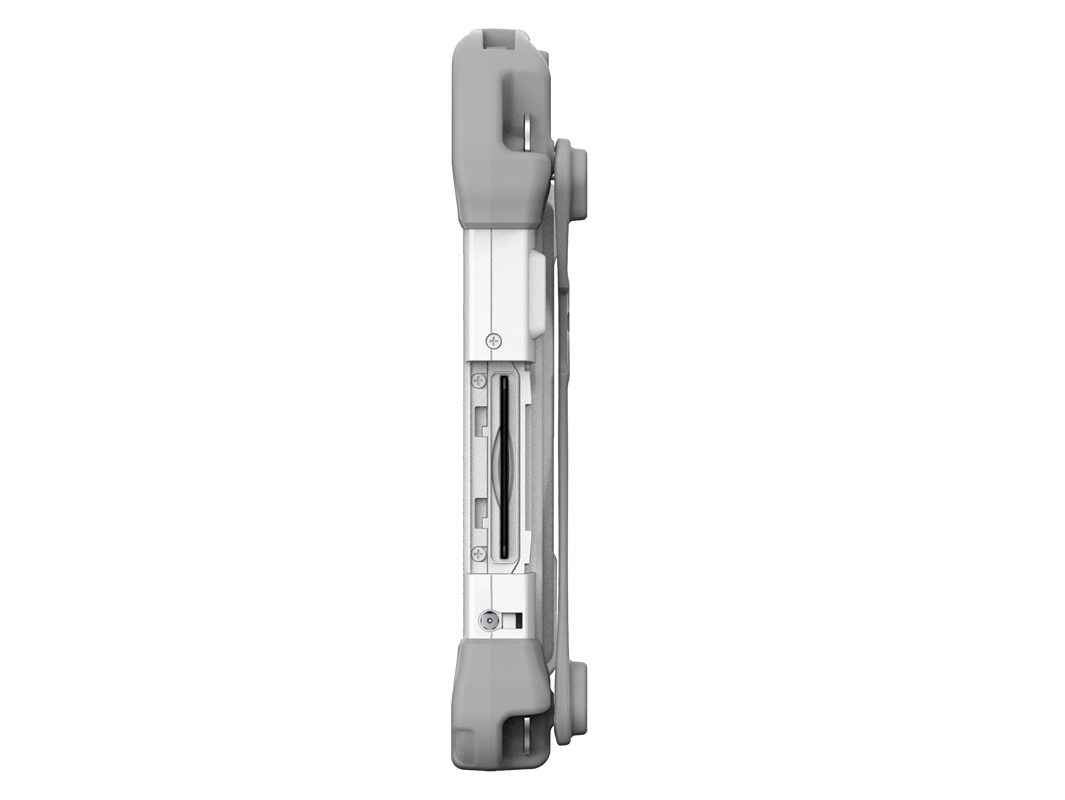

Smart Card/CAC Reader
Full Slot (Reads ISO 7816 T=0, T=1); 1.8/3/5V Smart Card
MECHANICAL AND ENVIRONMENTAL
-
AC/DC Adapter
Input: 100-240V AC; Output: 19V DC, 3.42A
-
Battery Pack
Hot-Swappable Battery (5400mAh)
-
Enclosure
ABS + PC plastics and magnesium-aluminum alloy; antimicrobial enclosure
-
Dimensions (H x W x D)
7.8 x 11 x 0.86 in/198 x 280 x 21.9 mm
-
Weight
3.1 lbs/1.4 kg
-
Durability
IP65 and MIL-STD-810G Certified
-
Regulatory
FCC/IC, CE/CB, RCM, ANSI/AAMI ES60601-1, Energy Star 8.0
-
Temperature
Operation*: -10°C to 60°C (14°F to 140°F),
Optional: -30°C to 60°C (-22°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
*For battery safety and optimal functionality and performance, the recommended usage temperature range is from -10°C to 45°C (14°F to 113°F) -
Humidity
0% – 90% Non-Condensing
MAJOR OPTIONS SPECS
-
BARCODE SCANNER
2D Barcode Scanner (Reads 1D & 2D)
-
NFC/RFID READER
HF 13.56 MHz, ISO 15693, 14443A(B) & 18000-3 Mode 1
-
MOBILE BROADBAND
4G LTE/AWS
Accessories

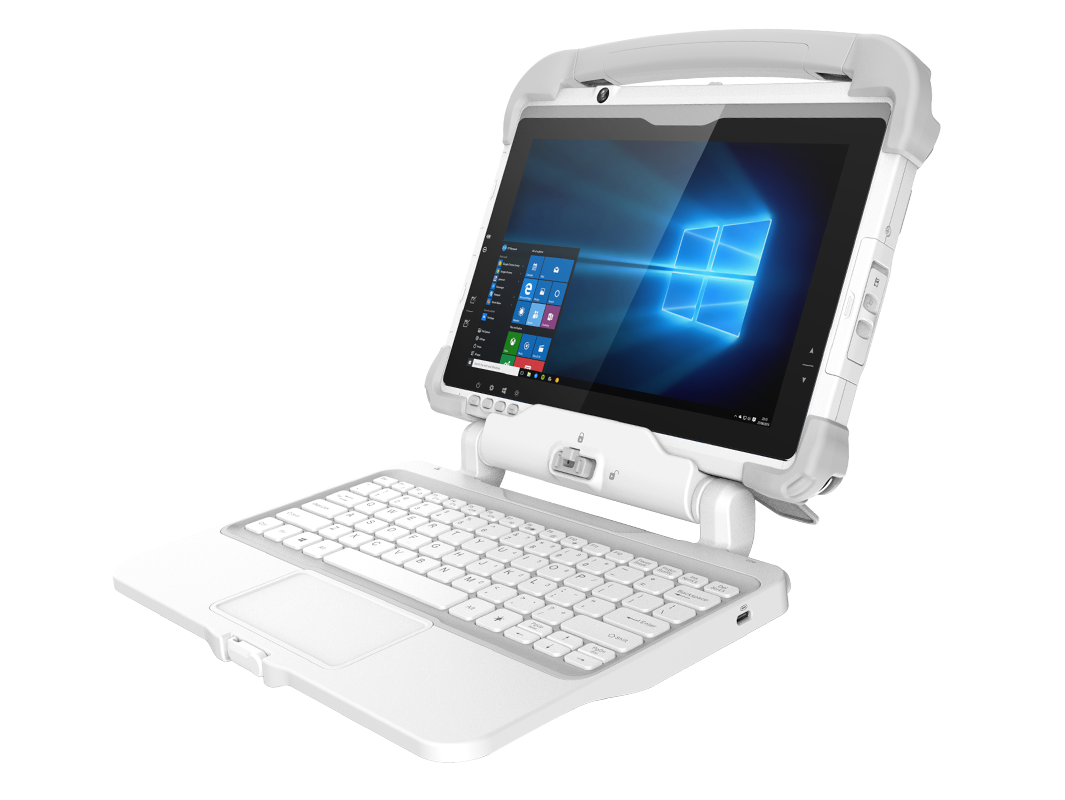

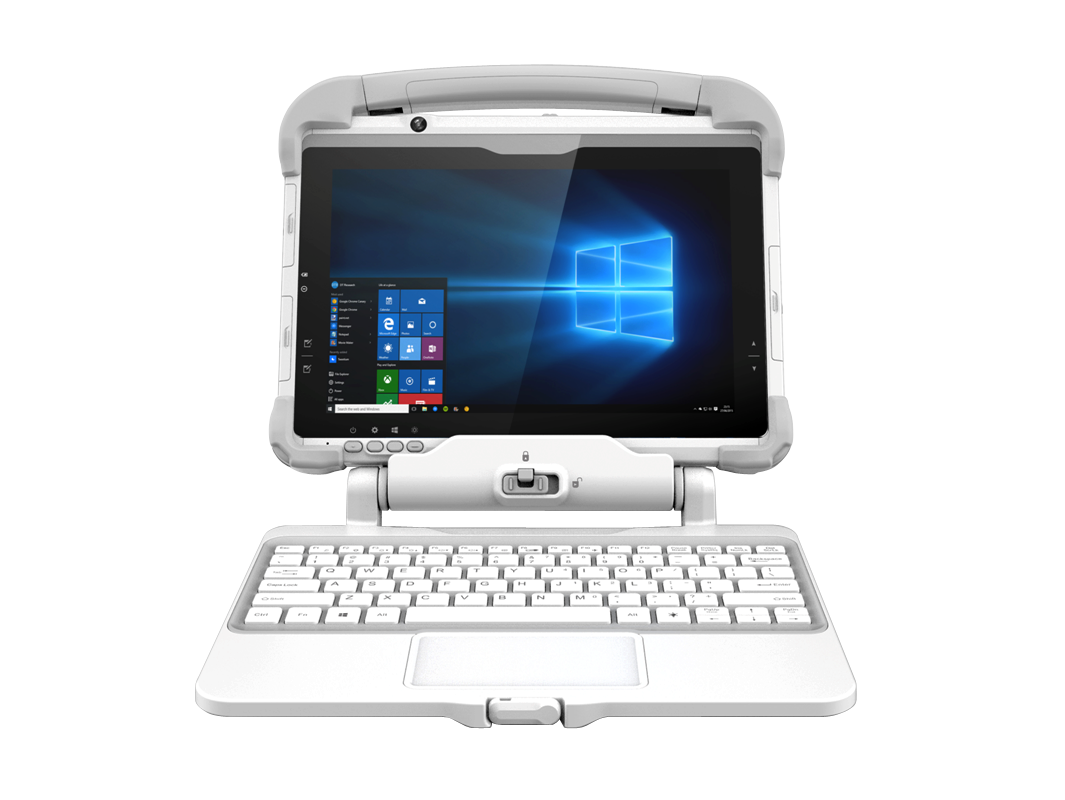

Docking Keyboard
With power and I/O ports; instantly pairs, ideal for 2-in-1 applications.

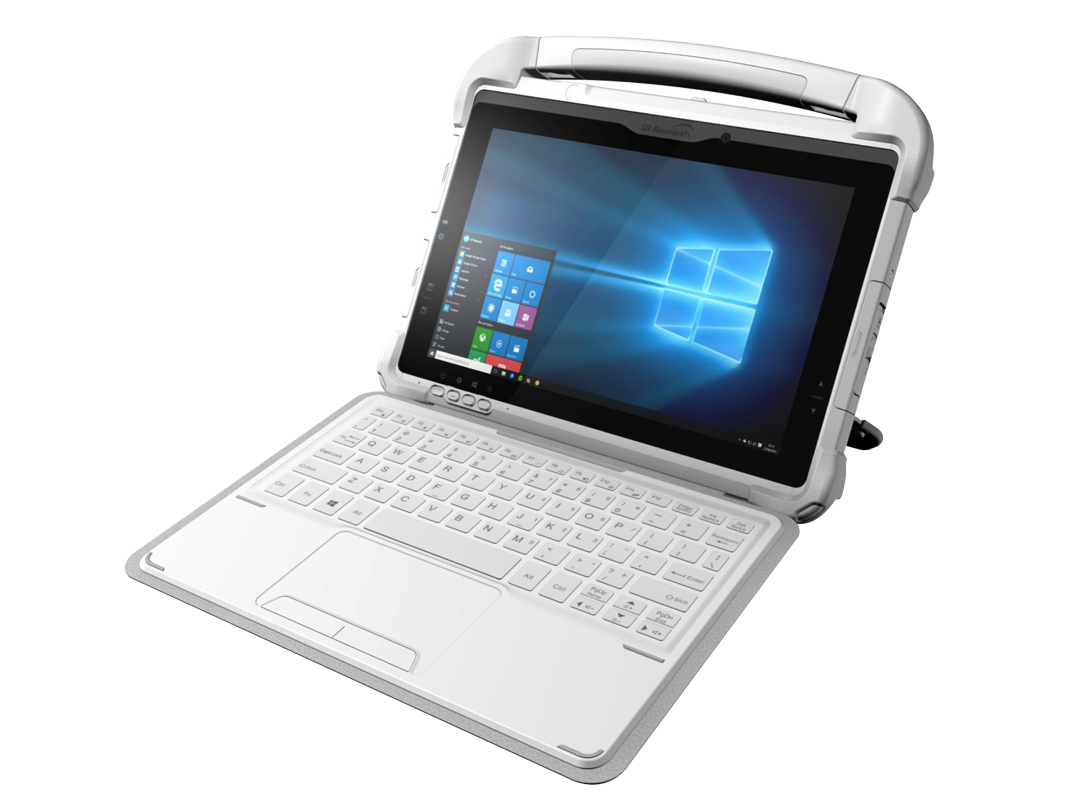

Detachable Slim Keyboard
Slim and lightweight with magnetic hinge to effortlessly attach/detach to the 301Y/MD rugged tablet.

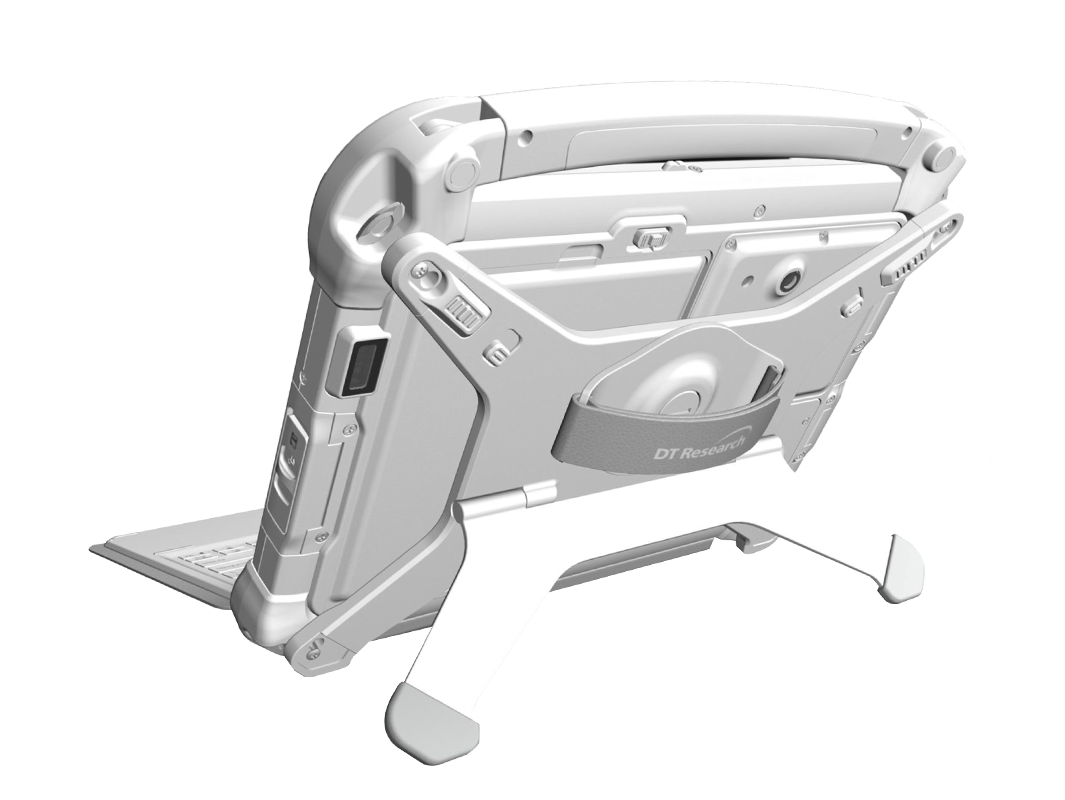

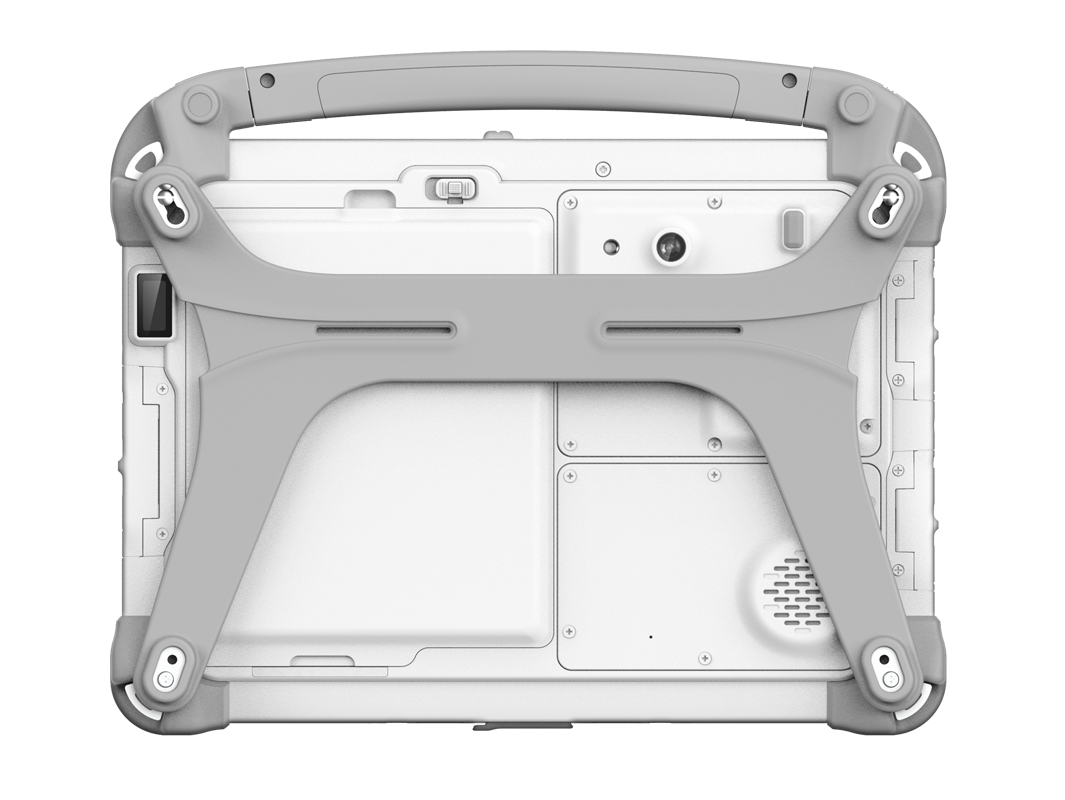

Handstrap with Kickstand
With rotatable, adjustable handstrap and foldable kickstand.
Battery Gang Charger
Simultaneously charge 6 external batteries.
Digital Pen
Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.
Desktop Charging Cradle
With alternative DC-IN and Type-C power input options and a comprehensive set of I/O interfaces for Ethernet, HDMI, USB, and COM.
Tablet Mount Cradle
Offers Tablet storage and security with power supply and I/O ports.
Battery Charger Kit with AC Adapter and Power cord
Recharges battery pack "offline" without affecting tablet use.
AC/DC Power Adapter with Power Cord
Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).
Battery Pack
Hot swappable, 60W.
3-Slot Battery Holster
Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
10.1”/11.6”/13.3” Screen Protector
User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
