581T

All-in-One Computer with Integrated Swappable Batteries for Point-of-Care Applications

Powered by a powerful Intel® Pentium® Gold or Core™ i processor, the 581T All-in-One Medical-Cart Computer features a 19.5” easy-to-read display to provide at-a-glance examination to ensure efficient operation. With the optional hot-swappable batteries, patient data can be managed fluidly without operations being interrupted due to the act of replacing batteries, while the VESA standard mounting design makes installation an effortless task. The built-in Wi-Fi and other optional data-capture modules further improve the point-of-care process. With these extensive features, the 581T is ideal for hospitals and clinics in any point-of-care scenarios.

Product Configurator

Features

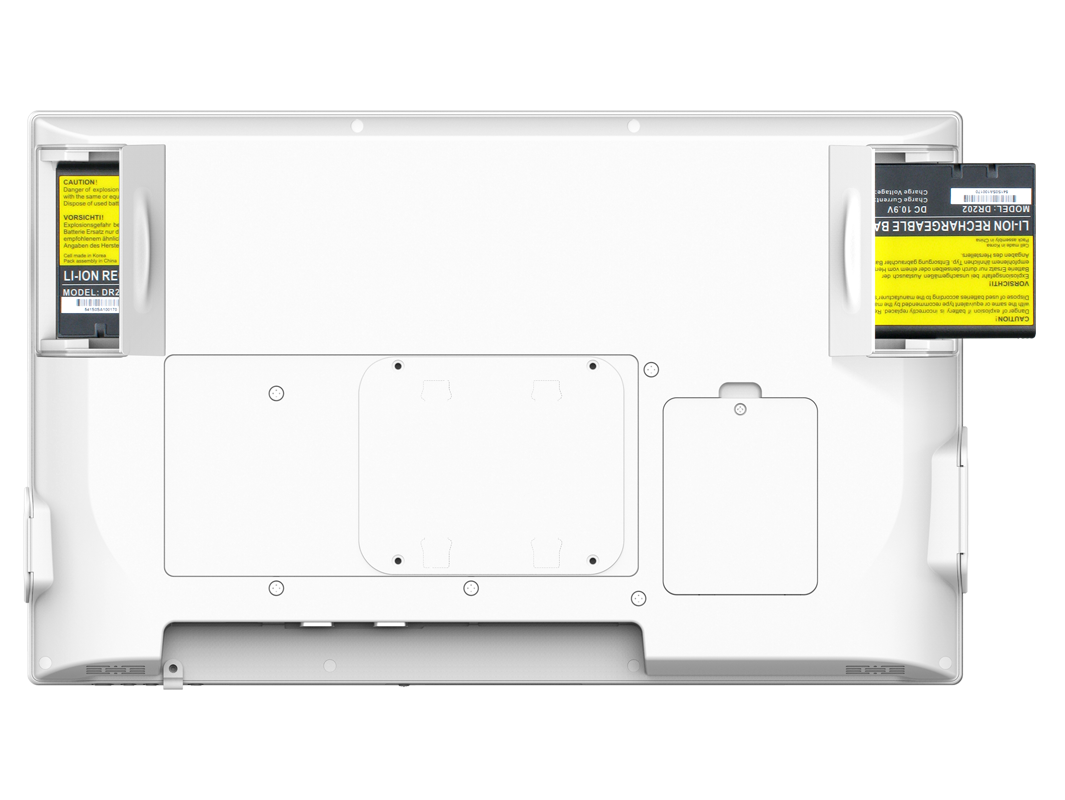

  • Integrated hot-swappable batteries (optional, up to 2 batteries)
  • 19.5” high-resolution touchscreen
  • Intel® Pentium® Gold or Core™ i processor
  • Microsoft® Windows® 10/11 IoT Enterprise operating system
  • Fanless, space-saving all-in-one design with antimicrobial enclosure
  • VESA compatibility to maximize installation flexibility
  • Built-in LED reading light
  • HDMI video-out, support up to 4K UHD resolution
  • ANSI/AAMI ES60601-1 certified, IP65-rated front panel, IPX2-rated enclosure

Major Options

  • 5M front camera
  • Smart card/CAC reader
  • AG Display

Specifications

System
  • CPU

    Intel® Pentium® Gold-G6400T, 2-Core, 3.4 GHz
    Intel® Core™ i5-10500T, 6-Core, 2.3 GHz (up to 3.30 GHz)
    Intel® Core™ i7-10700T, 8-Core, 2 GHz (up to 3.40 GHz)

  • RAM

    8GB to 32GB

  • Storage

    64GB to 2TB Flashh

  • Operating System

    Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu

  • Display

    19.5" Touchscreen

  • Display Resolution

    1920 x 1080

  • Network Interface

    Ethernet 10/100/1000 MB Base-T LAN; Wi-Fi 802.11ax, 2.4/5 GHz Dual Band

  • BT

    BT 5.2

  • Trusted Platform Module

    TPM 2.0

  • Control Buttons

    1 x Power Button, 4 x Functional Buttons, 1 x Reading Light On/Off Button

  • Reading Light

    1 x LED Reading Light

  • Microphone and Speaker

    Built-In Microphones & Speaker

I/O PORTS
  • USB Port

    4 x USB 3.0, 2 x USB 2.0

  • COM Port

    2

  • HDMI Port

    1

  • Audio Jack

    1 (3.5 mm)

  • Ethernet Port

    1 (RJ45)

  • DC-In Jack

    1

  • DC-out (optional)

    N/A

MECHANICAL AND ENVIRONMENTAL
  • Fan/Fanless

    Fanless

  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 19V DC, 6.31A

  • Battery Pack

    (Optional) 2 x Li-Ion Battery (8250mAh, 90Wh)

  • Enclosure

    ABS + PC Plastic with Antimicrobial Coating

  • Dimensions (H x W x D)

    11.6 x 18.9 x 1.6 in/295 x 480 x 40.6 mm

  • Weight
    (Without battery)

    10.41 lbs/4.72 kg

  • Weight
    (With 3 batteries)

    12.61 lbs/5.72 kg

  • Water Resistance

    Front Panel: IP65

  • VESA-compliant Mounting

    100 × 100 mm VESA Standard

  • Regulatory and Safety Certifications

    ANSI/AAMI ES60601-1, IEC60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, GB 17625.1, GB 4943.1, GB/T 9254, CE-EMC, CE-RED, RCM, CCC

  • Temperature

    Operation: 0°C – 40°C; Storage: -20°C – 60°C

  • Humidity

    0% – 90% non-condensing

MAJOR OPTIONS SPECS
  • CAMERA

    5M Front Camera

  • NFC/RFID READER

    N/A

  • Smart Card/CAC Reader

    Full-Slot (Reads ISO 7816 T=0, T=1 & 1.8/3/5V Smart Card)

Accessories

    Medical Grade AC Adapter with Power Cord
    Medical Grade AC Adapter with Power Cord

    Facilitates system operation and/or battery recharge.

    Hot-swappable Battery
    Hot-swappable Battery

    DR202; 90W, 8250mAh battery.

    4-Bay Gang Charger
    6-Bay Gang Charger

    Available for charging up to six DR202 batteries.

    Desktop Stand for DT59X series
    Desktop Stand for Medical-Cart Computers

    VESA-compliant mounting with metal construction. MD-white color.

    Battery Holster
    3-Slot Battery Holster

    Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).

    Battery Holster
    Battery Holster

    Supplies powers to the peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
