502T
Medical-Grade All-in-One Computer for Point-of-Care Solutions
Powered by a high-performance Intel® Core™ i or Pentium® processor, the 502T medical all-in-one system features a 21.5” TFT-LCD and a fanless, slim, and bacteria-resistant enclosure, making it ideal for various medical and healthcare applications. While the space-saving design makes the Medical-Grade Integrated LCD System easily fit into any point-of-care scenarios, its built-in Wi-Fi and BT connectivity further enables health professionals to effortlessly and efficiently monitor, record and manage patient data.
Product ConfiguratorFeatures
- 21.5" high-resolution touchscreen
- Intel® Core™ i or Pentium® processor
- Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu operating system
- Elegant all-in-one, slim, fanless design with antimicrobial enclosure
- VESA mounting compatibility for easy installation and optimized mobility
- IP65-rated front panel with IPX2-rated enclosure
- Energy Star 8.0 certified
Major Options
- Integrated UPS battery
- 5M front camera
- Smart card/CAC reader
- AG Display
Specifications
System
-
CPU
Intel® Pentium® Gold-G6400T, 2-Core, 3.4 GHz
Intel® Core™ i5-10500T Processor (up to 3.30 GHz)
Intel® Core™ i7-10700T Processor (up to 3.40 GHz)
-
RAM
8GB to 64GB
-
Storage
256GB to 4TB Flash
-
Operating System
Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu
-
Display
21.5" Touchscreen
-
Display Resolution
1920 x 1080
-
Battery Pack
Optional integrated UPS battery x 1
-
WLAN
Wi-Fi 802.11ax, 2.4/5 GHz Dual Band
-
BT
Yes
-
Control Button
1 x Power Button, 4 x Programmable Buttons
-
Speaker and Microphone
Built-In Microphones & Speaker

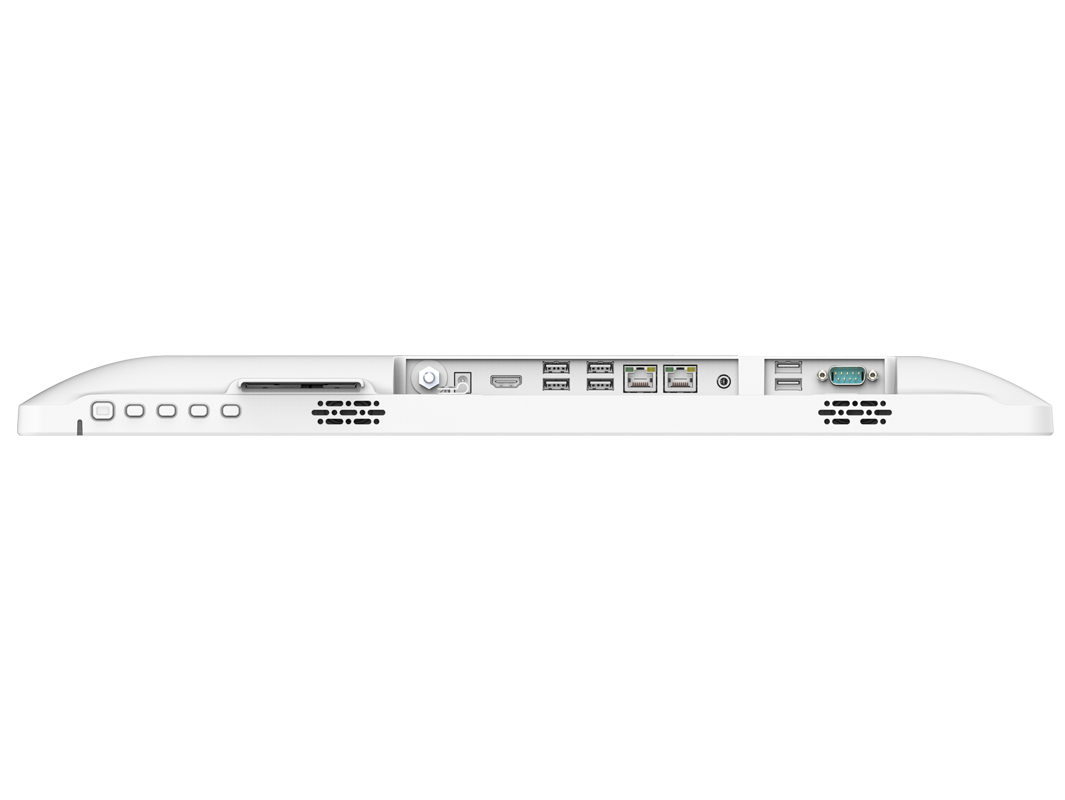

I/O INTERFACES
-
USB Port
4 x USB 3.0, 2 x USB 2.0
-
COM Port
1 (Optional: 2 Extra COM Ports)
-
Headphone Jack
1 (3.5 mm)
-
HDMI-out
1 (ESD protection:±17KV by air, ±12KV by contact)
-
Ethernet
2 (ESD protection: ±30KV by air, ±30KV by contact)
-
DC-In Jack
1
-
Potential Equalization Conductor
1 (optional)
MECHANICAL AND ENVIRONMENTAL
-
Fan/Fanless
Fanless
-
AC/DC Adapter
Input: 100-240V AC; Output: 19V DC, 6.31A
-
Enclosure
ABS Plastic, Antimicrobial Enclosure
-
VESA-compliant Mounting
100 × 100 mm VESA Standard
-
Dimensions (H x W x D)
20.4 x 12.8 x 1.6 in/518 x 324 x 40 mm
-
Weight
13.4 lbs/6.08 kg
-
Water Resistance
Front panel: IP65
Enclosure: IPX2 -
Regulatory
ANSI/AAMI ES60601-1, IEC60601-1, IEC60601-1-2, FCC Part 18, FCC Part 15 Class B, GB 17625.1, GB 4943.1, GB/T 9254, CE-EMC, CE-RED, RCM, Energy Star 8.0, CCC
-
Temperature
Operation: 0°C to 40°C (32°F to 104°F);
Storage: -20°C to 60°C (-4°F to 140°F) -
Humidity
0% – 90% non-condensing
MAJOR OPTIONS SPECS
-
CAMERA
5M Front Camera
-
Smart Card/CAC Reader
Full-Slot (ISO 7816 T=0, T=1 & 1.8/3/5V Smart Card)
-
NFC/ RFID READER
N/A
Accessories

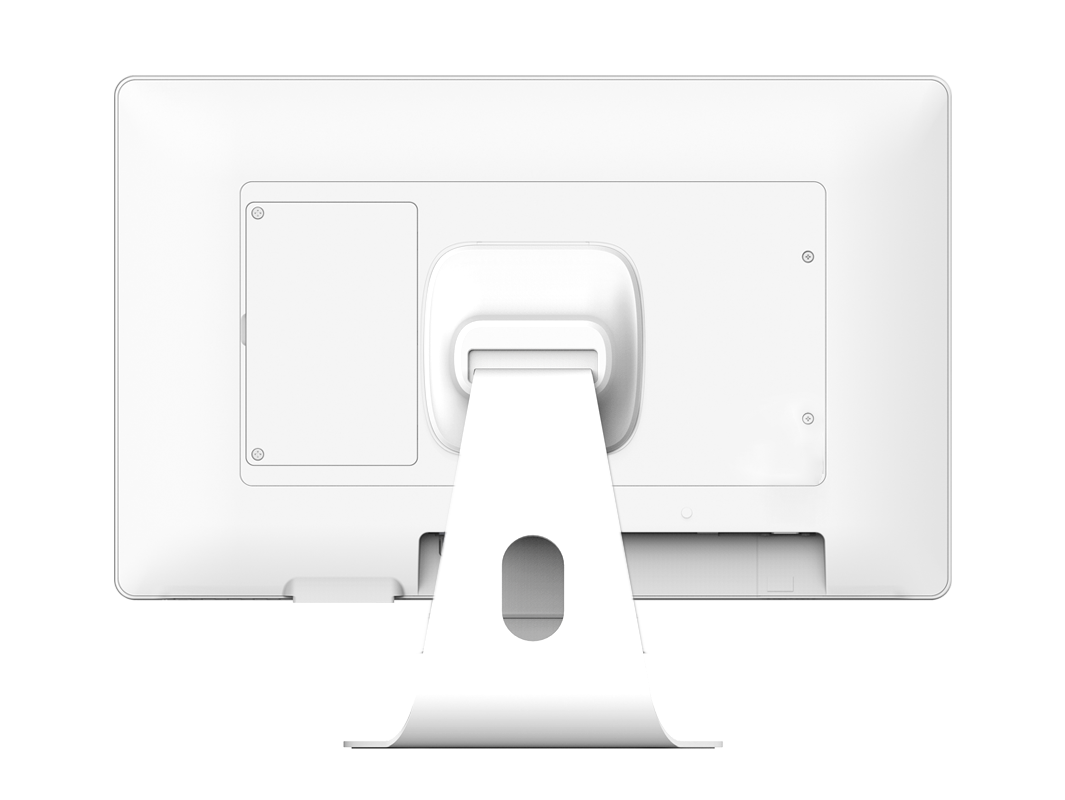

Desktop Stand for Medical AIO
Detachable, metal construction. MD-white color.
Medical Grade AC Adapter with Power Cord
Facilitates system operation and/or battery recharge.
6-Bay Gang Charger
Available for charging up to six batteries.
Hot-swappable Battery
90W, 8250mAh battery.
3-Slot Battery Holster
Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
Battery Holster
Supplies powers to the peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
