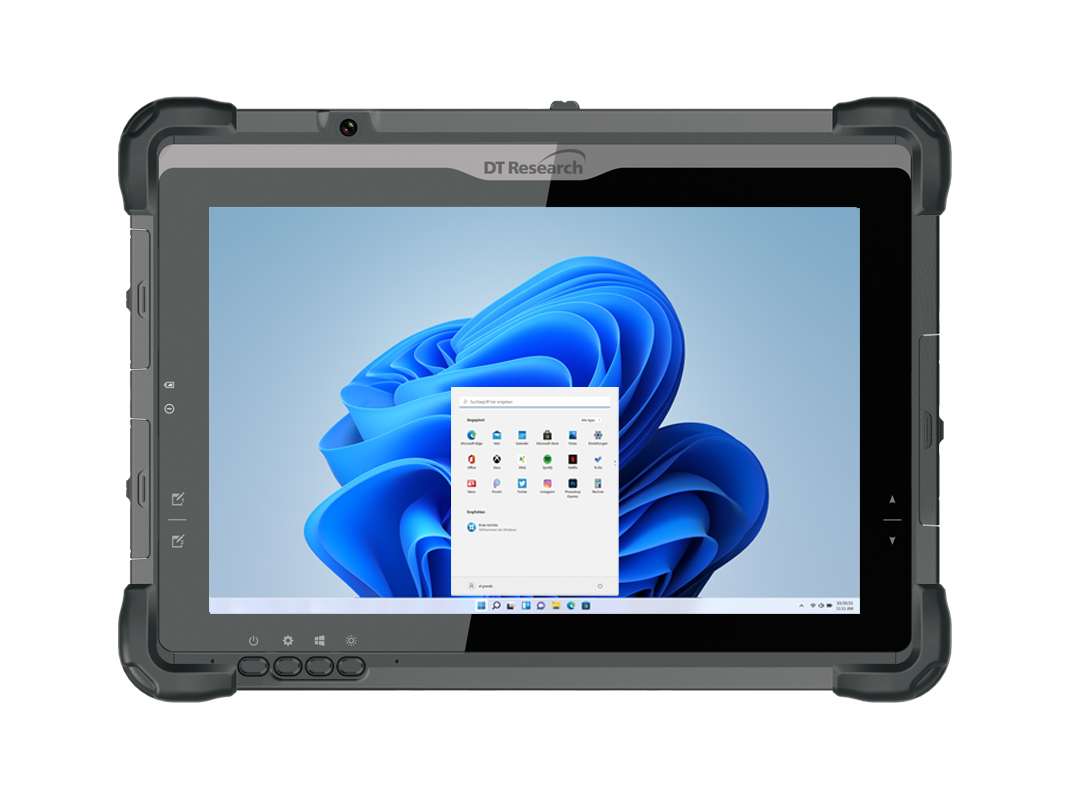

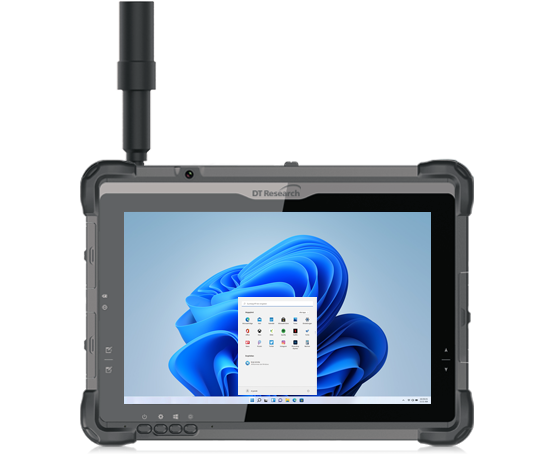

DT301Y-TR GNSS TABLET

Slim, Rugged, Multi-functional Wireless Computing

The DT Research DT301Y-TR Rugged GNSS Tablet features the integration of a large 10.1” capacitive touch screen, a powerful Intel^® Pentium^® processor, and the positioning receiver within a compact, lightweight yet durable package. With Windows_® operating system and network connection, this tablet is compatible with existing GIS software for mapping applications and brings together the advanced workflow for GIS data capture, accurate positioning, and data transmitting. Rated IP65, MILSTD-810H and MIL-STD-461F, the DT Research DT301Y-TR Rugged GNSS Tablet provides real-time survey grade control points for field applications.

Product Configurator

Features

10.1" Full-HD capacitive touch screen, 800 nits, digital pen support
Intel^® Pentium^® Gold 7505 processor
Microsoft_® Windows_® 10/11 IoT Enterprise operating system
NIST compliant BIOS available
High capacity, hot-swappable battery pack
Built-in survey-grade dual-frequency GNSS module
Anti-microbial coating
IP65 rated, MIL-STD-810H and MIL-STD-461F certified
HERO (Hazard of Electromagnetic Radiation to Ordnance) certified

Major Options

Front and back cameras
2D barcode scanner; reads 1D also
4G LTE/AWS

Specifications

System

CPU

Intel^® Pentium^® Gold 7505, 2-Core, up to 3.5 GHz
RAM

8GB to 32GB
Storage

256GB to 2TB flash
Operating System

Microsoft_® Windows_® 10/11 IoT Enterprise
NIST Compliance

NIST compliant BIOS available
Display

10.1” LED-backlight, high-brightness (800 nits) screen with capacitive touch, outdoor viewable
Display Resolution

1920 x 1200
WLAN

Wi-Fi 802.11ax, 2.4GHz/ 5GHz dual band
Control Switch and Buttons

1 power button, 2 brightness control buttons, 5 programmable buttons
Microphone

Built-in microphone
Speaker

Built-in speaker

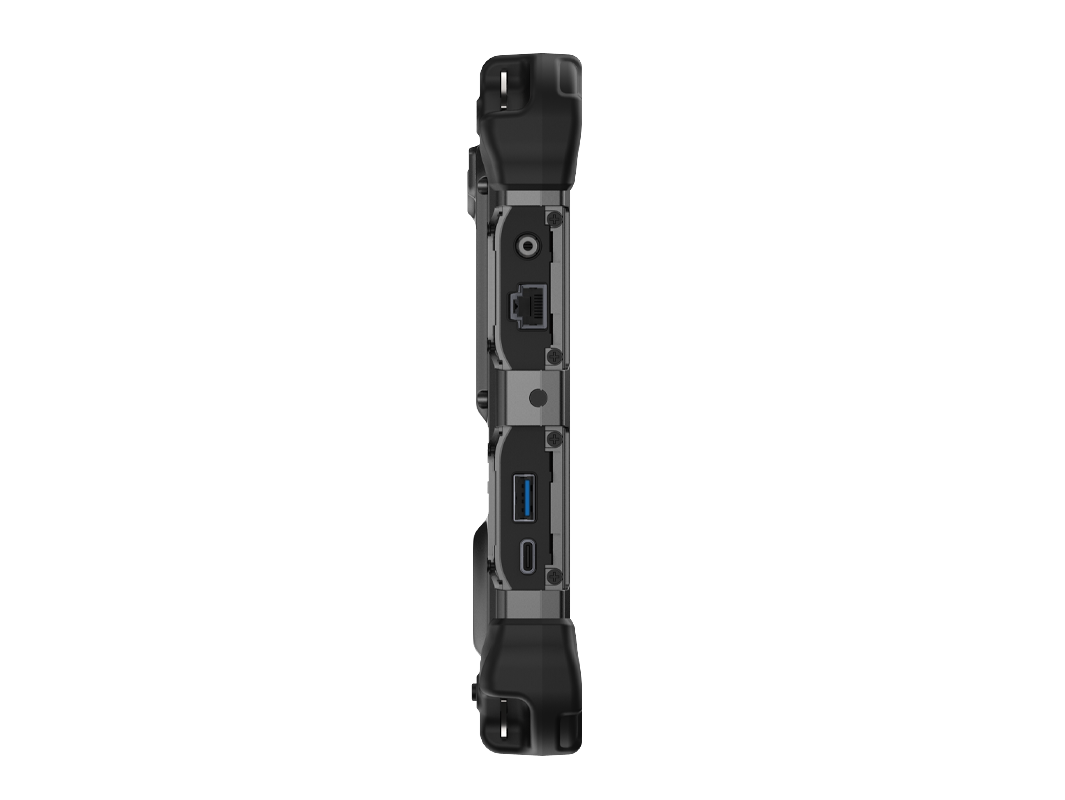

I/O PORTS

USB Port

USB 3.0 x 1
Headset Jack

1 (3.5mm)

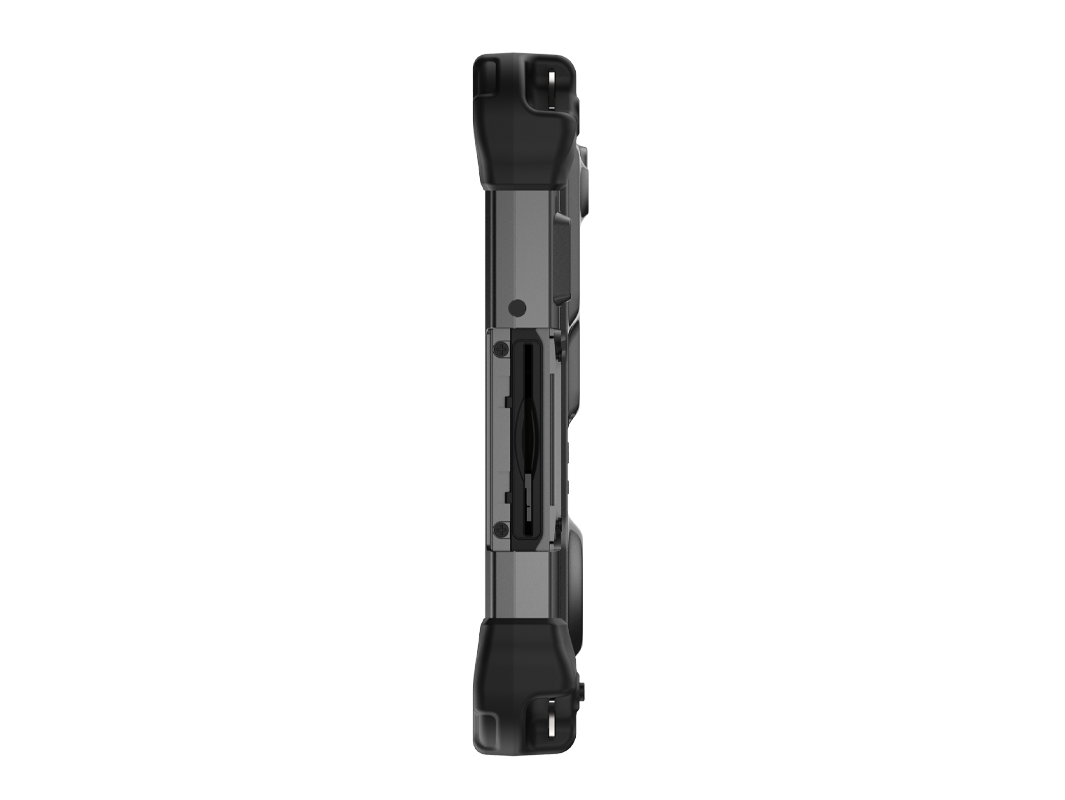

Smart Card/CAC Reader

Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
Ethernet

Ethernet 10/ 100/ 1000MB Base-T LAN
DC-in

1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 – 240V AC; Output: 20V DC, 3.25A
Battery Pack

Hot swappable battery, 11.4V, 5400mAh
Hot swappable battery, 11.4V, 8000mAh (optional)
Enclosure

ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating
Dimensions (H x W x D)

7.8 x 11 x 0.86 in/ 198 x 280 x 21.9 mm
Weight

3.1 lbs/ 1.4 kg
Durability

IP65, MIL-STD-810H and MIL-STD-461F certified
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing

Yes
Regulatory

FCC Class B, CE, RoHS compliant
Temperature

Operation*: -10°C ~ 60°C (14°F ~ 140°F), optional -30°C ~ 60°C (-22°F ~ 140°F)
Storage: -50°C ~ 70°C (-58°F ~ 158°F)
* For battery safety and optimal functionality and performance, the recommended usage temperature range is from -10°C ~ 45°C (14°F ~ 113°F)
Humidity

0% ~ 90% non-condensing

GNSS MODULE

Dual Frequency GNSS Module
Receiver Type

GNSS L1 & L2 RTK with carrier phase
Signals Received

GPS, GLONASS, BeiDou and Galileo
Channels

372
GPS Sensitivity

-142 dBm
SBAS Tracking

3-channel, parallel tracking
Update Rate

1 Hz standard, 10 Hz and 20 Hz optional

Accuracy
(Horizontal)

	RMS (67%)	2DRMS (95%)
RTK	10 mm + 1 ppm	20 mm + 2 ppm
SBAS (WAAS)	0.3 m	0.6 m
Autonomous, no SA	1.2 m	2.4 m

MAJOR OPTIONS SPECS

BARCODE SCANNER

2D barcode scanner; reads 1D also
CAMERA

2 megapixel front camera, and 8 megapixel back camera with auto focus, white balance, gain control, and exposure control
MOBILE BROADBAND

4G LTE/AWS

Accessories

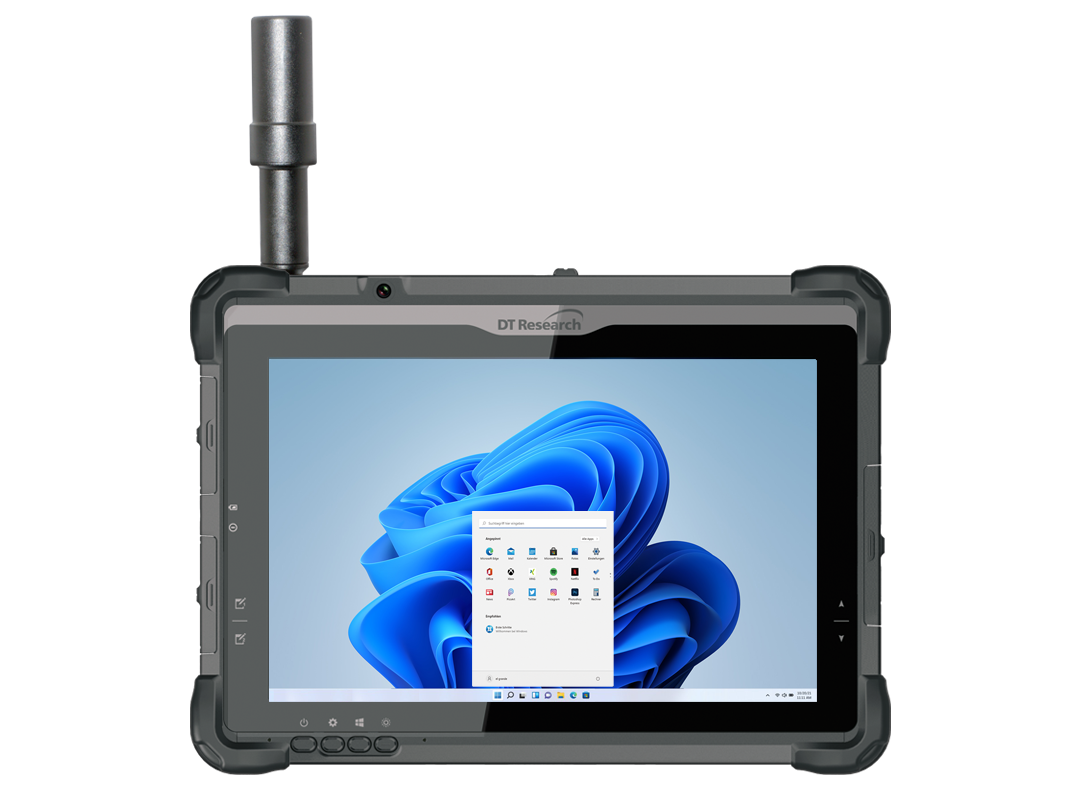

Helix Antenna

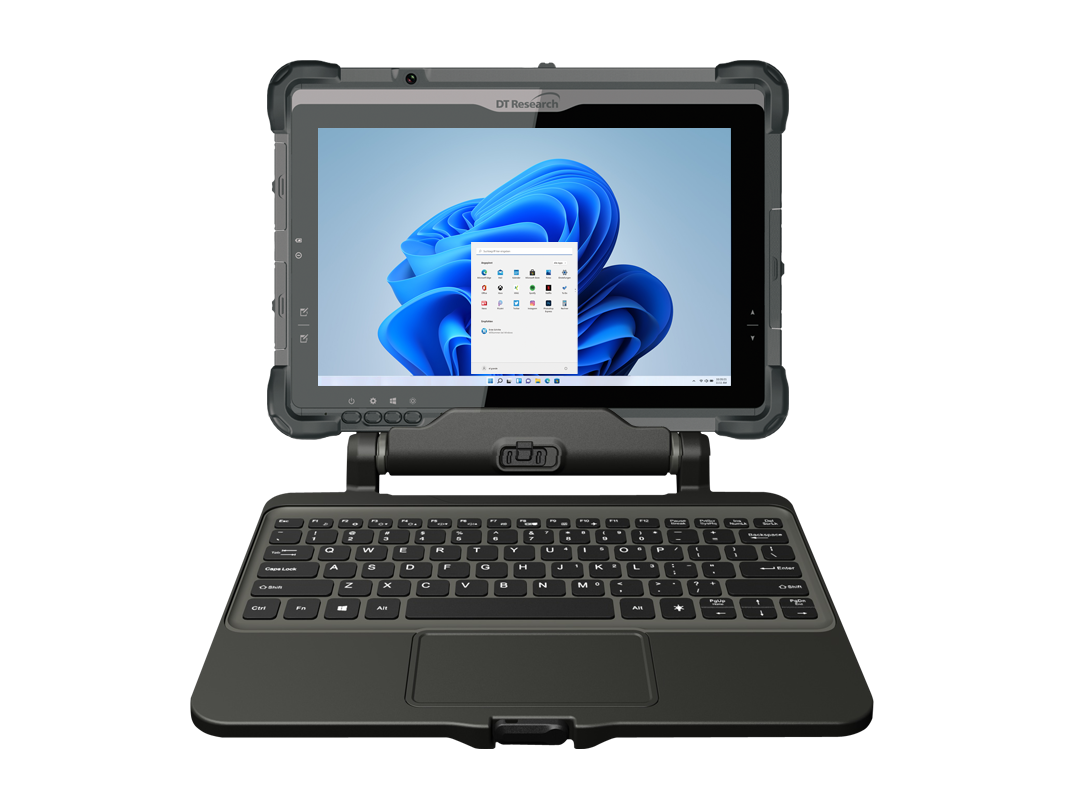

Docking Keyboard

With power and I/O ports; instantly pairs, ideal for 2-in-1 applications.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Digital Pen

Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack "offline" without affecting tablet use.

10.1”/11.6”/13.3” Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
