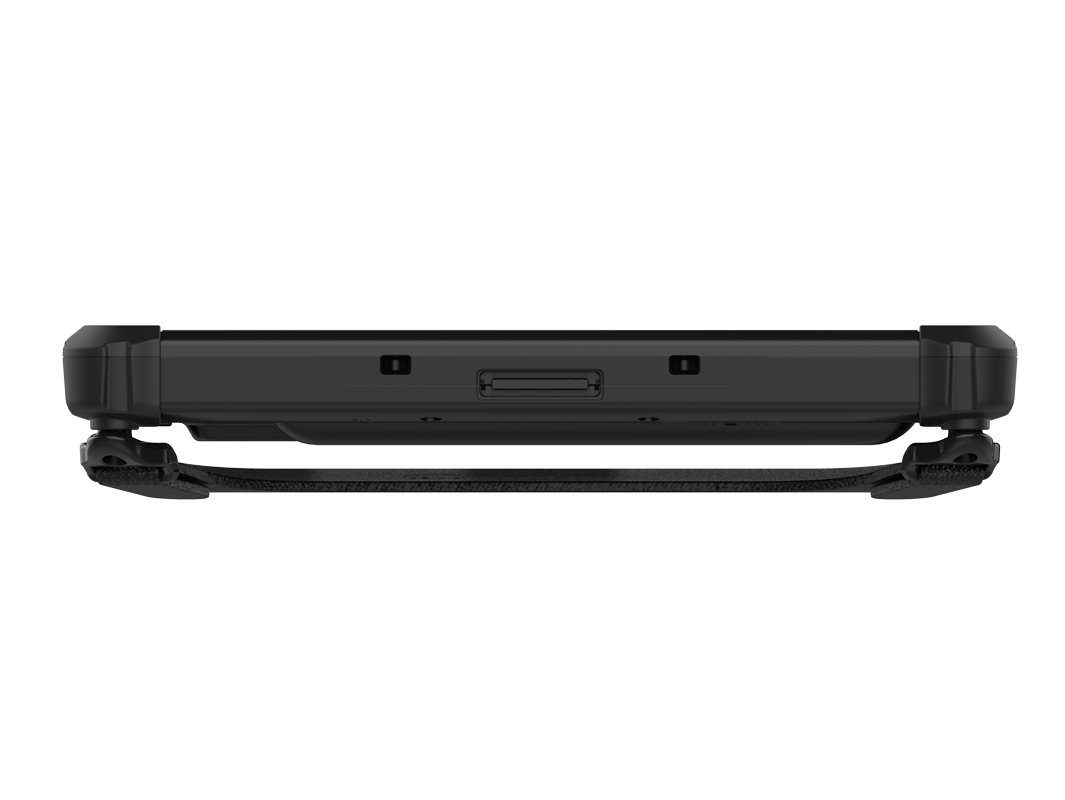

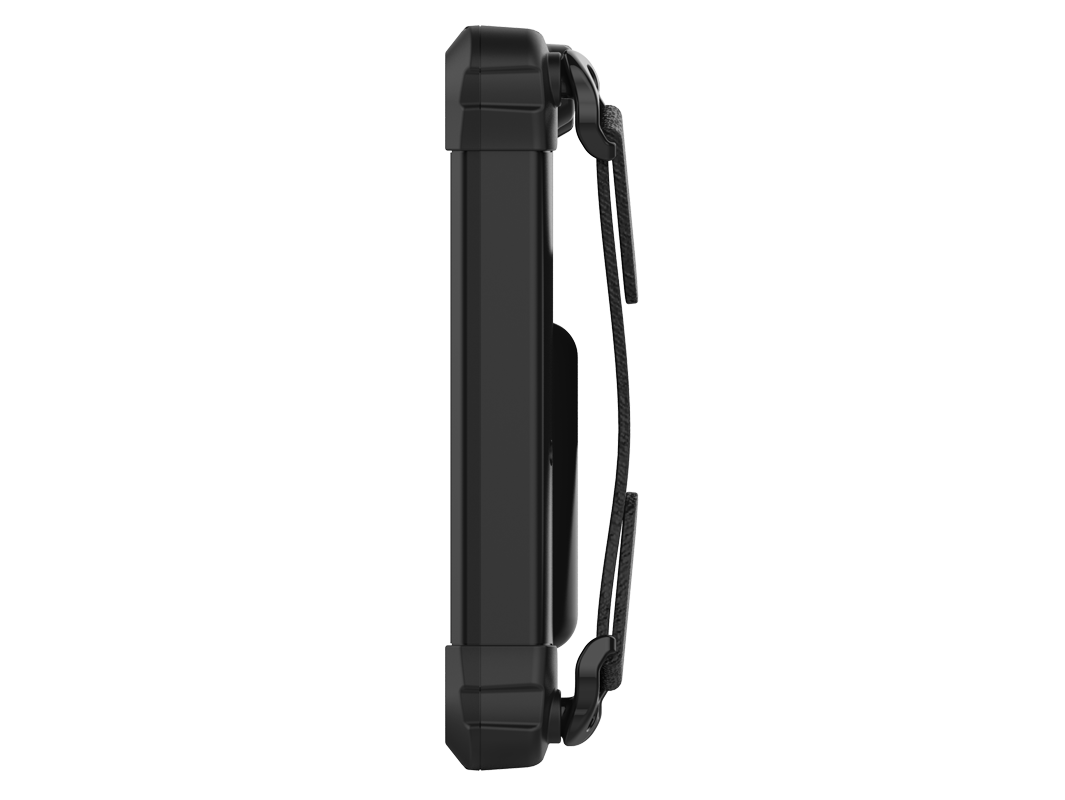

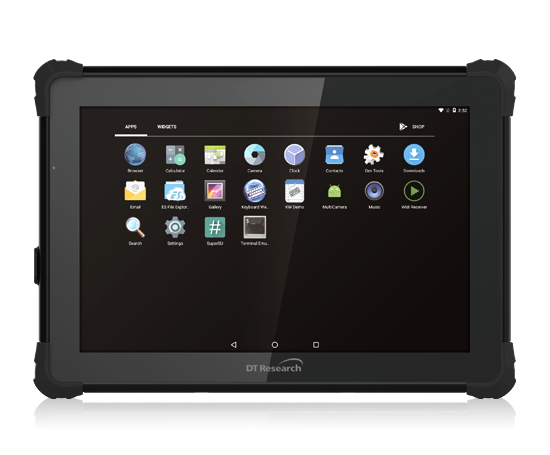

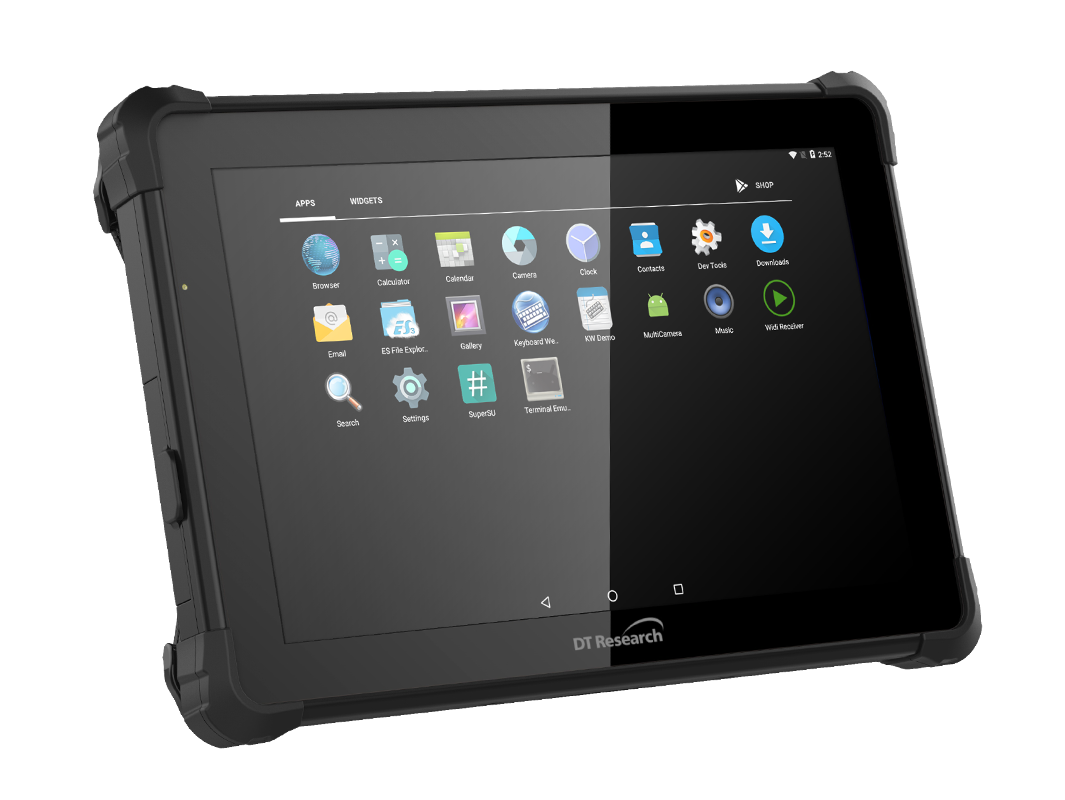

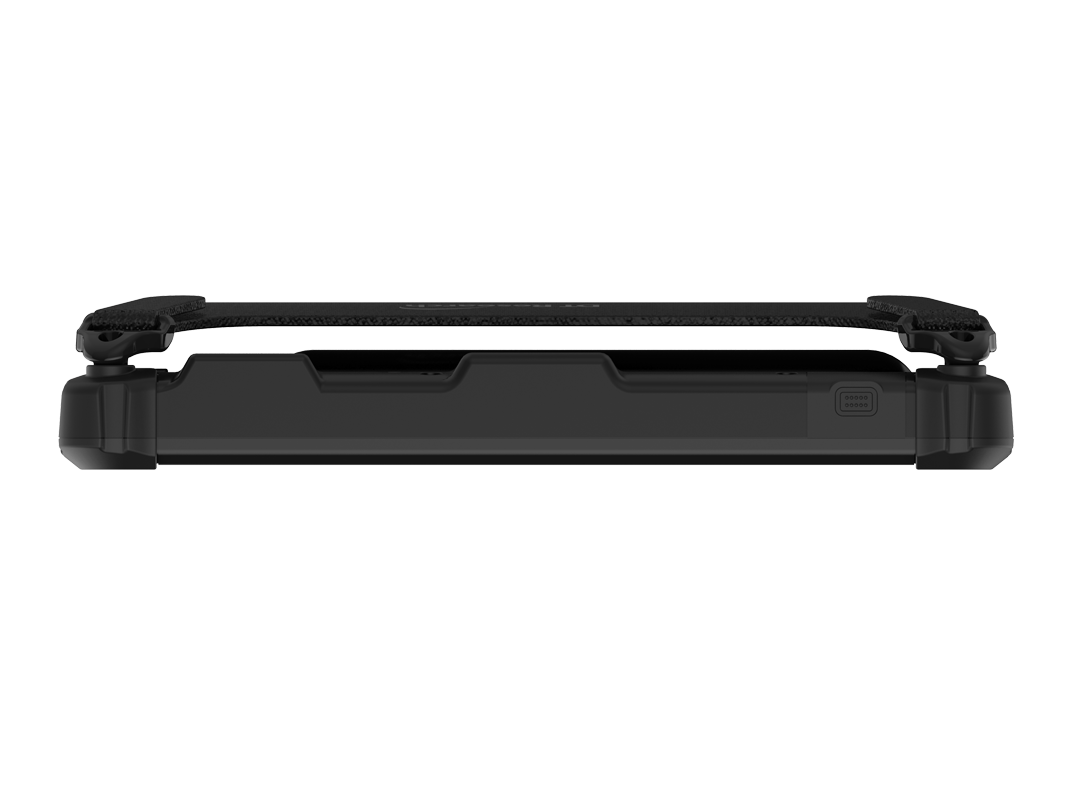

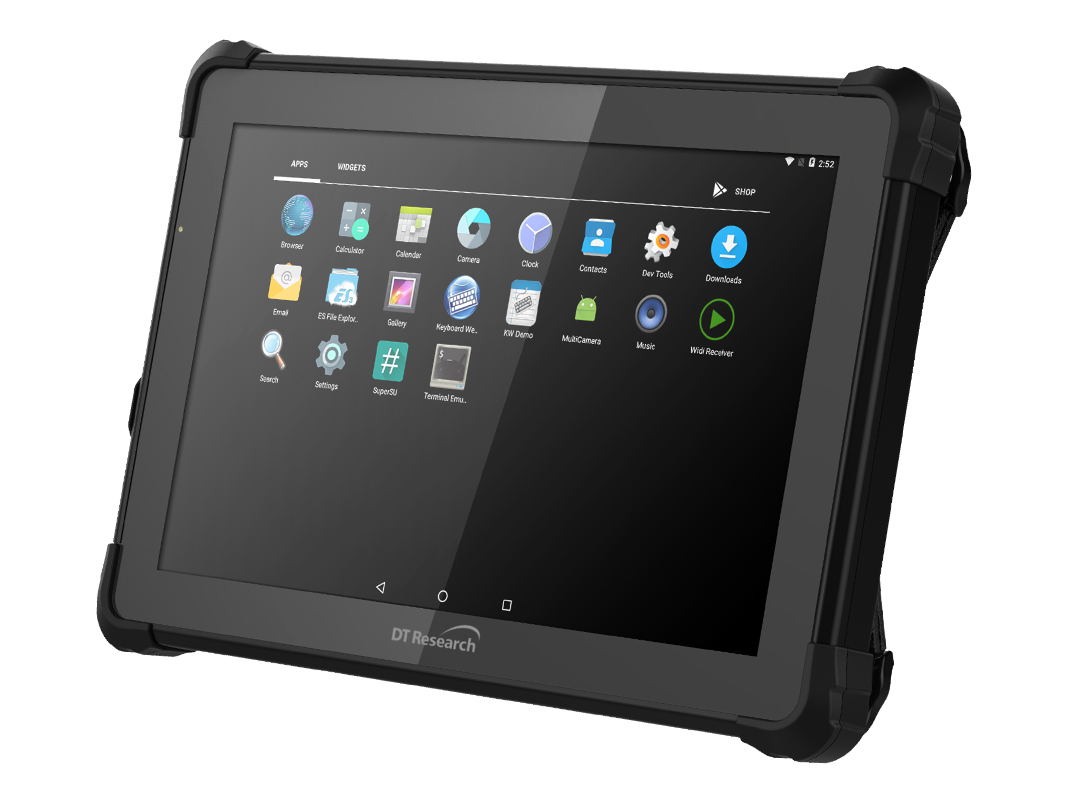

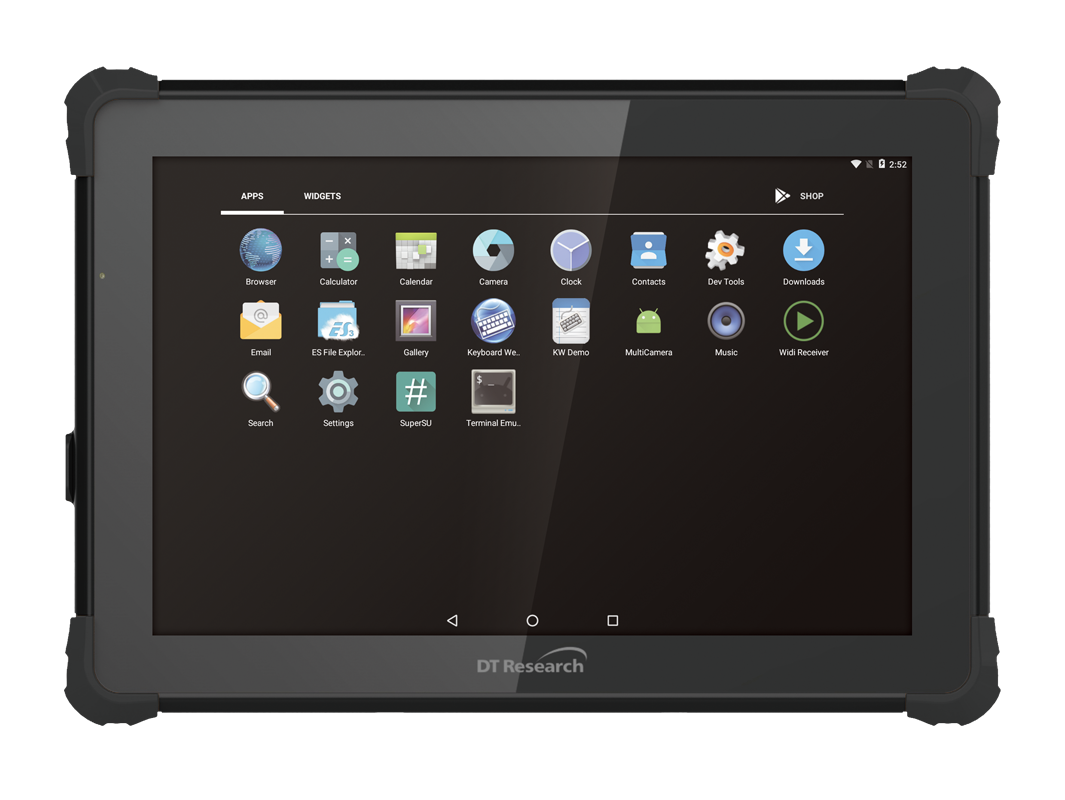

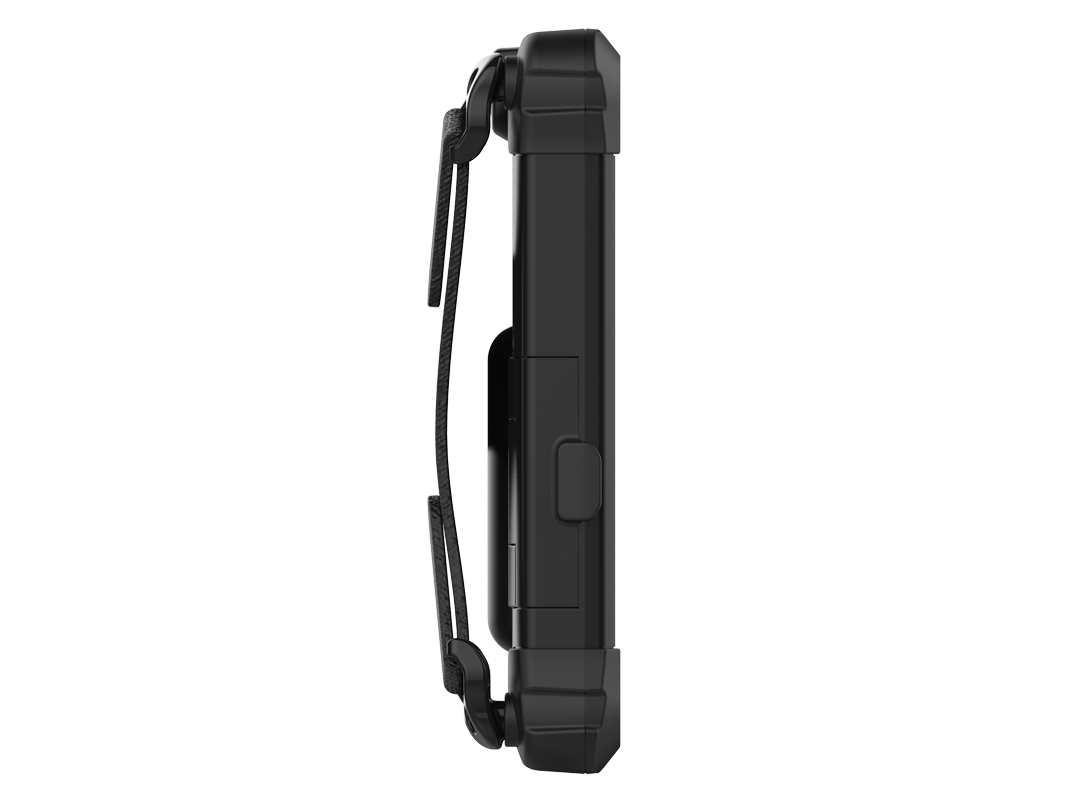

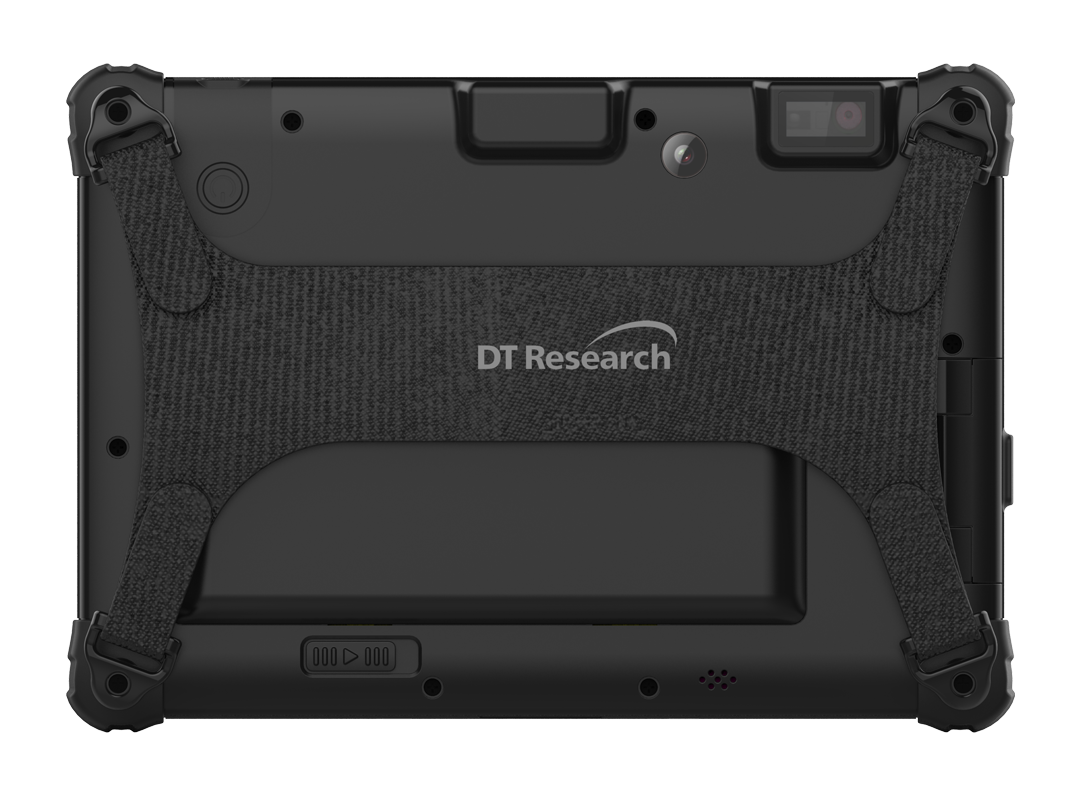

380Q RUGGED TABLET

Slim, Rugged, Multi-functional Wireless Computing

The DT Research 380Q rugged tablet features the integration of a brilliant 8" capacitive touchscreen, Android operating system, and A high performance yet energy-efficient processor within a slim, lightweight, and durable packages. With Wi-Fi and integrated data capture options, this robust tablet offers seamless information capture and transmission for improved workflow. With IP65, MIL-STD- 810G certification, the 380Q Tablet provides reliable operation in harsh, mission critical environments.

Product Configurator

Features

8” high-brightness capacitive screens (850 nits)
Qualcomm octa-core processor
Android operating system
Built-in back camera
IP65-rated for water and dust resistance
MIL-STD-810G for shock and vibration protection

Major Options

Barcode scanner
GPS
4G LTE/AWS

Specifications

System

CPU

Qualcomm Octa-Core, 2.0GHz
RAM

4GB
Storage

64GB flash
Operating System

Android 9.0 and 10
Display

8” LED-backlight, high-brightness (850 nits) screen with capacitive touch, outdoor viewable
Display Resolution

1920 x 1200
WLAN

Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band
Control Switch and Buttons

1 power button, 1 trigger button
Speaker

Built-in speaker
Camera

8 megapixel back camera with auto focus, white balance, gain control, and exposure control

I/O PORTS

USB Port

1 (USB 3.0)
Audio Jack

1 (3.5mm)
DC-in

1
SD Slot

1 micro SD card slot

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 – 240V AC; Output: 12V DC, 5A
Battery Pack

Hot swappable battery, 3.7V, 8800mAh
Enclosure

ABS + PC plastics and magnesium-aluminum alloy
Dimensions (H x W x D)

5.7 x 8.3 x 0.8 in/ 145.4 x 210 x 20.4 mm
Weight

1.99 lbs/ 900 g
Durability

IP65, MIL-STD-810G
Regulatory

FCC Class B, CE, RoHS compliant
Temperature

Operation: 0°C to 50°C (32°F to 122°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity

0% – 90% non-condensing

MAJOR OPTIONS SPECS

BARCODE SCANNER

2D barcode scanner; reads 1D also
GPS

Yes
MOBILE BROADBAND

4G LTE/AWS

Accessories

Desktop Charging Cradle

Docking support with ports for Power, USB, HDMI outputs and Ethernet.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Battery Gang Charger

Simultaneously charge 4 external batteries.

AC/DC Power Adapter with Power Cord

Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).
