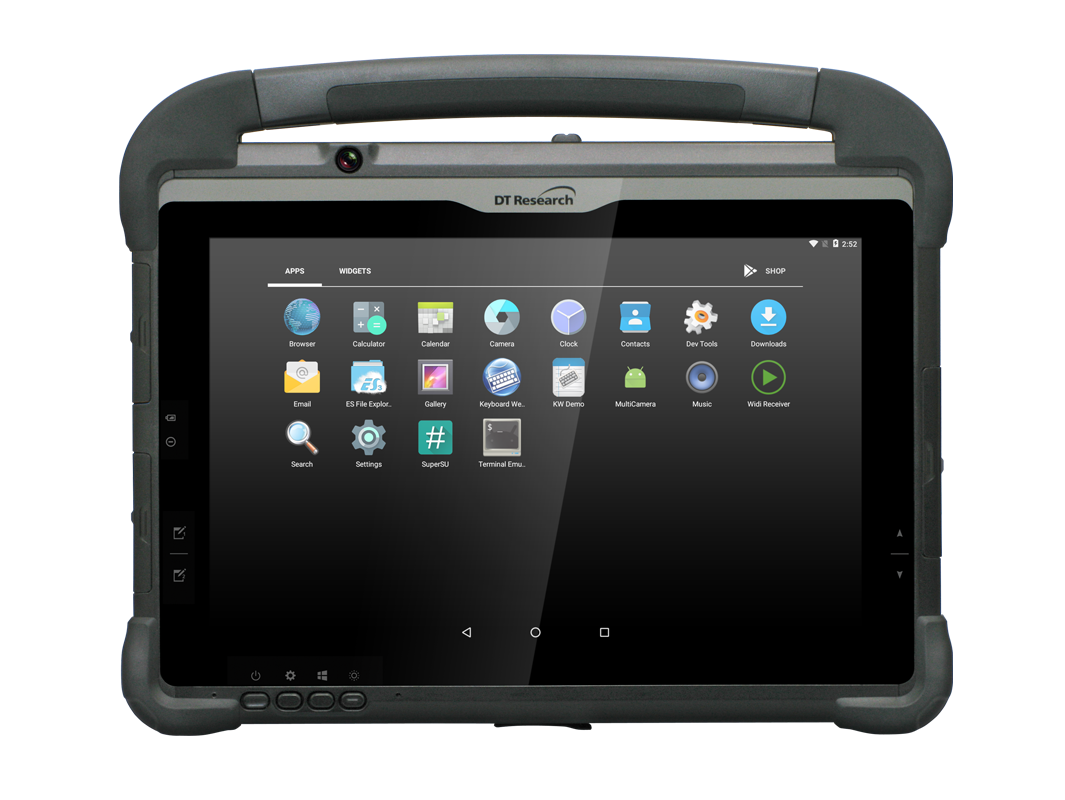

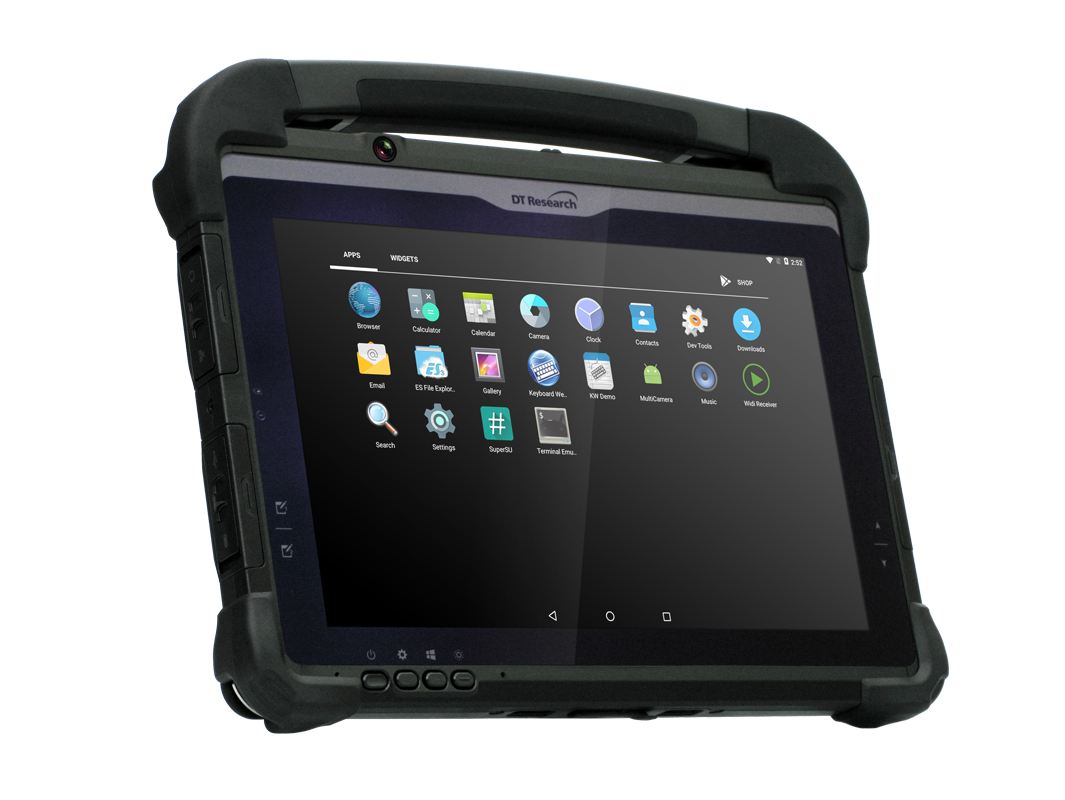

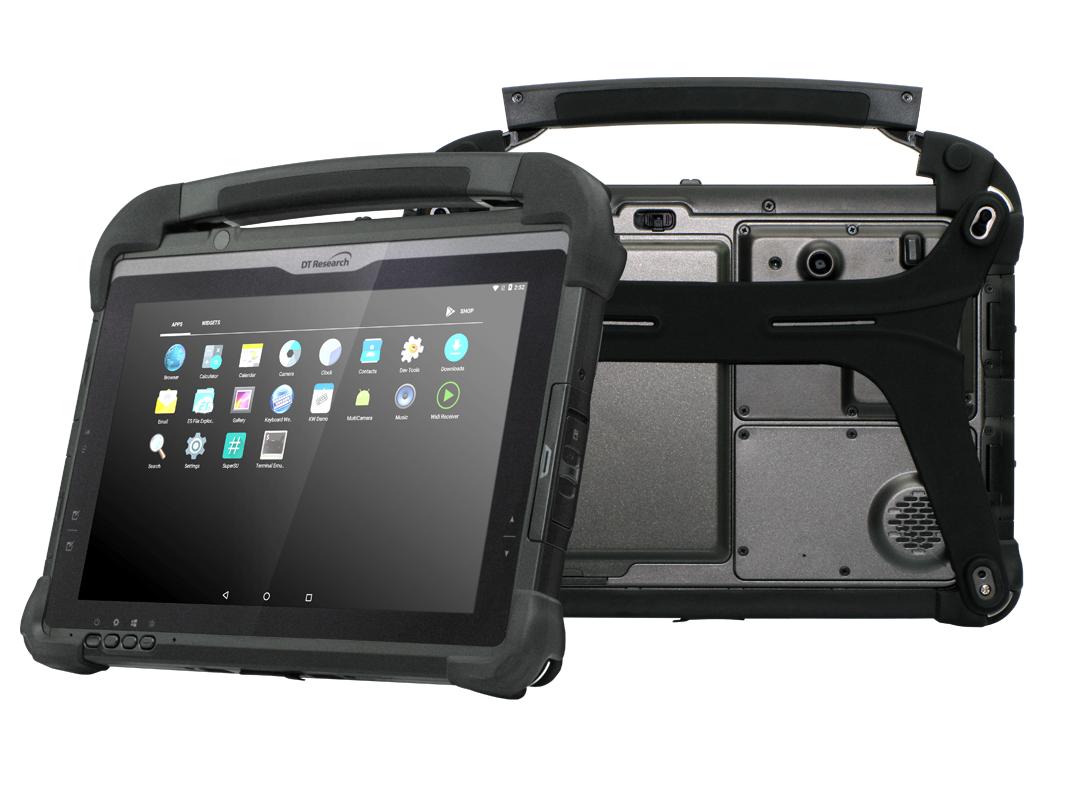

301Q RUGGED TABLET

Slim, Rugged, Multi-functional Wireless Computing

The 301Q Rugged Tablet features the integration of a high brightness 10.1”capacitive touch screen,Android operating system,and a high performance yetenergy-efficient octa-core processor within a slim, lightweight, durable package. With a built-in back camera and Wi-Fi, as well as options for front camera, barcode scanner and GPS, this rugged tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810G and HERO certified with wide temperature range, the 301Q Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Product Configurator

Features

10.1" Full-HD capacitive touch screen, 800 nits, digital pen support
Qualcomm octa-core processor
Android operating system
High capacity, hot-swappable battery pack
Built-in back camera
IP65 rated and MIL-STD-810G certified
HERO (Hazard of Electromagnetic Radiation to Ordnance) certified

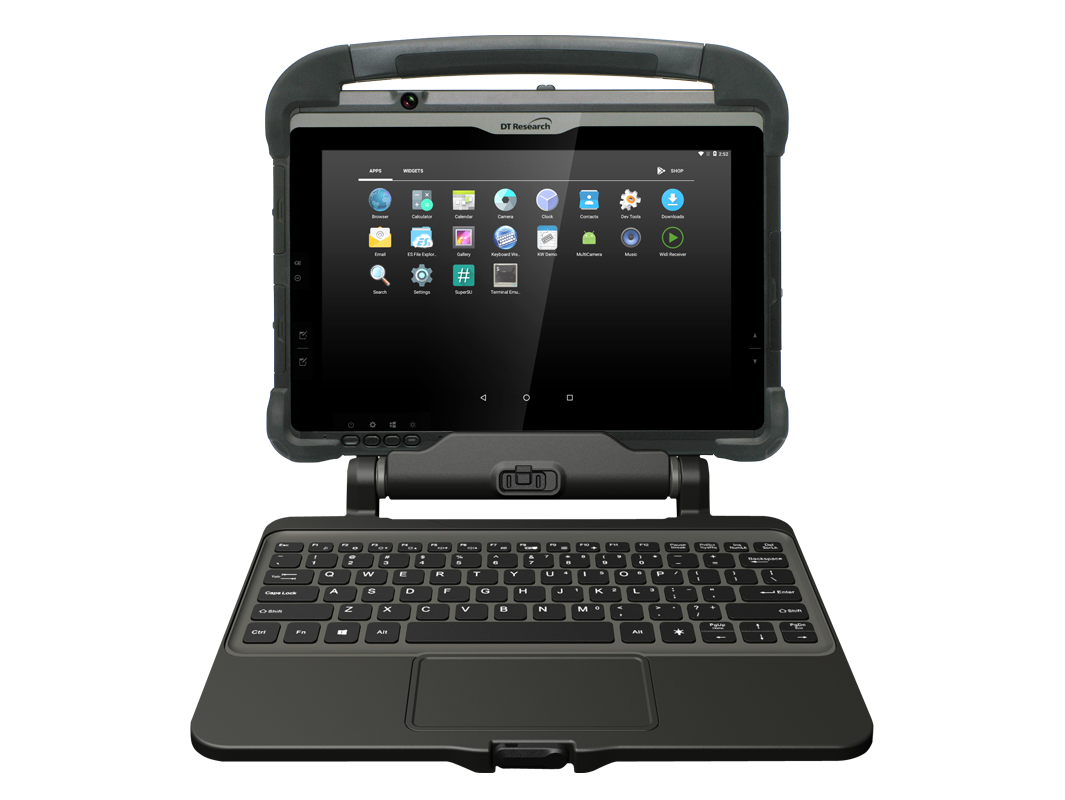

Detachable keyboard option for 2-in-1 applications

Major Options

Front camera
2D barcode scanner; reads 1D also
NFC/RFID reader
GPS
4G LTE/AWS

Specifications

System

CPU

Qualcomm Octa-Core, 2.0GHz
RAM

4GB
Storage

64GB flash
Operating System

Android 9.0 and 10
Display

10.1” LED-backlight, high-brightness (800 nits) screen with capacitive touch, outdoor viewable
Display Resolution

1920 x 1200
WLAN

Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band
Control Switch and Buttons

1 power button, 2 brightness control buttons, 5 programmable buttons
Microphone

Built-in microphone
Speaker

Built-in speaker
Back Camera

8 megapixel back camera

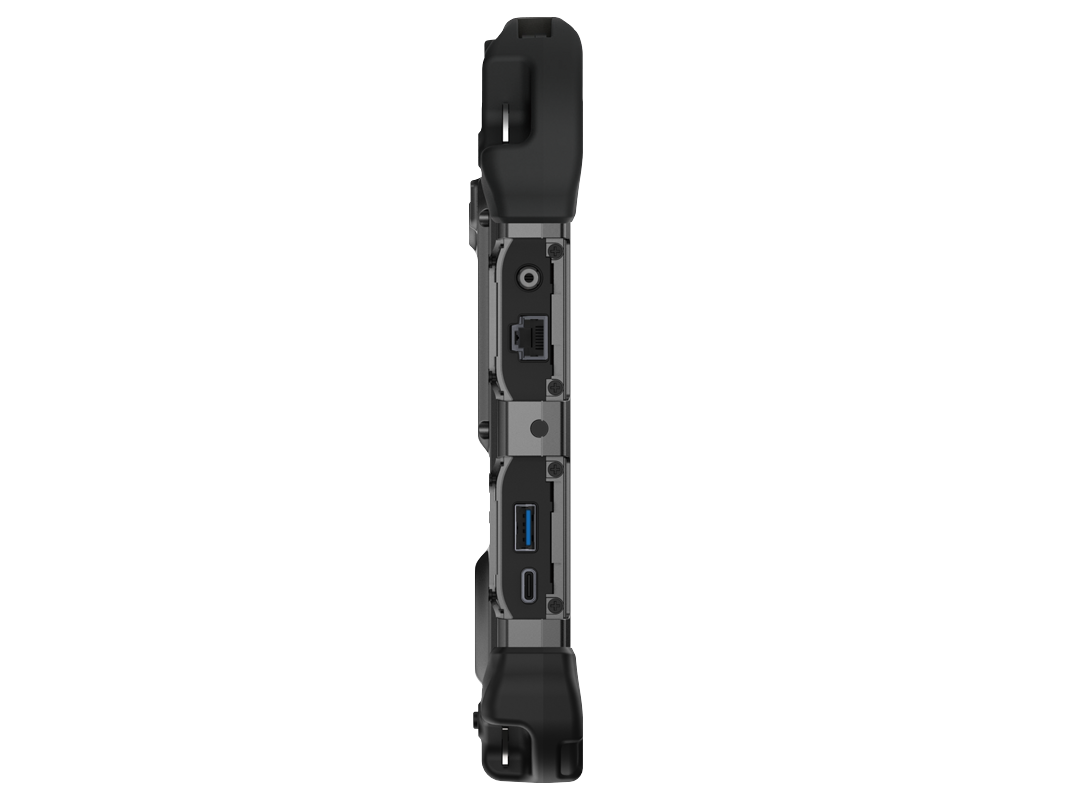

I/O PORTS

USB Port

USB 3.0 x 1, USB Type C x 1
Headset Jack

1 (3.5mm)

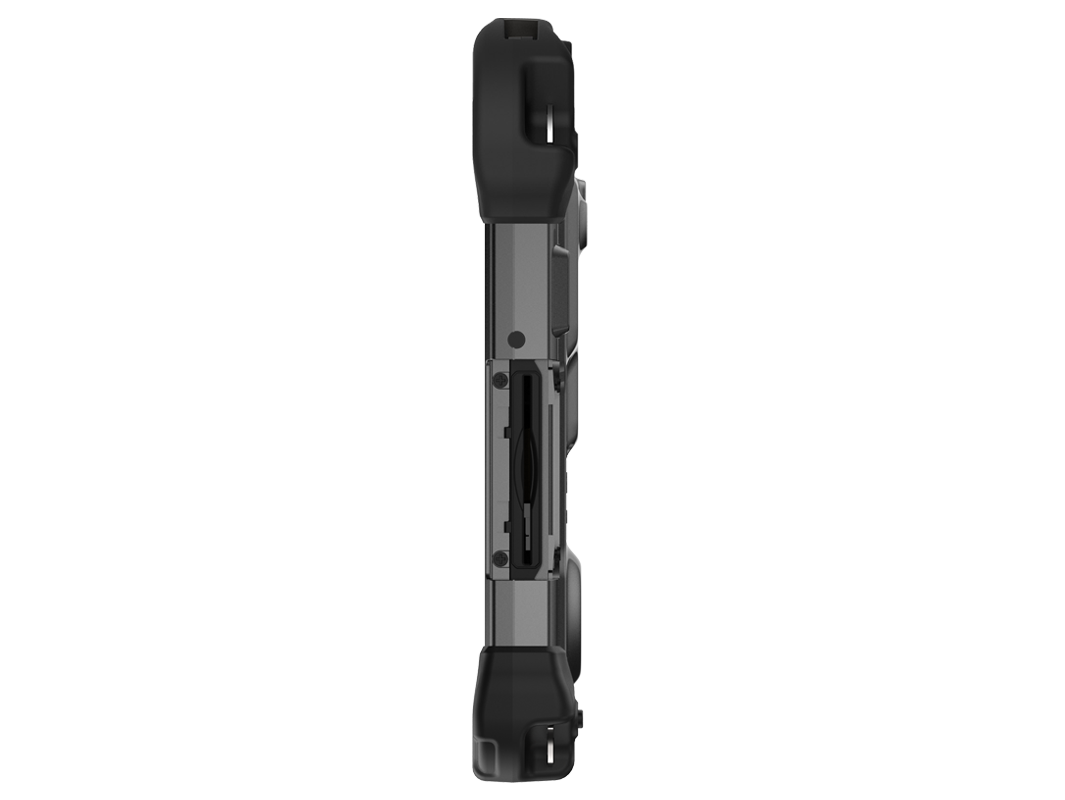

SD Slot

1 micro SD card slot
Ethernet

Ethernet 10/ 100/ 1000MB Base-T LAN
DC-in

1

MECHANICAL AND ENVIRONMENTAL

AC/DC Adapter

Input: 100 – 240V AC; Output: 20V DC, 3.25A
Battery Pack

Hot swappable battery, 7.6V, 6000mAh
Enclosure

ABS + PC plastics and magnesium-aluminum alloy
Dimensions (H x W x D)

7.8 x 11 x 0.86 in/ 198 x 280 x 21.9 mm
Weight

3.1 lbs/ 1.4 kg
Durability

IP65 and MIL-STD-810G certified
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing

Yes
Regulatory

FCC Class B, CE, RoHS compliant
Temperature

Operation: -10°C to 60°C (14°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity

0% – 90% non-condensing

MAJOR OPTIONS SPECS

BARCODE SCANNER

2D barcode scanner; reads 1D also
FRONT CAMERA

2 megapixel front camera
NFC/RFID READER

HF 13.56MHz, ISO standard 15693, 14443A(B) & 18000-3 mode-1
GPS

Yes
MOBILE BROADBAND

4G LTE/AWS

Accessories

Docking Keyboard

With power and I/O ports; instantly pairs, ideal for 2-in-1 applications.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Digital Pen

Dimensions: 9.7mm x 140.7mm; Weight: <25g; Battery: 1 AAAA.

Tablet Mount Cradle

Offers Tablet storage and security with power supply and I/O ports.

Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack "offline" without affecting tablet use.

AC/DC Power Adapter with Power Cord

Facilitates Tablet operation or battery recharge. USB Type-C connector.

Pole Mount Cradle

Provides secure placement of the Rugged Tablet on VESA-compliant stands, brackets, and arms.

Keyboard Mounting Kit for Vehicle/Wall Mount Cradle

Includes ACC-008-50T and DTR packaging. Designed to be attached with the Wall/Vehicle Mount Cradle. The Keyboard Mounting Kit can be folded up when not in use.

10.1”/11.6”/13.3” Screen Protector

User-replaceable film screen protector to protect the display from scratches and repeated use. Comes with microfiber cleaning cloth and dust-absorber to make the applying process an easy task.
